► Add engine oil,   6.2.

► Fold up and adjust the handlebar,   8.1.

► Refuel the lawn mower,   7.1.

► Set the cutting height,   11.2.

► Check the controls,   10.1.

► If the steps cannot be performed: do not use

the lawn mower and consult a STIHL special‐

ist dealer.

6

Assembling the Lawn

Mower

6.1

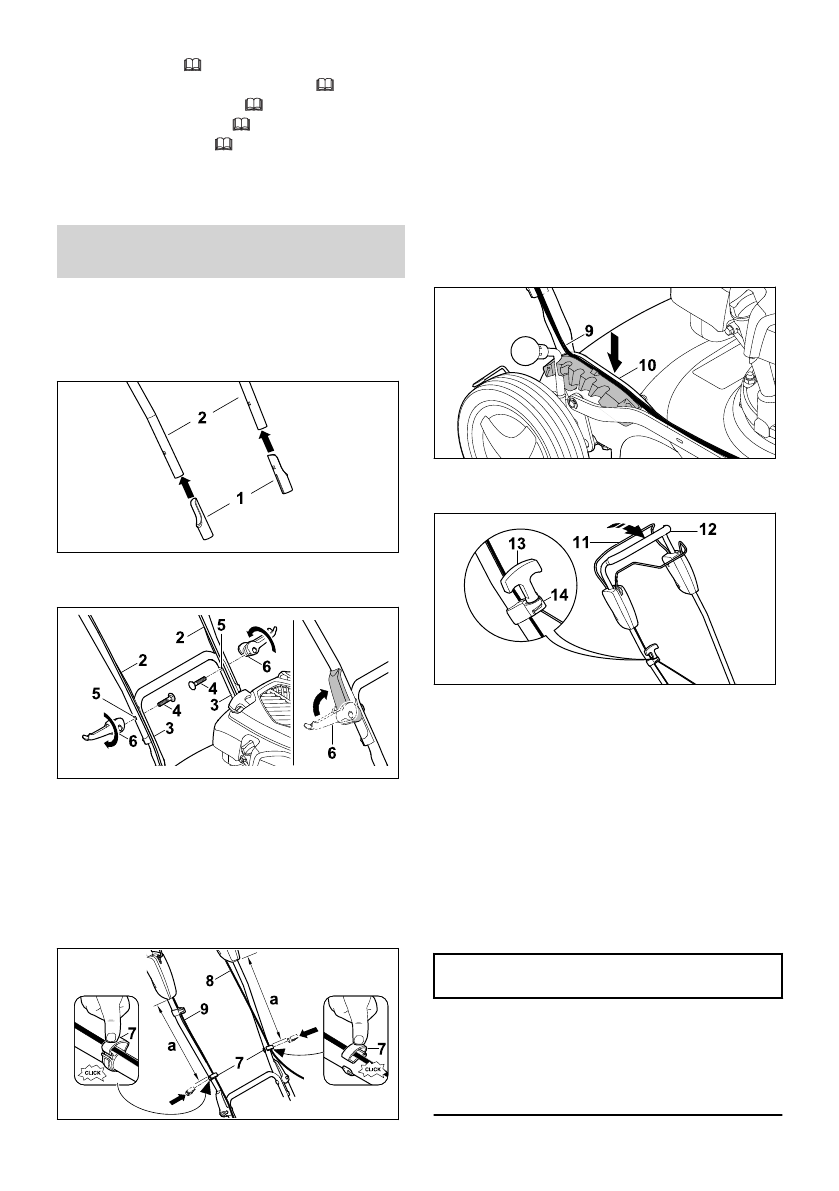

Attaching the Handlebar

► Stop the engine.

► Detach the spark plug socket.

► Place the lawn mower on a level surface.

► Fit protective sleeves (1) onto upper handle‐

bar (2) with the long side facing inwards.

► Hold upper handlebar (2) against lower han‐

dlebar (3) so the bores align.

► Push bolts (4) through bores (5) from the

inside to the outside.

► Screw in quick-clamping devices (6) at

bolts (4) and fold upwards so quick-clamping

devices (6) are pressed tightly against the

handlebar.

► Press cable clips (7) onto the upper handle‐

bar.

► Insert cables (8 + 9) in cable clips (7).

► Close cable clips (7) and allow the tab to

engage.

► Fasten motorstop cable (8) to the upper han‐

dlebar on the left using cable clip (7), main‐

taining the distance a = 42 - 44 cm.

► Fasten self-propulsion cable (9) to the upper

handlebar on the right using cable clip (7),

maintaining the distance a = 42 - 44 cm.

► Press self-propulsion cable (9) into guide (10)

on the detent segment.

► Press control bar for mowing (11) to handle‐

bar (12) and hold.

► Slowly pull starter handle (13) in the direction

of starter rope guide (14).

► Hook starter handle (13) into starter rope

guide (14).

► Release control bar for mowing (11).

► Re-attach the spark plug socket.

6.2

Adding Engine Oil

The engine oil lubricates and cools the engine.
The engine oil specification and capacity can be

found in the engine instruction manual.

NOTICE

■ The lawn mower does not contain any engine

oil on delivery. Starting the engine with no or

too little engine oil may damage the lawn

mower.

► Always check the engine oil level before

starting and if necessary top up.
