2 - 12

      A S S E M B L Y   A N D   C O N N E C T I O N S

1

Place the two-line TAD and the two-line telephone next to your FAX/MFC.

2

Plug one end of the telephone line cord for your FAX/MFC into the L2 jack of
the triplex adapter. Plug the other end into the LINE jack on the left side of the
FAX/MFC.

3

Plug one end of the first telephone line cord for your TAD into the L1 jack of
the triplex adapter. Plug the other end into the L1 or L1/L2 jack of the two-line
TAD.

4

Plug one end of the second telephone line cord for your TAD into the L2 jack
of the two-line TAD. Plug the other end into the EXT. jack on the left side of
the FAX/MFC.

You can keep two-line telephones on other wall outlets as always. There are two
ways to add a two-line telephone to the FAX/MFC’s wall outlet. You can plug
the telephone line cord from the two-line telephone into the L1+L2 jack of the
triplex adapter.  Or, you can plug the two-line telephone into the TEL jack of the
two-line TAD.

Multi-Line Connections (PBX)

Most offices use a central telephone system. While it is often relatively simple
to connect the FAX/MFC to a key system or a PBX (Private Branch Exchange),
we suggest that you contact the company that installed your telephone system
and ask them to connect the FAX/MFC for you. It is advisable to have a separate
line for the FAX/MFC. You can then leave the FAX/MFC in FAX mode to
receive faxes any time of day or night.

If the FAX/MFC is to be connected to a multi-line system, ask your installer to
connect the unit to the last line on the system. This prevents the unit from being
activated each time a telephone call is received. (See

Easy Receive

, page 5-3.)

As with all fax units, this machine must be connected to a two wire system. If
your line has more than two wires, proper connection of the FAX/MFC cannot
be made.

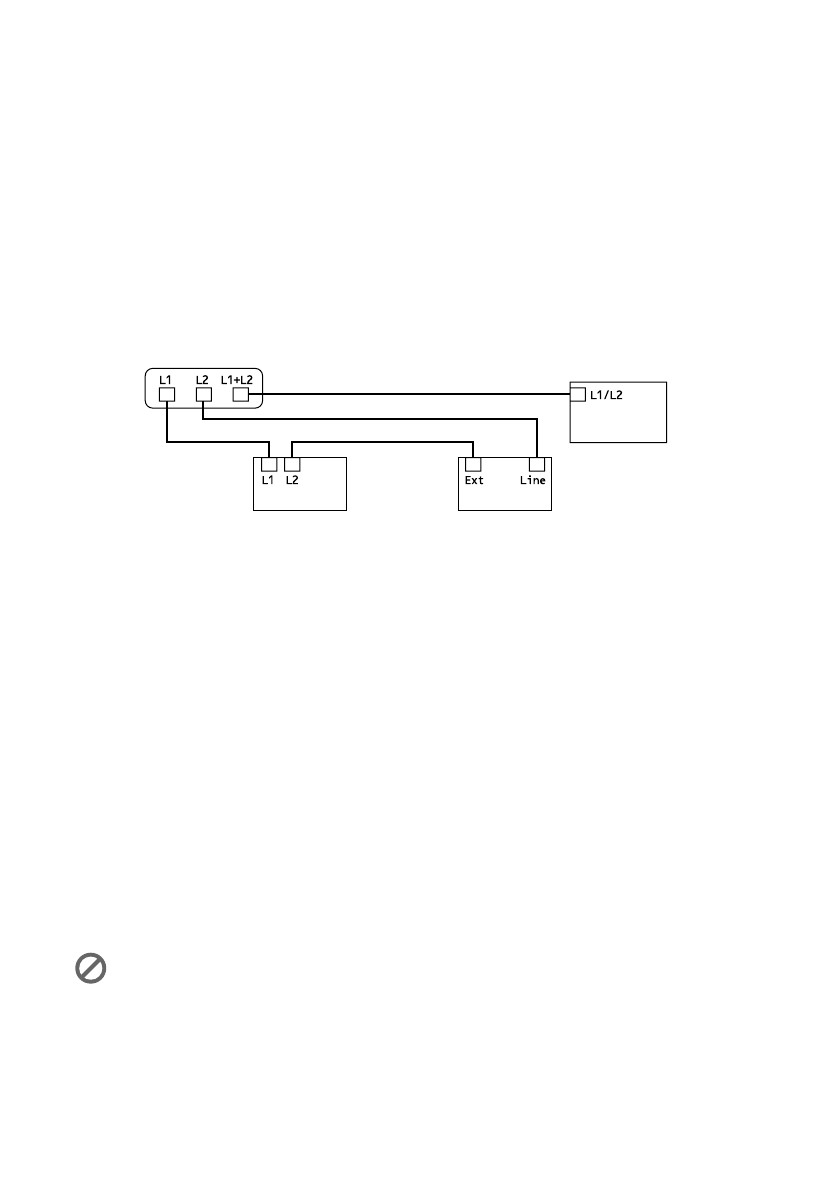

Triplex Adapter

Two-Line Phone

Two-Line External TAD

FAX/MFC
