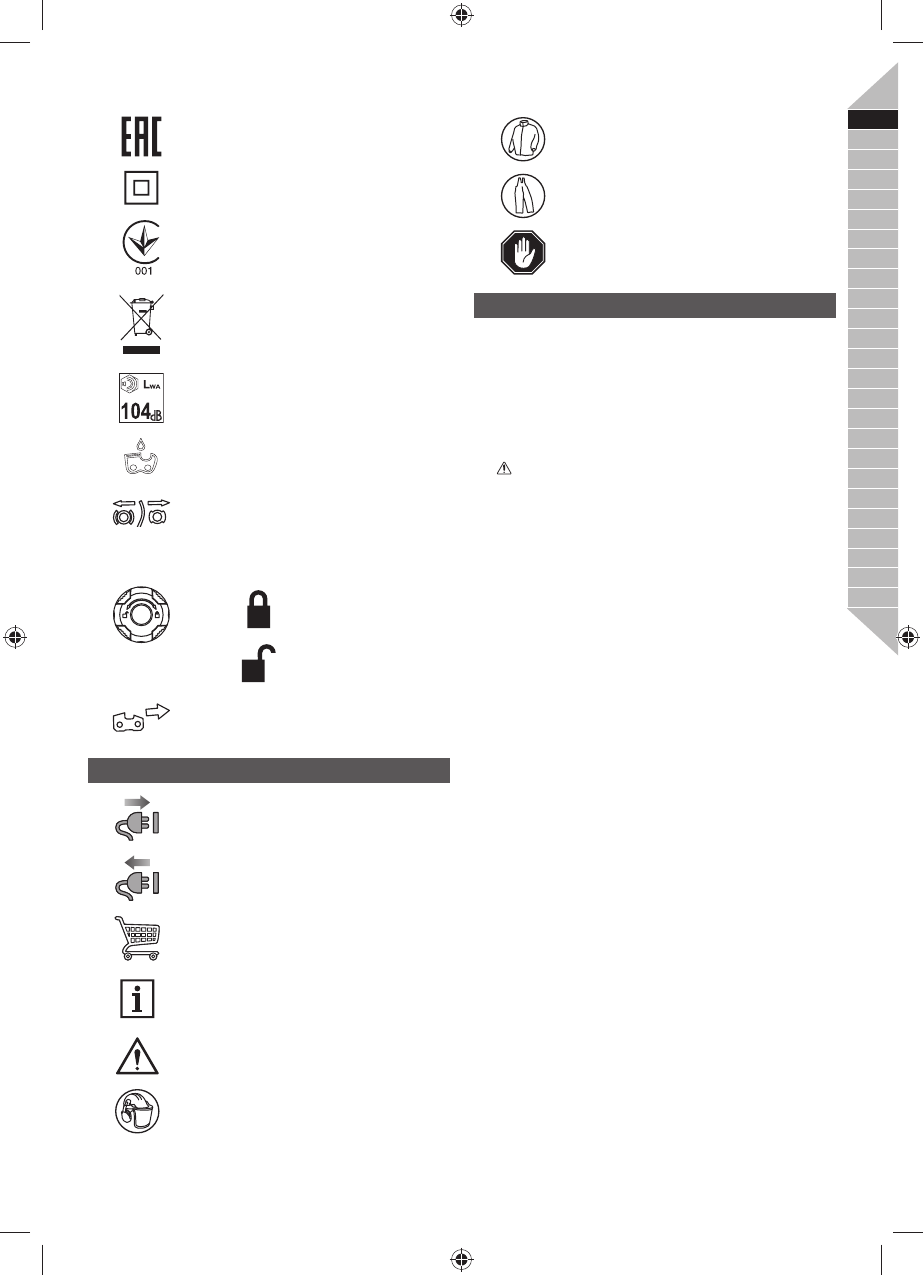

EurAsian Conformity Mark

Class II tool, double insulation

Ukrainian mark of conformity

Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.

Guaranteed sound power level

Bar and chain lubricant

Chain brake

Rotate to lock or unlock the guide bar.

Lock

Unlock

Moving direction of the chain
(Marked under the sprocket cover)

SYMBOLS IN THIS MANUAL

Connect to power outlet.

Disconnect from power outlet.

Parts or accessories sold separately

Note

Warning

Wear eye and face protection.

Wear upper body protection.

Wear leg protection.

Stop the product.

GETTING STARTED

See page 213.

1.  Wear Personal Protective Equipment (PPE).

Wear full eye protection, ear protection, non-slip heavy-
duty gloves, substantial footwear, and protective clothing
at all times while operating the product. Do not operate the
product when barefoot or wearing open sandals.

2.  Remove the parts from the packaging. Assemble the

product.

WARNING!

 If any parts are damaged or missing, do not

operate the product until the parts are replaced. Failure to
heed this warning could result in serious personal injury.
Place the chain drive links into the bar groove. Position the
chain so that there is a loop at the back of the bar.
The saw chain should face in the direction of chain
rotation. If the chain faces backwards, turn the loop over.

3.  Loosen the guide bar locking knob, and remove the

sprocket cover.

4.  Hold the chain in position on the bar, and place the loop

around the drive sprocket. Lower the bar so that the
bolt goes through the hole in the attached chain tension
assembly.

5.  Replace the sprocket cover, and then tighten the chain

tension / guide bar locking knob by turning it clockwise
until it locks into place. Check the chain tension
frequently.
The chain tension is correct when the gap between
the cutter in the chain and the bar is between 3 and 4
mm. Pull the chain in the middle of the lower side of the
bar downwards (away from the bar), and measure the
distance between the bar and the chain cutters.

NOTE:

 The temperature of the chain increases during

normal operation, causing the chain to stretch. Check
the chain tension frequently and adjust as required. A
chain that is tensioned while warm may be too tight upon
cooling. Make sure that the chain tension is correctly
adjusted as specified in these instructions.

6.  Tighten and lock the guide bar locking knob by turning

it clockwise.

NOTE:

 Make sure that the bar and chain tensioning

assembly is moving freely without dirt and the saw chain is
correctly looped around the sprocket. If the chain tension is
too tight or too loose after locking the chain tension knob,
check if the guide bar and chain tensioning assembly are
clean and properly assembled.
If necessary, remove the sprocket cover and guide bar for
cleaning, then reassemble the parts.

7.  Add chain lubricating oil.

Use only RYOBI chainsaw lubricating oil from an
authorised service centre.
