30

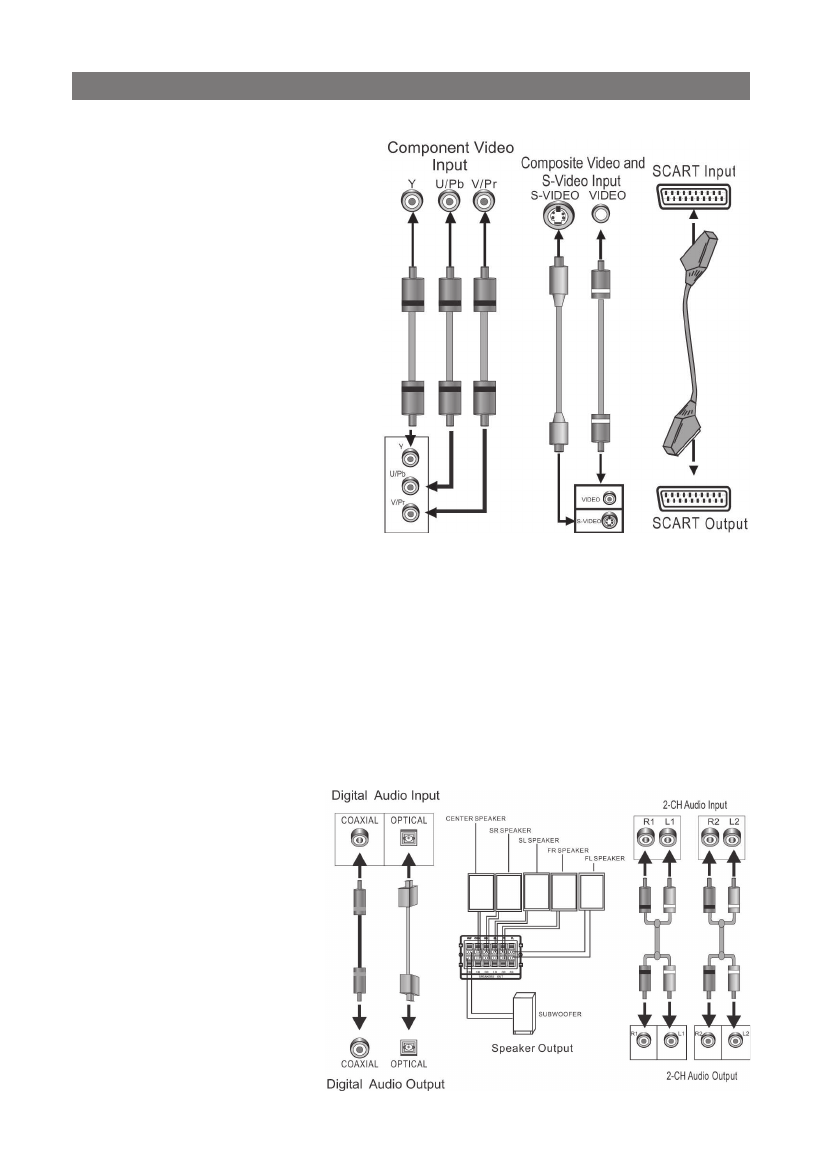

VIdEO SYSTEM CONNECTION

The following available video

outputforthisunit.

Composite Video

Use the AV cable (yellow

terminal)toconnectcomposite

video output of this unit to the

TV/monitorvideoinput

S-Video

Use the S-video cable to

connect the S-video output

ofthisunittotheTV/monitorS-

videoinput

Component Video (YUV)

Use 3-core AV cable to

connect

the

component

output terminals of this unit to

the corresponding TV/monitor

input

SCART

Usea21_pinSCARTcabletoconnecttheSCARToutputtotheTV/monitor

SCARTinputterminal.

Notes:

• WhichconnectiondependsontheTV/monitorinputterminal.

• Don’t use the all connections at one time, otherwise the picture will be

affected.

• Only the physical connection conforms to the video setting can produce

thenormalpicture(referencetotheVideoSetupinSystemSetup).

AUdIO CONNECTION SYSTEM

Twotypesofaudiooutputsystems:analogaudioanddigitalaudio.Digital

audioincludesopticalandcoaxialoutput.Thedigitalaudiooutputisbet

-

terthantheanalog.

Stereo Audio

Use a pair of AV cable

(red for right /white for

left)toconnecttheste

-

reo audio output of this

unittotheTVorastereo

input of power ampli

-

ier.

Coaxial digital Audio

Use the special coaxial

cable to connect the

coaxial output of this

unit to the coaxial input

CONNECTION
