Connecting the components and the
subwoofer to the AC power

After you complete a subwoofer connection, plug
the amplifier, TV and/or other audio/video
components, and the subwoofer into an AC outlet
of appropriate voltage.

VOLTAGE SELECTOR

(For Asia and General models only)
The voltage selector switch on the bottom panel of this
unit must be set for your local main voltage BEFORE
plugging this unit into the AC main supply.
Voltages are 110–120/220–240 V AC, 50/60 Hz.

The system connection

This unit has a SYSTEM CONNECTOR jack.
Use the supplied system control cable when
connecting a Yamaha component equipped
with a system connector jack. When
connected, the power mode (

ON

,

OFF/

SYSTEM

) of this unit can be controlled with

the power button of the connected Yamaha
component.

Notes

• Set the

POWER

 button of this unit to

OFF/

SYSTEM

. The power of this unit can be turned

on even when the

POWER

 button is set to

OFF/SYSTEM

.

• When the

POWER

 button of this unit is set to

ON

, the connected component will not control

the power mode of this unit, even though they
are connected via a system connection. The
power mode of this unit will always be

ON

.

• When this unit does not output low frequency

signals even if you use the system connection,
you need to change the setting of the connected
component. For details, refer to the manual of
the component.

SYSTEM

CONNECTOR

INPUT

INPUT

SYSTEM

CONNECTOR

SYSTEM

CONNECTOR

SYSTEM

CONNECTOR

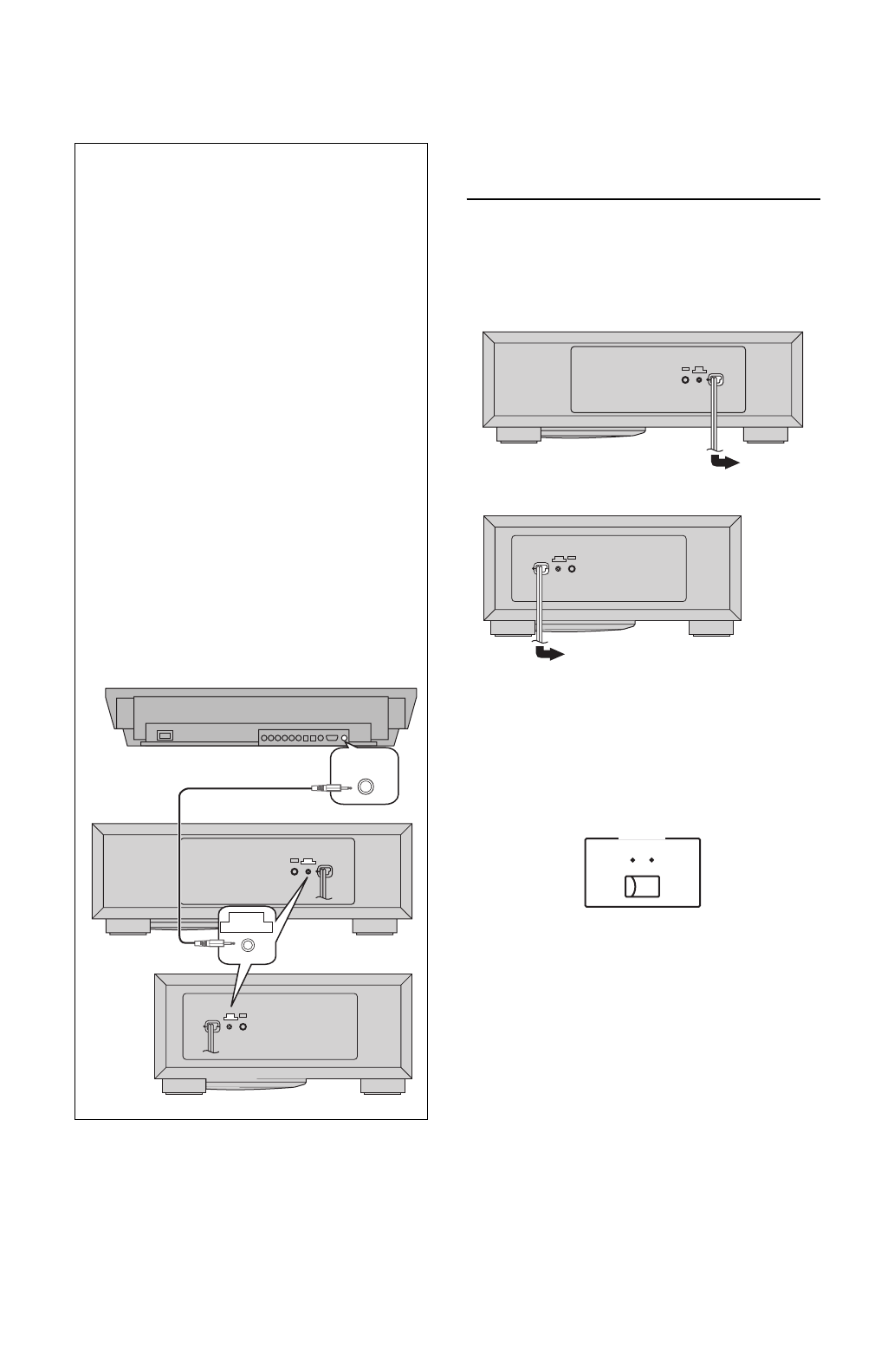

Yamaha Digital Sound Projector (example)

YST-FSW150 rear panel

YST-FSW050 rear panel

INPUT

SYSTEM

CONNECTOR

SYSTEM

CONNECTOR

INPUT

To AC outlet

To AC outlet

YST-FSW150 rear panel

YST-FSW050 rear panel

VOLTAGE

SELECTOR

220V-240V

110V-120V
