2.1 Multimedia Speaker System

16

g

 Input on the wired RC

h

Headphone input

i

Microphone input

j

 Signal cable

k

 Microphone cable (black)

l

Volume control knob

5. PREPARATION AND OPERATION

Speaker placement

•

 Place the satellites symmetrically to the listener at the distance not

less than one meter.

•

 Place  MSS  far  away  from  monitors  and  TV  sets,  as  insignificant

image  distortion  in  these  super-sensitive  devices  is  possible.  We

recommend that the subwoofer should be placed on the table.

Installation and operation guide

Warning! All components should be switched off before connection.

•

Connect mini-jack of the wired RC to PC sound input second mini-jack to the microphone input.

•

Connect  two  RCA-jacks  the  AUDIO  INPUTS  of  the  subwoofer.  Insert  mini-jack  of  the  signal  cable  to

the input on the wired RC.

•

Plug power cord to the power socket.

•

Adjust volume control knobs to he minimal position and switch on the power button on the subwoofer.

•

Adjust the volume and bass level.

You can also connect any sound source (MP3 etc.) with mini-jack output to your sound system.

You  can  connect  mini-jack  of  the  signal  cable  directly  to  your  sound  source  (PC  etc.)  without

wired RC. Also, you can connect headphones and microphone (headset) to your wired RC.

Fig. 2. Wired Remote Control

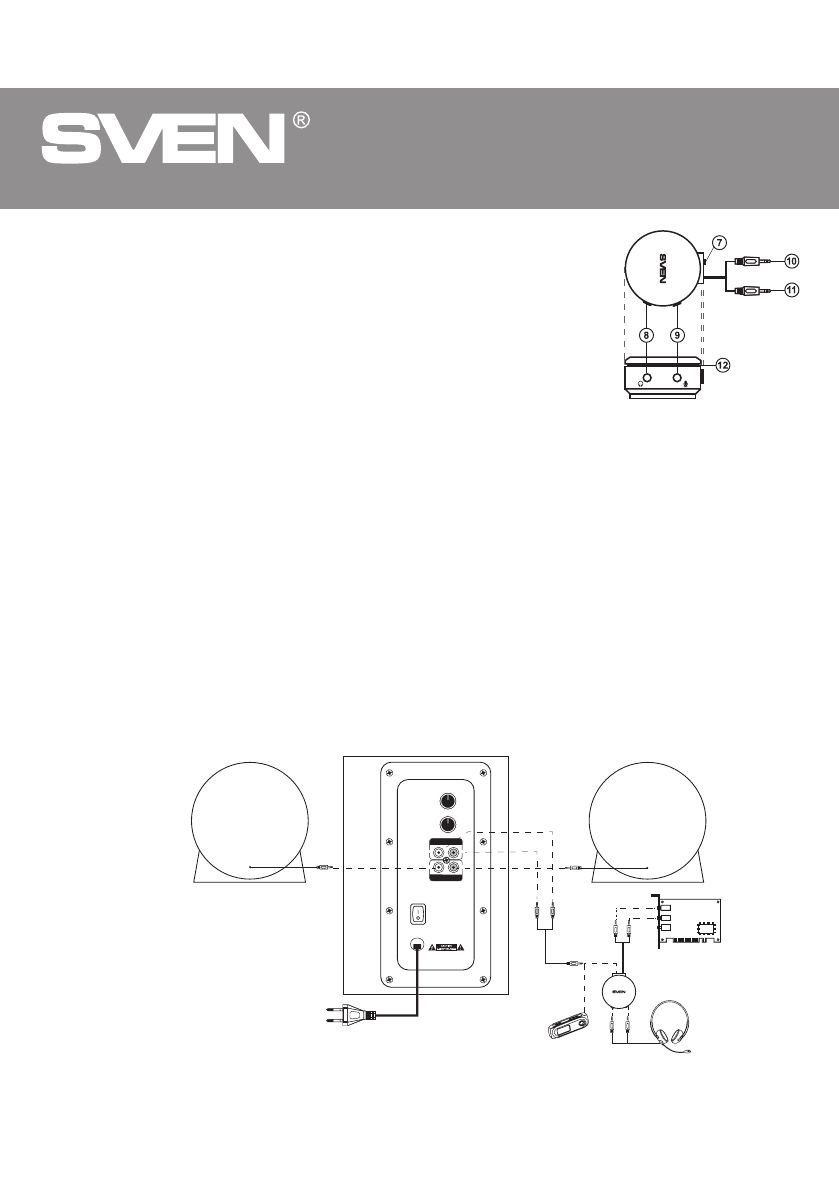

Fig. 3. Connection diagram

Line in

Line out
Mic

ON

OFF

L

R

L

R

AUDIO OUTPUT

-

+

-

+

VOL

BASS

POWER

220V ~50 Hz
