Operation Manual
MS-2100
CD
PC
DVD
Player
FM
ANT
Right
speaker
FM antenna
2RCA to 2RCA
signal cable
2RCA to mini-jack
signal cable
A UX
PC
R
R
L
L
OFF
ON
Left
speaker
USB/SD-card
connection
CD player
AU
D
IO
OU
T
P
U
T
R A DIO A NT
A
U
DI
O
IN
P
UT
R
L
POWER SWITCH

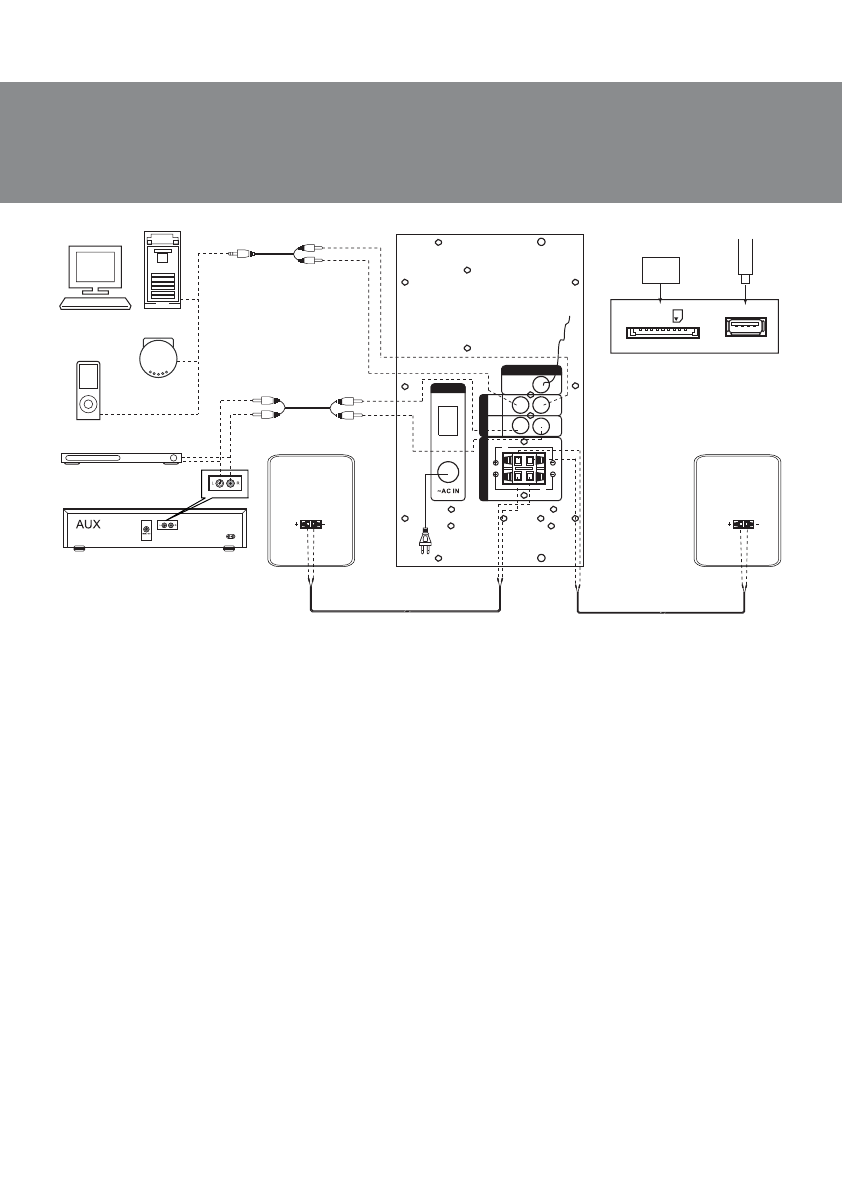

Fig. 4. Connection diagram
SD/MMC
CARD
USB
USB
SD
speaker – to the AUDIO OUTPUT L. Pay attention that the plus (red) cable wires of speakers must be
connected to the subwoofer plus terminals (+
→
+) and the minus (black) cable wires of speakers – to the
subwoofer minus terminals (–
→
–) (see connection diagram in Fig. 4).
Note. Check the reliable
fi
xation of wires in the terminals, polarity of connection and ab-
sence of contact of the bared wires with each other and the metal parts of the hardware.
•
To connect the MSS to a PC,
МР
3/CD player, use a 2RCA to mini-jack signal cable (included).
Connect the RCA jacks of the signal cable to the L and R jacks of the PC AUDIO INPUT
l
, and the
mini-jack (Ø 3.5 mm) of the signal cable – to the LINE OUT port of your PC sound card or to the
audio output (OUTPUT) of your
МР
3/ CD player, as shown in Fig. 4.
•
To connect the MSS to a TV or DVD/CD player, use the 2RCA to 2RCA signal cable (not included).
Connect the RCA jacks of the signal cable to the L and R jacks of the AUX AUDIO INPUT
m
, and the
other RCA jacks – to your TV or DVD/CD player audio output jacks, as shown in Fig. 4.
•
Connect the subwoofer to the mains outlet with the power cord
j
.
•
Turn on the MSS power supply using the ON/OFF switch (
i
, ON) on the subwoofer rear panel.
•
Turn on the MSS using VOLUME knob
h
on the front panel or button
q
on the remote control.
•
Select a desired signal source pressing short the
INPUT button
h
on the control panel or pressing
the
INPUT button
a
on the remote control.
•
Adjust the master volume as desired with VOLUME knob
h
on the control panel or with the
VOL+/- buttons
k
on the remote control.
