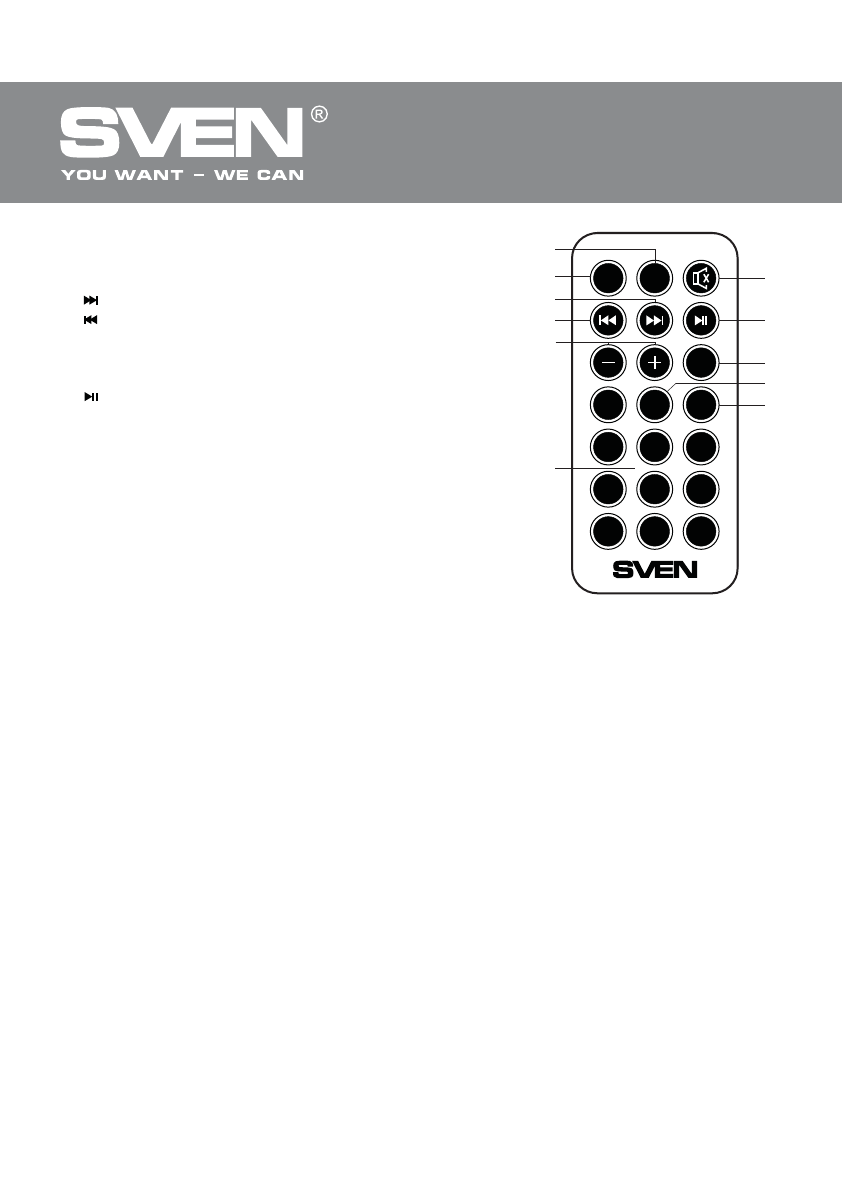

Remote control

a

 FOLDER DOWN: move to next folder

b

 FOLDER UP: move to previous folder

c

      : next track (in the Player mode)

d

      : previous track (in the Player mode)

e

 -/+: volume control buttons

f

 0-9: numeric buttons for entering a track number

g

 MUTE: MUTE button

h

      : play/pause (in the Player mode)

i

 EQ: equalizer mode selection button (in the

МР

3 player mode

only)

j

 MODE: AUDIO INPUT or  USB/SD source selection

k

 USB/SD: selection between USB

fl

ash and SD card

Notes:

• Before operating the remote control, extract the bat-

tery, remove the

fi

lm protecting the battery from dis-

charge during transportation, and insert the battery back

into the remote control.

• Use the remote control at an angle no more than 30 deg-

rees, no more than 7 meters away from the IR receiver.

• Direct the remote control at the IR receiver display on the subwoofer.

• If the remote control is not working, check the battery and replace the discharged bat-

tery with a new one.

• Remove the battery from the remote control if the device is left unused for a long period

of time (more than a week).

5. PREPARATION AND OPERATION

Speaker placement

•

 Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits

non-directional sound, therefore it can be located in any place of the room where it sounds the best.

•

 Place MSS far away from monitors and TV sets, as insigni

fi

cant image distortion in these super-

sensitive devices is possible.

Installation and operation

MS-1090 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD/

MP3, TV, PC sound card, etc. (see Fig. 5).

•

Before making any connections, make sure the MSS is o

ff

 and unplugged. Then connect the sub-

woofer AUDIO OUTPUT jack

l

 to the satellites with the built-in audio cables (see connection diagram

in Fig. 5).

•

To connect the MSS to an audio source, use the included 2RCA to the mini-jack stereo signal

cable. Insert the RCA jacks of the cable into the AUDIO INPUT jack

k

, and the mini-jack of the

cable – into the Ø 3.5 mm jack of the audio source.

Fig. 4.

Remote control

ENG
