EN

2

23

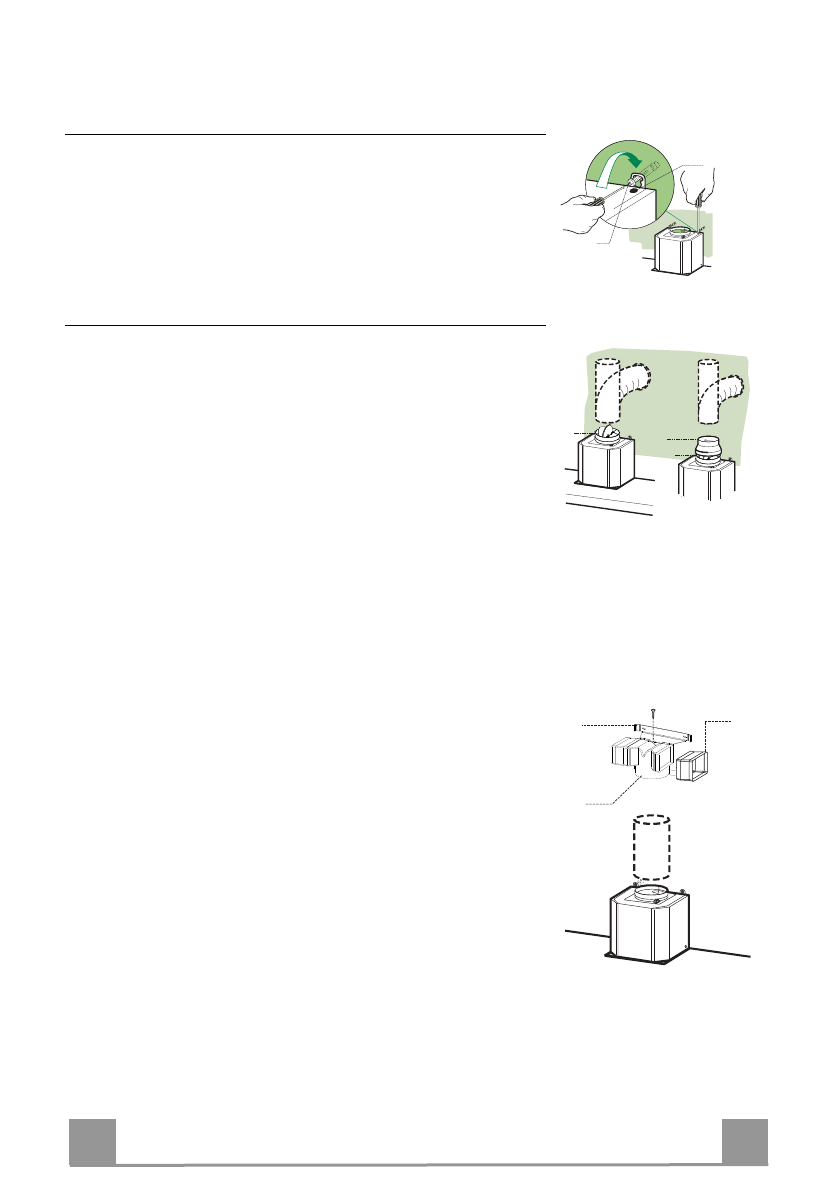

Mounting the hood body

•  Before attaching the hood body, tighten the two screws

Vr

 lo-

cated on the hood body mounting points.

•  Hook the hood body onto the screws

12a

.

•  Fully tighten the support screws

12a

.

•  Adjust the screws

Vr

 to level the hood body.

12a

Vr

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120mm, the
choice of which is left to the installer.

To install a ø 150 pipe

•  To install the dumper

10

•  Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

To install a ø 120 pipe

•  To install a ø 120 mm air exhaust connection, insert the re-

ducer flange

9

 on the dumper

10

.

•  Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

•  Remove any activated charcoal filters.

9

ø 120

ø 150

10

10

RECIRCULATION VERSION AIR OUTLET

•  Insert the connection extension pieces laterally

14.1

 in connec-

tion

15.

•  Insert the Connector

15

 into the Support bracket

7.3

 and fix it

with a screw.

•  Make sure that the outlet of the extension pieces

14.1

 is hori-

zontally and vertically aligned with the chimney outlets.

•  Connect the air outlet connection

15

 to the hood body outlet

using either a flexible or rigid pipe   ø 150 mm, the choice of
which is left to the installer.

•   Ensure that the activated charcoal filters have been inserted.

ø 150

15

14.1

7.3
