INSTALLATION

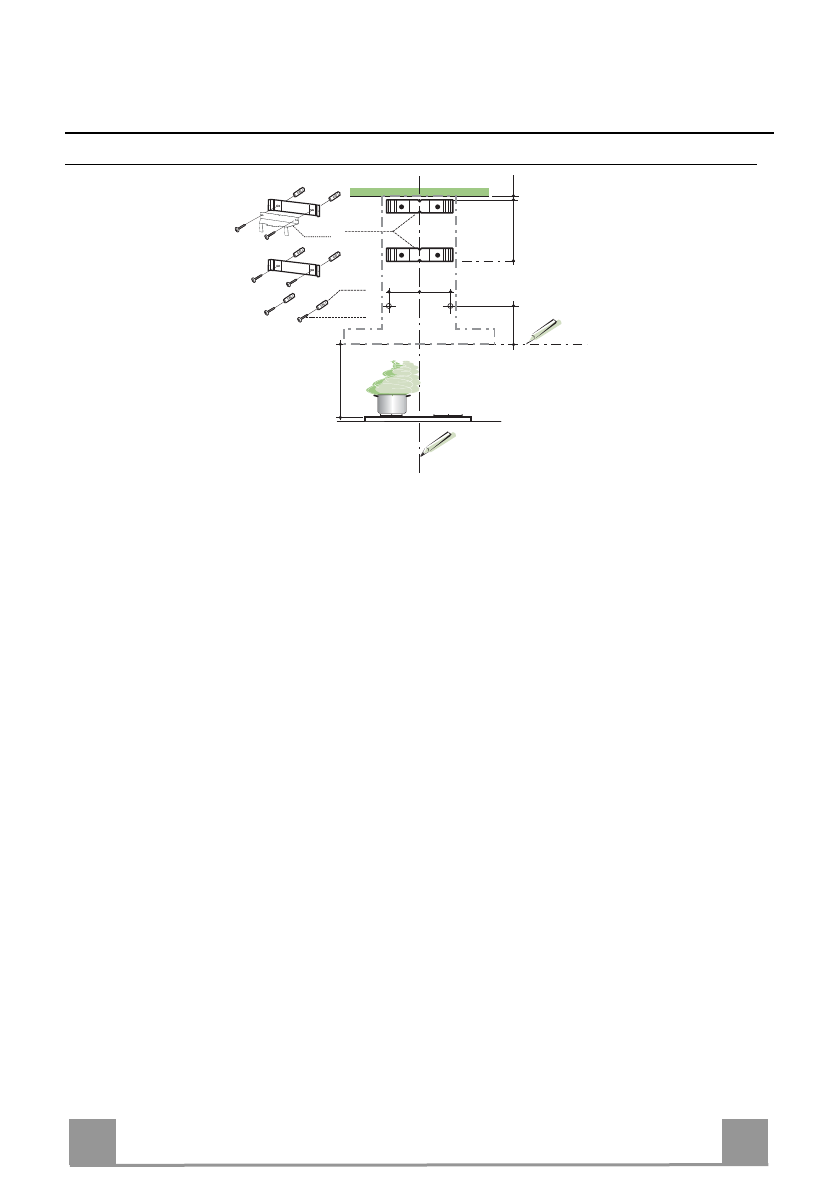

Wall drilling and bracket fixing

Wall marking:
•  Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the

centre of the area in which the hood will be installed.

•   Draw a horizontal line at 650 mm above the hob.
•   Place bracket

7.2.1

on the wall as shown about 1-2 mm from the ceiling or upper limit align-

ing the centre (notch) with the vertical reference line.

•   Mark the wall at the centres of the holes in the bracket.
•   Place bracket

7.2.1

on the wall as shown at X mm below the first bracket (X = height of the

upper chimney section supplied), aligning the centre (notch) with the vertical line.

•   Mark the wall at the centres of the holes in the bracket.
•   Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm

above the horizontal reference line.

•   Repeat this operation on the other side.
•   Drill ø 8 mm holes at all the centre points marked.
•   Insert the wall plugs

11

in the holes.

•   Fix the lower bracket

7.2.1

using the

12a

screws (4,2 x 44,4) supplied.

•  Fix the upper bracket

7.2.1

and the air outlet connection support

7.3

together using the 2

screws

12a

(4,2 x 44,4) supplied.

•   Insert the two screws

12a

(4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap

of 5-6 mm between the wall and the head of the screw.
