TECHNICAL PASSPORT

ENGLISH

Сooker hood

5.2 The cooker hood refers to the

type of “built-in pull-out” hoods and

is built into the furniture sets of the

kitchen above the stove.

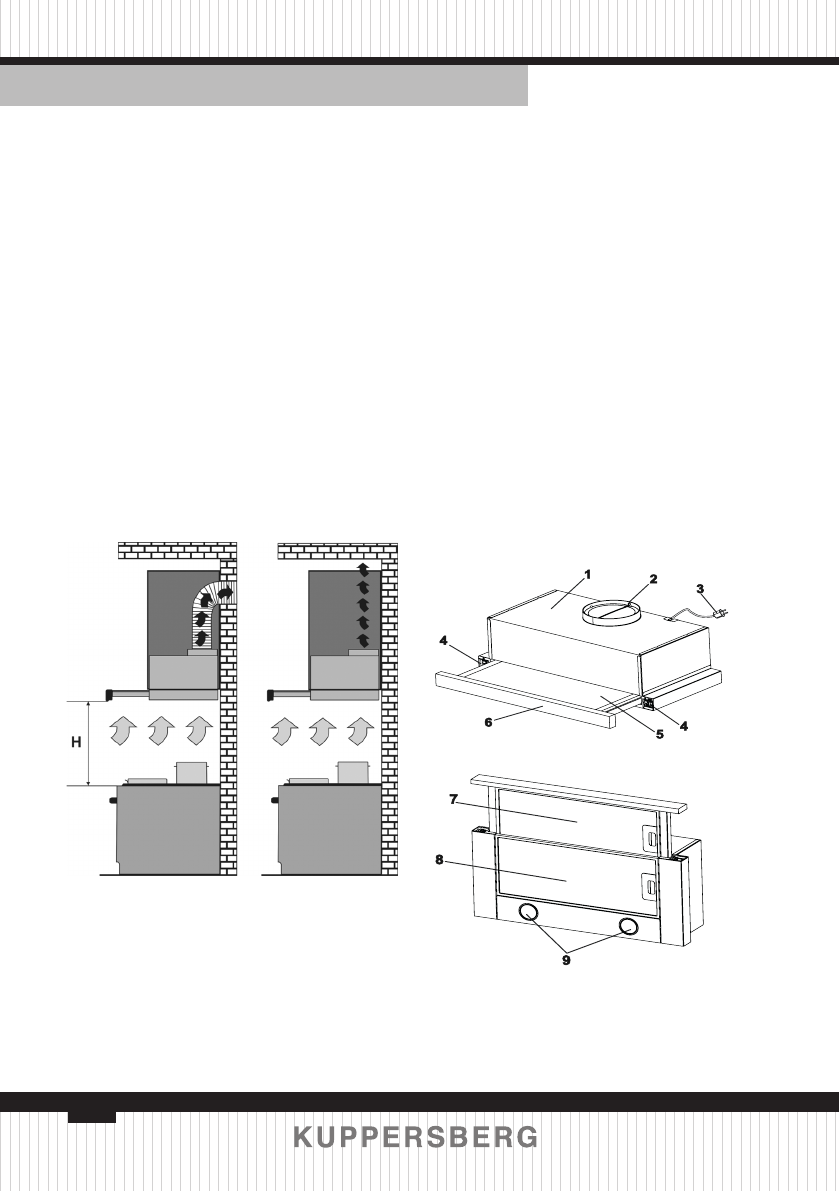

5.3 Depending on the installation

scheme over the cooker, the extractor

hood can work in two variants (see item

1.5):

- in the mode of air extraction into

the chimney of the kitchen (Fig. 1).

- in the recirculation mode (Fig. 2)

(closed circular air circulation in the

kitchen).

“It is necessary to consider, that

when the extractor hood is on, the

pressure is automatically lowered in the

Distance H:

•

•  To electric cooker 65-75cm

To electric cooker 65-75cm

•

•  To gas cooker 75-85cm

To gas cooker 75-85cm

Fig. 1

Fig. 2

enclosed room, and should be balanced

with an by opening doors and windows

or with ventilation”.

5.4 The cooker hood consists of the

following parts (Fig. 3 / 3.1):

1 – body of a cooker hood

2 – turbofan outlet (Ø150 mm).

3 – electric cord with ground

(protection class - I) 4 – light and

mode switches

5 – pull-out panel

6 – a pad pull-out panel

7 –  aluminium  filter  (500/600  mm -

1 pcs.)

8 –  aluminium  filter  (500/600  mm -

1 pcs.)

9 – lighting lamps (LED).

Fig. 3

Fig. 3.1
