6

Technical passporT

english

extractor hood

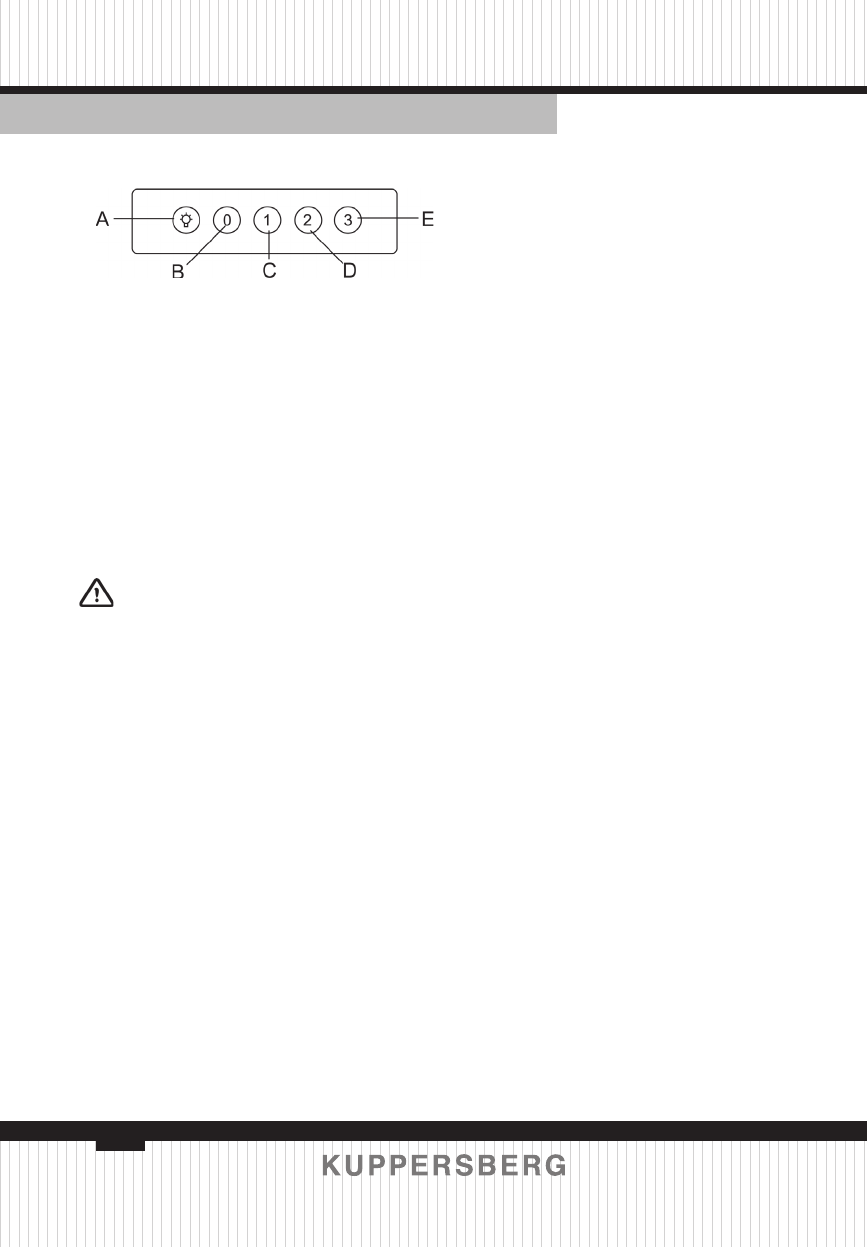

Mechanical control (buttons)

А – «Lighting» button

В – «0» button

С

–

«1»

button

D

–

«2»

button

E – «3» button

«Lighting» button – Lighting On/Off

«0» button - hood motor On/Off

«1» button - motor rotation speed 1

(initial level)

«2» button - motor rotation speed 2

«3» button - motor rotation speed 3

S E CT I O N  5.

Mounting and dimensions

Please unpack and inspect the

appliance! Before starting installation,
make sure that the hood has no obvious
transport damages. If such defects are
detected, do not install or connect the
appliance to the mains.

1. To install the air cleaner above the

stove

, draw a vertical line on the wall

from the center of the stove vertically
to the ceiling. To comply with safety
regulations, the distance between the
cooking surface and the air cleaner
should be 700 mm. Accordingly, make
a mark with a pencil on the vertical
line  at  a  height  of  700+426=1126  mm
from the surface of the stove. Draw a
horizontal line through this point on

the wall. Measure 100 mm on this line
to the right and left from the point
of intersection of the vertical and
horizontal lines and make marks with
a pencil. Using a 6-mm drill bit, drill
holes in these marks. Insert dowels in
the holes just drilled and fi x the hooks.

2. Installation of decorative cover

Draw a horizontal line on a wall, at

a distance of 75 mm from the ceiling.
Measure 50 mm on this line to the right
and left from the point of intersection
with the vertical line and make marks
with a pencil. On these marks, drill the
holes, insert the 8-mm dowels in them
and tighten 2.5-mm screws which must
protrude 2 mm from the wall.

Step 1: Installation of hooks
Step 2: Installation of mounting

bracket

Step 3: Installation of housing
Step 4: Installation of external part

of decorative cover

Step 5: Installation of internal part

of decorative cover

1- Ø8 dowel
2- Mounting bracket
3- Hook
4- Internal part of decorative cover
5- External part of decorative cover
6- Air cleaner housing
7- Bushing adapter
8- Ø 2.5 screw
