6

TEchnical passporT

English

Extractor hood

А – Hood motor On/Off

В  –  Motor  rotation  speed  decrease

(suction power reducing)

С  –  Motor  rotation  speed  increase

(suction power increasing)

D  –  When  you  press  on  the  Timer,

the motor will automatically be shut

down after 15 minutes. To activate the

function, press and hold the Timer for

3 seconds (rotation speed level starts

to fl ash on the display). To cancel, press

once on the Timer.

E – Lighting On/Off

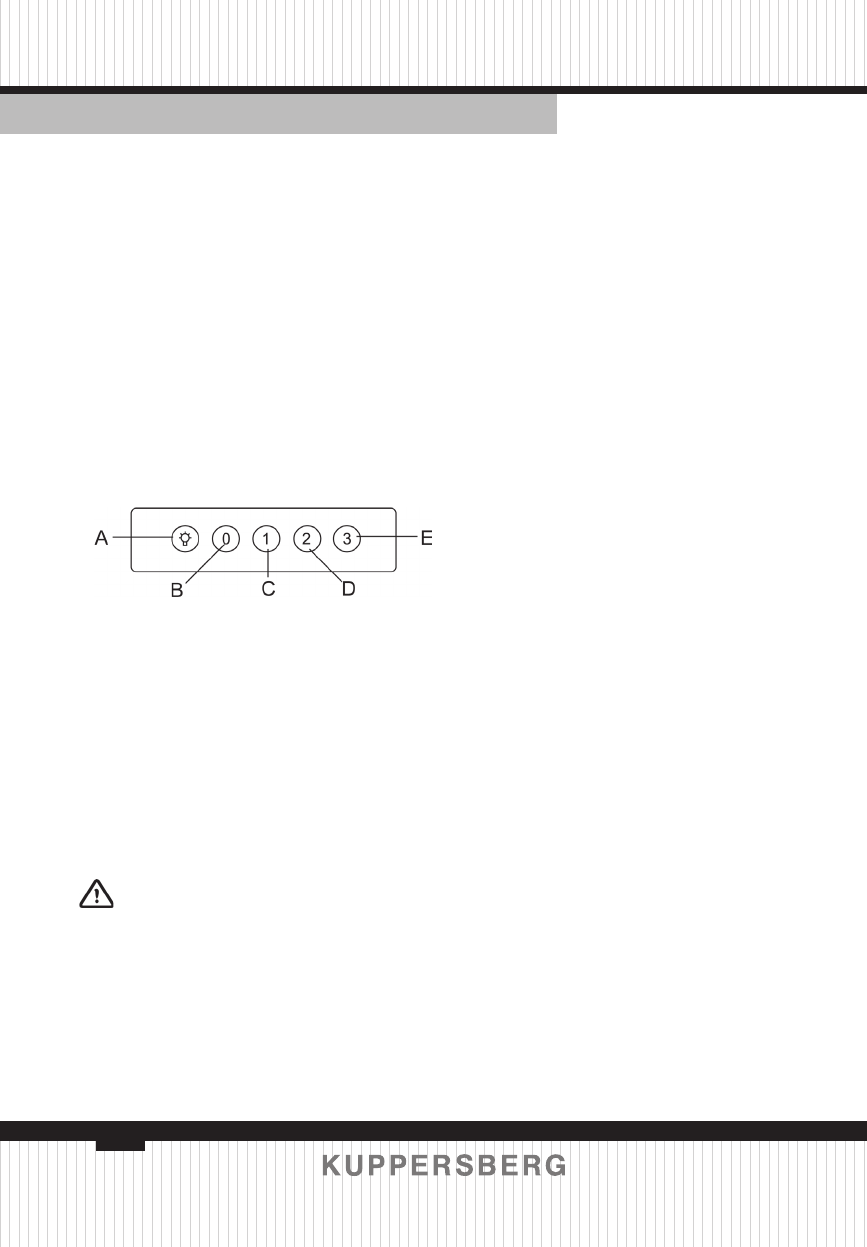

Mechanical control (buttons)

А – «Lighting» button

В – «0» button

С

–

«1»

button

D

–

«2»

button

E – «3» button

«Lighting» button – Lighting On/Off

«0» button - hood motor On/Off

«1» button - motor rotation speed 1

(initial level)

«2» button - motor rotation speed 2

«3» button - motor rotation speed 3

1. To install the air cleaner above the

stove

, draw a vertical line on the wall

from the center of the stove vertically

to the ceiling. To comply with safety

regulations, the distance between the

cooking surface and the air cleaner

should be 700 mm. Accordingly, make

a mark with a pencil on the vertical

line at a height of 700+426=1126 mm

from the surface of the stove. Draw a

horizontal line through this point on

the wall. Measure 100 mm on this line

to the right and left from the point

of intersection of the vertical and

horizontal lines and make marks with

a pencil. Using a 6-mm drill bit, drill

holes in these marks. Insert dowels in

the holes just drilled and fi x the hooks.

2. Installation of decorative cover

Draw a horizontal line on a wall, at

a distance of 75 mm from the ceiling.

Measure 50 mm on this line to the right

and left from the point of intersection

with the vertical line and make marks

with a pencil. On these marks, drill the

holes, insert the 8-mm dowels in them

and tighten 2.5-mm screws which must

protrude 2 mm from the wall.

Step 1: Installation of hooks

Step 2: Installation of mounting

bracket

Step 3: Installation of housing

Step 4: Installation of external part

of decorative cover

Step 5: Installation of internal part

of decorative cover

1- Ø8 dowel

2- Mounting bracket

3- Hook

4- Internal part of decorative cover

5- External part of decorative cover

6- Air cleaner housing

7- Bushing adapter

8- Ø 2.5 screw

S E CT I O N  5.

Mounting and dimensions

Please unpack and inspect the

appliance! Before starting installation,
make sure that the hood has no obvious
transport damages. If such defects are
detected, do not install or connect the
appliance to the mains.
