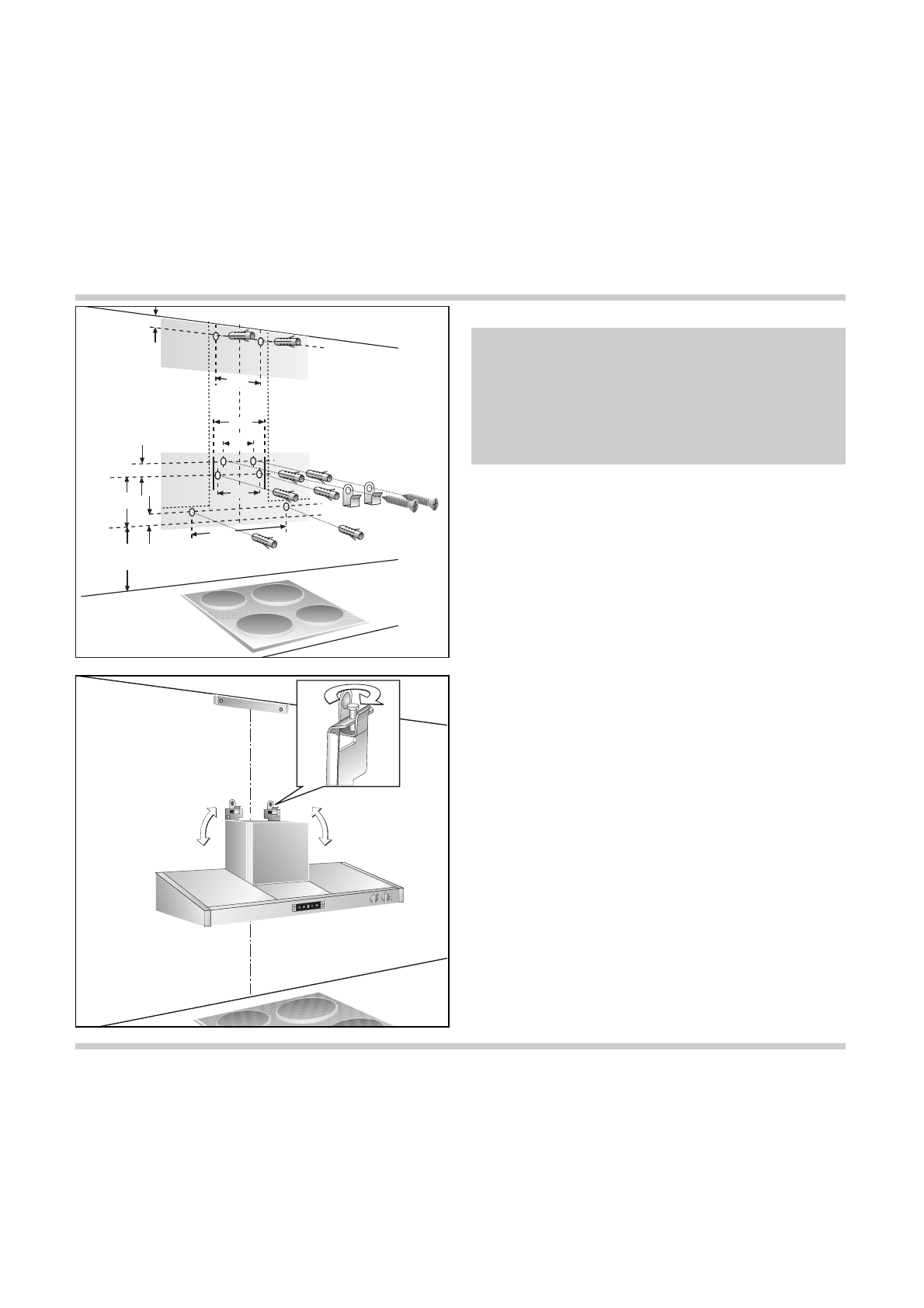

Proceed as follows:

– From the bottom edge of the hood, mark a center

line on the wall.

– With the aid of the drilling template, mark the

positions of the screws on the wall. Mark the
contour of the hook-in area. This will make it
easier to hook in the hood (Fig. 16).

– Pay attention to the minimum clearance of 650 mm

for electric cookers and 750 mm for gas cookers.
The bottom edge of the template corresponds to
the bottom from edge of the hood.

– Using the drilling template, drill the 6 holes for

the hood (area I of the drilling template) and the
two holes for suspending the chimney (area II of
the drilling template). In the top two securing
holes for the hood, fix the two hooks

d

with the

countersunk screws

c

. Fit the included dowels

a

in the other drill holes.

Note:

Pay attention to any special accessories that

you may have to fit.

– Screw on the retaining bracket for the chimney

paneling.

– Detach the grease filters.

– Hang the hood on the two hooks. Adjust the

suspended element with the recessed head
screw and align the hood using a spirit level
(Fig. 17).

14

518,5

120

270

300

15

310

mind. 650 Elektro
mind. 750 Gas

230

76,5

960

Fig. 16

Fig. 17

Important:

Before marking the securing holes,

make sure that no electricity or water lines or
other lines are laid at the drilling points in the wall.

Important:

There are two handles on top of the

hood. Only carry the hood using these handles. Do
not lift the hood by the stainless steel side panels
or the aluminium front panel.

min. 650 electric

min. 750 gas
