•  fixed equipment not provided with a power supply cable and plug, or any

other device that ensures disconnection from the electrical mains, with an
opening gap of the contacts that enables total disconnection in overvoltage
category III conditions.

  Said disconnection devices must be provided in the mains power supply in

compliance with installation regulations.

The yellow/green earth cable must not be cut off by the switch.
The Manufacturer declines all responsibility for failure to comply with the safety
regulations.

FUMES DISCHARGE

HOOD WITH INTERNAL RECIRCULATION (FILTERING)

In this model, the air passes through the zeolite-carbon filters
to be purified and recycled in the environment.

Ensure that the active carbon filters are assembled into the
hood, if not, install them as indicated in the assembly instruc-
tions.

In this version the check valve must not be assembled: remove it if it is
on the air outlet fitting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for qualified personnel

The hood can be installed in various configurations.

The generic assembly steps apply to all installations; for each case,

follow the specific steps provided for the required installation.

OPERATION

WHEN TO TURN ON THE HOOD?

Switch on the hood at least one minute before starting to cook to direct fumes
and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours
and odours. By means of the Timer function, it is possible to set auto switch-off
function which will allow the hood to turn off automatically after 15 minutes of
operation.

WHICH SPEED IS TO BE SELECTED?

1st speed:

 maintains the circulation of clean air with low electricity consump-

tion.

2nd speed:

 normal conditions of use.

3rd speed:

 presence of strong odours and vapours.

4th speed:

 rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal filters must be cleaned every 30 hours of operation.
The zeolite-carbon filters must be reactivated every 18 months and replaced
every 3 years.
For further details see the

“MAINTENANCE”

chap.

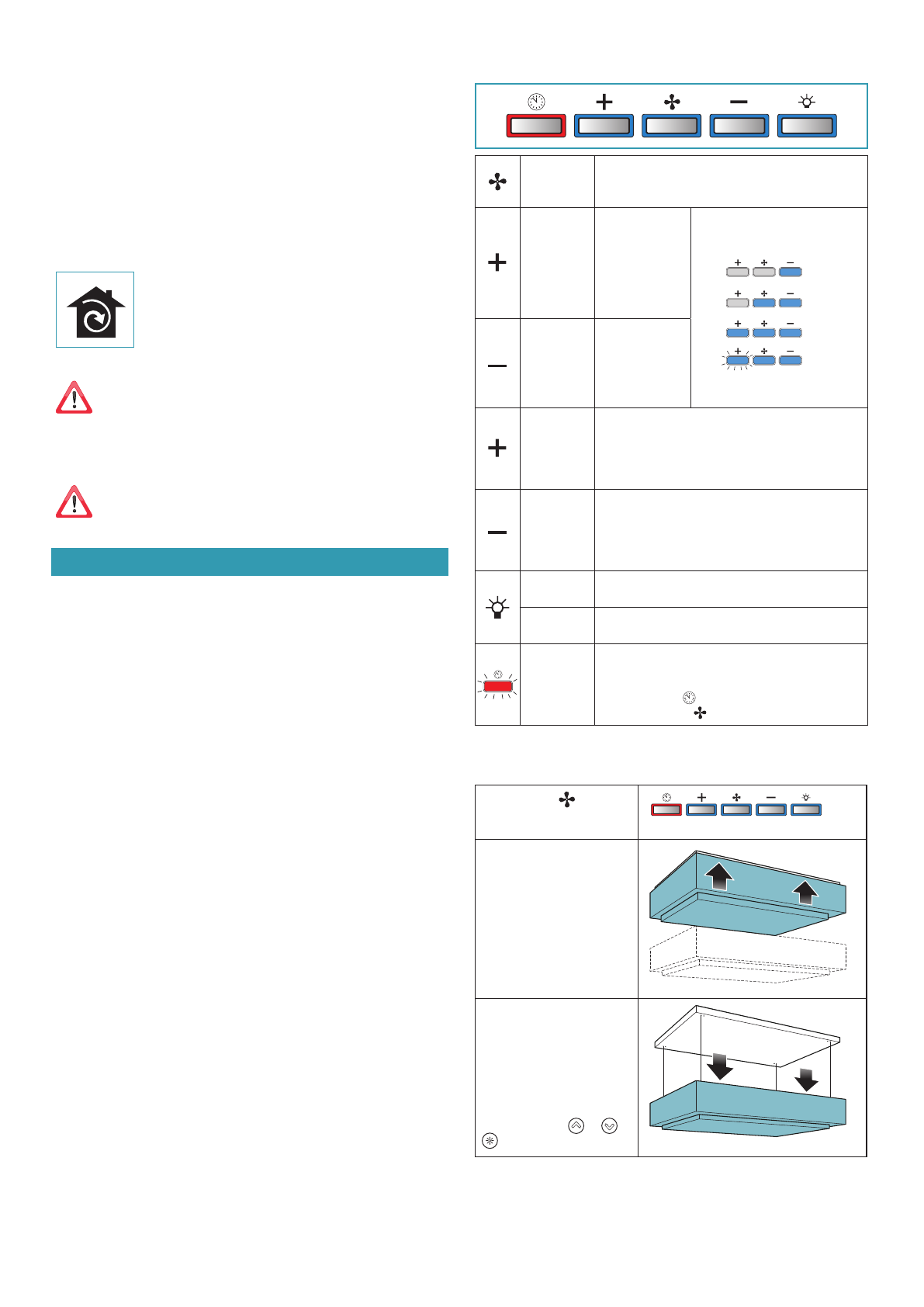

ELECTRONIC PUSHBUTTON PANEL

Brief

pressure

Motor ON/OFF

Upon start-up, the speed is that stored at the previ-
ous operation.

Brief

pressure

Increase speed

from 1 to 4

Speed 4 is only
active for a few
minutes, then
speed 3 activa-
tes.

The speeds are indicated by the
LEDs on the keys:

 Speed 1

 Speed 2

 Speed 3

 Speed 4

("+" LED flashing)

Brief

pressure

Reduce speed

from 4 to 1

Prolonged

pressure

Lifting the hood

Activated only with the fan not working.
Stop:
- when the upper microswitch is reached
- pressing the + or - button.

Prolonged

pressure

Lowering the hood

Activated only with the fan not working.
Stop:
- when the lower microswitch is reached
- pressing the + or - button.

Brief

pressure

Light on/off

Prolonged

pressure

Change light tone from 2700K to 5600K

Brief

pressure

TIMER

Auto switch-off after 15 min.
The function deactivates (red LED off ) if:
- The TIMER key ( ) is pressed again.
- The ON/OFF key ( ) is pressed.

HOOD MOVEMENT SETUP

Press button

 for 10 se-

conds

When SETUP is started, all LEDs light up

The hood moves slowly

upwards until it reaches the

upper limit switch

The hood moves downwards

until it reaches the lower li-

mit switch.

If you want to set the hood

stop before it reaches the

lower limit switch, which

represents the maximum

lowering, press + or - on the

button panel or

 or

 or
