ENGLISH

ELECTRICAL CONNECTION

(only intended for qualified personnel)

Disconnect the equipment from electrical mains power supply before carry-
ing out any operations on the hood.
Ensure that the wires inside the hood are not disconnected or cut:
in the event of damage, contact your nearest Servicing Department.

Refer to qualified personnel for electrical connections.
Connection must be carried out in compliance with the provisions of law in force.

Before connecting the hood to the electrical mains power supply, check that:
•  voltage supply corresponds with what is reported on the data plate located inside the

hood;

•  the electrical system is compliant and can withstand the load (see the technical specifi-

cations located inside the hood);

•  the power supply plug and cable do not come into contact with temperatures exceed-

ing 70 °C;

•  the power supply system is effectively and properly connected to earth in compliance

with regulations in force;

•

the socket used to connect the hood is within reach.

In case of:
•

devices fitted with cables without a plug: the type of plug to use is a ''standardised'' one.
The wires must be connected as follows: yellow-green for earthing, blue for neutral and
brown for the phase. The plug must be connected to an adequate safety socket.

•

fixed equipment not provided with a power supply cable and plug, or any other device
that ensures disconnection from the electrical mains, with an opening gap of the con-
tacts that enables total disconnection in overvoltage category III conditions.

Said disconnection devices must be provided in the mains power supply in compliance
with installation regulations.

The yellow/green earth cable must not be cut off by the switch.
The Manufacturer declines all responsibility for failure to comply with the safety regulations.

FUMES DISCHARGE

HOOD WITH INTERNAL RECIRCULATION (FILTERING)

In this version, air passes through zeolite-carbon filters to be purified
and recycled in the environment.

Make sure the zeolite-carbon filters are installed in the hood, otherwise,
apply them as indicated in the assembly instructions.

In this version the check valve must not be assembled: remove it if it is on the air
outlet fitting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for personnel qualified

The hood can be installed in various configurations.

The generic assembly steps apply to all installations; for each case, follow
the specific steps provided for the required installation.

OPERATION

WHEN TO TURN  ON THE  HOOD?

Switch on the hood at least one minute before starting to cook to direct fumes and vapours
towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours and odours.
By means of the Timer function, it is possible to set auto switch-off function which will allow
the hood to turn off automatically after 15 minutes of operation.

WHICH SPEED IS TO BE SELECTED?

1st speed:

 maintains the circulation of clean air with low electricity consumption.

2nd speed:

 normal conditions of use.

3rd speed:

 presence of strong odours and vapours.

4th speed:

 rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal filters must be cleaned every 30 hours of operation.
The zeolite-carbon filters must be reactivated every 18 months and replaced every 3 years.
For further details see the

“MAINTENANCE”

chap.

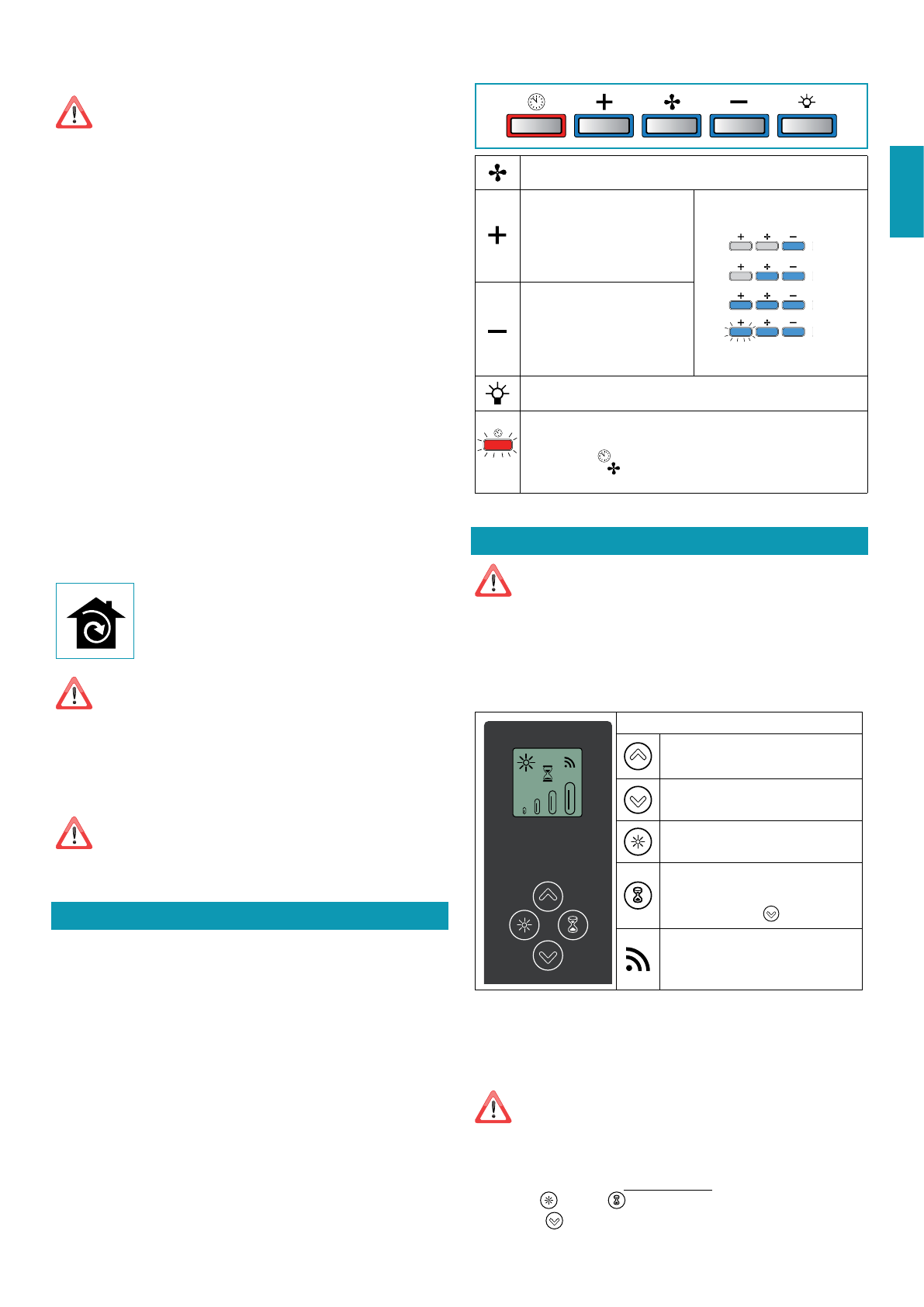

ELECTRONIC PUSHBUTTON PANEL

Motor ON/OFF

Upon start-up, the speed is that stored at the previous operation.

Increase speed from 1 to 4

Speed 4 is only active for a few min-
utes, then speed 3 activates.

The speeds are indicated by the LEDs
on the keys:

Speed 1

 Speed 2

 Speed 3

 Speed 4

("+" LED flashing)

Reduce speed from 4 to 1

Light on/off

TIMER

 (red LED flashing)

Auto switch-off after 15 min.
The function deactivates (red LED off ) if:
- The TIMER key (

) is pressed again.

- The ON/OFF key (

) is pressed.

USING THE RADIO CONTROL

WARNINGS!:

Place the hood away from sources of electromagnetic waves (e.g. micro-
wave ovens), which could interfere with the radio control and with the hood

electronics.
The maximum operating distance is 5 metres, that may vary according to the pres-
ence of electromagnetic interferences.
Radio control operated at 433.92MHz.
The radio control consists of two parts:
- the receiver built into the hood;
- the transmitter shown here in the figure.

DESCRIPTION OF TRANSMITTING COMMANDS

UP

Motor switch-on and speed increase from 1
to 4. Speed 4 is only active for a few minutes.

DOWN

Speed decrease and motor switch-off.

Light ON-OFF

TIMER ON:

The motor automatically switch-

es off after 15 min.
The function is automatically disabled if the

motor is switched off (

 key)

Command transmission active

RADIO CONTROL CODE CHANGE

With only one radio control, go directly to point 2.
With several radio controls in the same room, a new code can be created by following the
procedure below.

Disconnect the power to the hood before starting the procedure.

1) - CREATE A NEW CODE

The procedure is to be carried out on the radio control.

•

 Press

LIGHT

 and TIMER

 simultaneously until the display starts flashing.

•

 Press

DOWN

 on the radio control: saving is confirmed by three brief flashes of the

display. The new code cancels and replaces the previous default code.
