31

Installation

The minimum distance between the supporting surface for the
cooking equipment on the hob and the lowest part of the
range hood must be not less than 50cm from electric cookers
and 65cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a
greater distance, this must be adhered to.


  Electrical connection

The mains power supply must correspond to the rating
indicated on the plate situated inside the hood. If provided with
a plug connect the hood to a socket in compliance with current
regulations and positioned in an accessible area, after
installation. If it not fitted with a plug (direct mains connection)
or if the plug is not located in an accessible area, after
installation,  apply a double pole switch in accordance with
standards which assures the complete disconnection of the
mains under conditions relating to over-current category III, in
accordance with installation instructions.


WARNING!

Before re-connecting the hood circuit to the mains supply and
checking the efficient function, always check that the mains
cable is correctly assembled.
The hood is provided with a special power cable ; if the cable
is damaged, request a new one from Technical Service.

Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for
the chosen installation area.

•  Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only
if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with
screws (*), guarantees (*), etc.), eventually removing
them and keeping them.

Very heavy product; hood handling and installation must
be carried out by at least two persons.

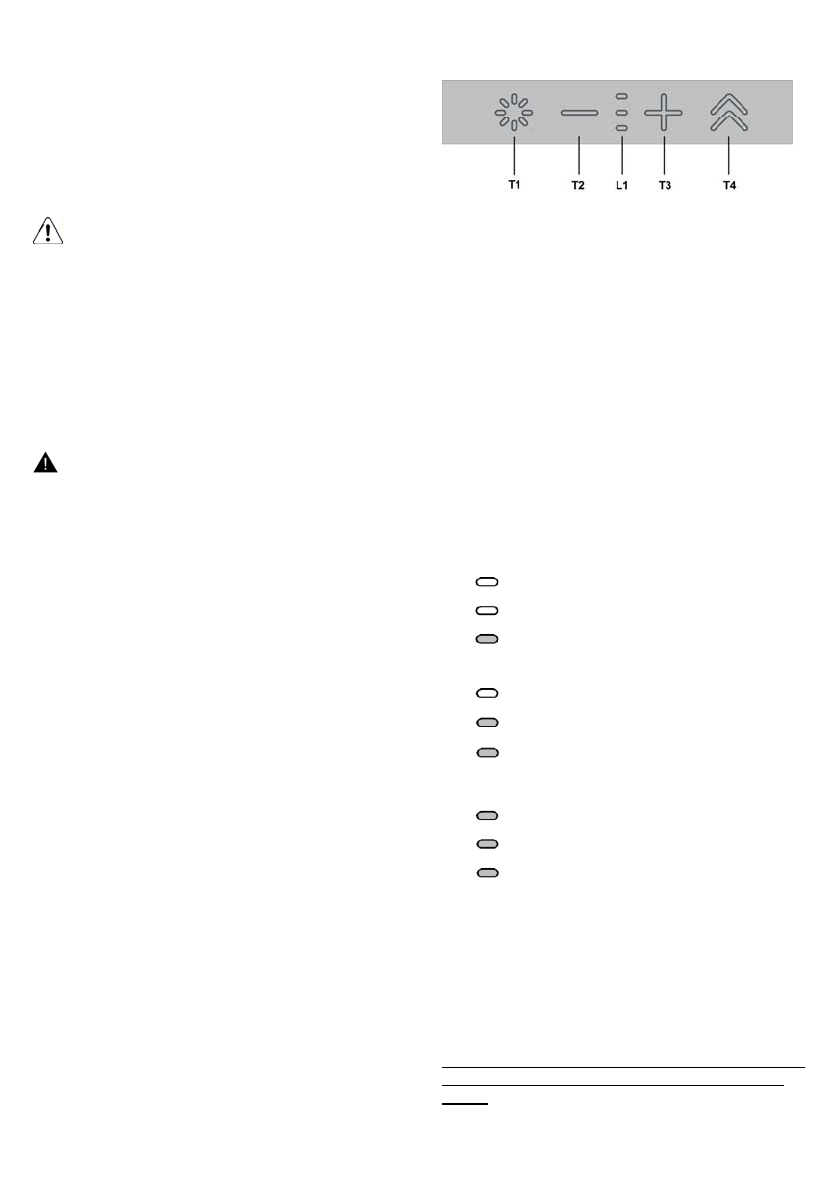

Operation


T1.

  Light ON/OFF button

T2 .

Decrease intake speed / motor off button

L1.

Speed indicator LED on

T3.

Motor on / increase intake speed button

T4 .

"BOOST” – intensive speed - function button


T1 :

Light ON/OFF button

to turn the light on and off


T2 :

Decrease speed / motor off button

press the decrease the intake power, until the extractor hood
is turned off.

press and hold to turn the hood off directly.


L1:

Speed indicator LED on

the central LEDs light up according to the intake speed
active/used


1st intake speed active

2nd intake speed active

3rd intake speed active


T3:  Increase speed button

press to turn the hood on
press to increase the intake power.

T4:

"BOOST” – intensive speed - function button

press

T4

 to activate the intensive intake speed “

BOOST 1

”,

timed

for 30 minutes

this prolonged timing has been designed to guarantee a useful

cooking time when a high smoke content is produced while
cooking
