Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for
the chosen installation area.

•  Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only
if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with
screws (*), guarantees (*), etc.), eventually removing
them and keeping them.


Expansion wall plugs are provided to secure the hood to most
types of walls/ceilings. However, a qualified technician must
verify suitability of the materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong enough to take
the weight of the hood.

Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

Operation

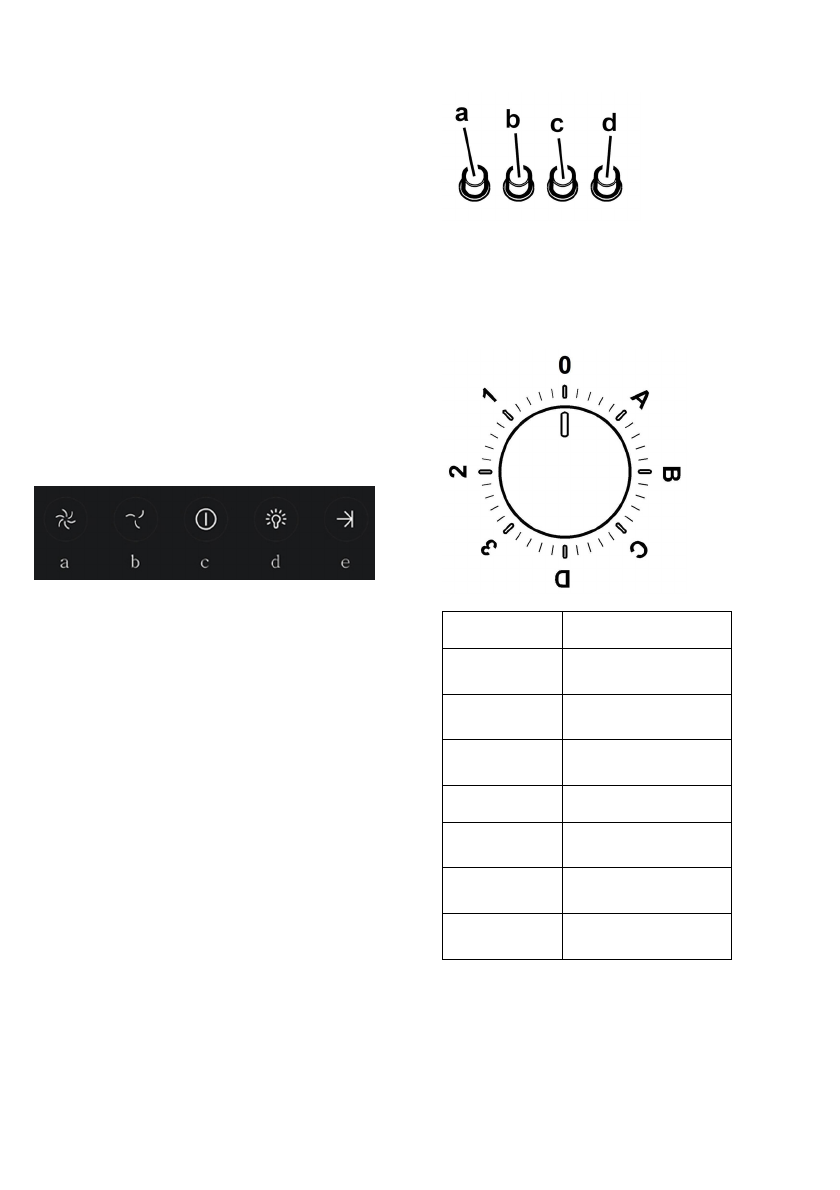

Model with 5-key keyboard



To select the functions of the hood, simply touch the
commands:


a.

  Button to increase suction speed (power):

Suction speed (power) 1

Suction speed (power) 2

Suction speed (power) 3

Note:

  suction speed (power) 3 is timed, after

approximately 5 minutes the hood returns to suction
speed (power) 2.

b.

  Button to decrease suction speed (power).

c.

  Button ON/OFF hood

d.

  Button ON/OFF lighting

e.

  Button ON/OFF programmed switching off:

it programs switching off of the active suction speed

(power) after approximately 3 minutes.


Models with mechanical control panel


a.

ON/OFF light switch

b.

Speed 1/OFF switch

c.

 2-speed selection

d.

3-speed selection

Models with knob

0

OFF

1

Speed 1
Light OFF

2

Speed 1
Light OFF

3

Speed 1
Light OFF

A

Light ON

B

Speed 1
Light ON

C

Speed 1
Light ON

D

Speed 1
Light ON
