19

installation of an electric socket and/or a hole for the
passage of the discharge tube).




In the case of the presence of panels and/or walls and/or
lateral wall units check that there is sufficient space to install
the hood and that access to the command panel is easy.

To remove the hood from the wall unit,

perform the

mounting steps in reverse order.

Caution!

 Use suitable cut resistant gloves.

Start detaching the hood from the double-sided adhesive that
keeps it adherent to the bottom of the wall unit (see also Fig.
4)
Therefore, use a cutter that can be slipped between the sheet
metal of the hood and the bottom of the wall unit on the right
and left sides. Fig. A

Caution

! Otherwise, if you use force during extraction, the sheet m etal of the hood could be irremediably distorted.

Operation

Use the high suction speed in cases of concentrated kitchen
vapours.  It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

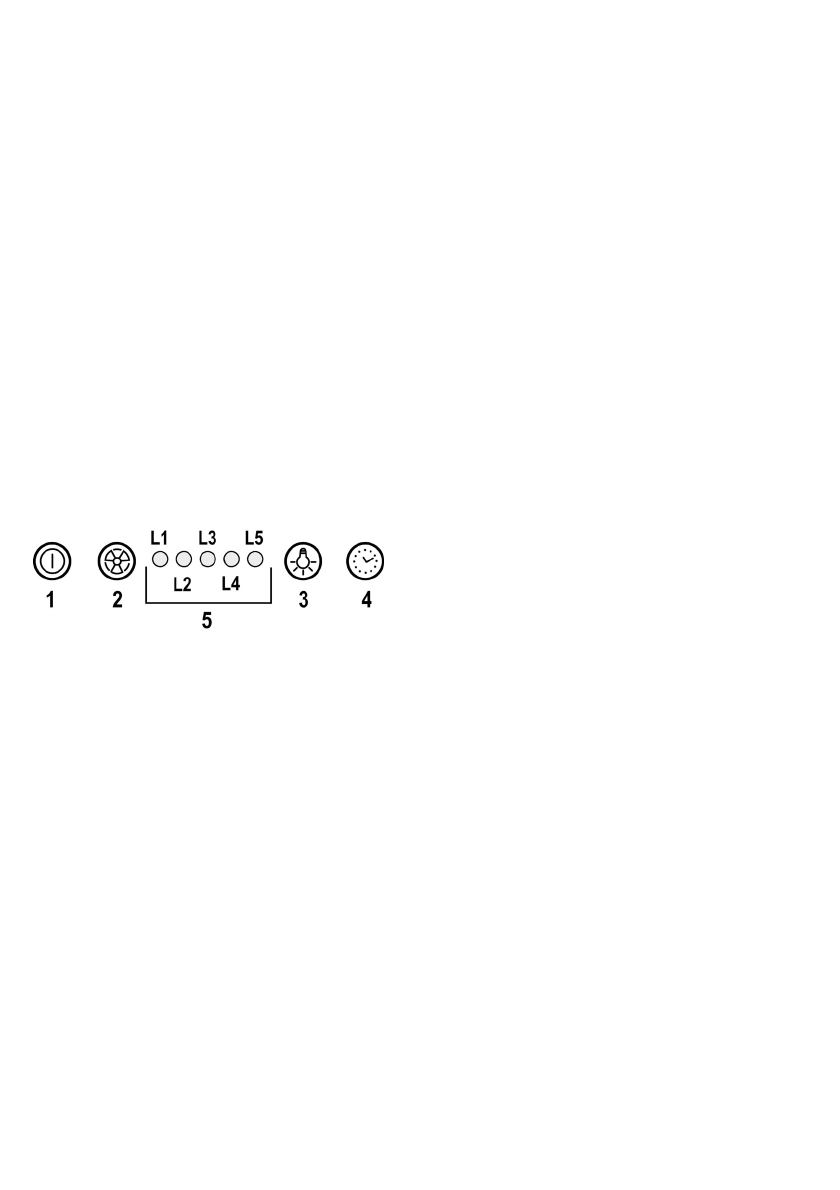

1 ON/OFF

motor

Pressing the button, the hood turns on at speed 1.

Pressing the button during functioning, the hood turns
OFF.

2 Speed

Increase

Pressing the button the hood passes from the OFF state
to speed 1.

Pressing the button (hood in ON state) the motor speed
is increased from speed 1 to intensive.

To each speed corresponds the ignition of the respective
led.

Speed 1 led

L1

Speed 2 led

L2

Speed 3 led

L3

Intensive Speed led

L4

(flashing)

The intensive speed is timed. The  standard timing is 5’,
at the end of which the hood positions itself to speed 2.

To deactivate the function before the time expires press
key

2

, the hood positions itself to speed 1, pressing key

1

the hood will turn off.

3 ON/OFF

lights

4 Speed

timing

5  Function state indicator

Speed Timing

The timing of the speed is enabled by pressing key

4

, once

the timing expires the hood turns off.
The timing is subdivided as follows:
Speed 1 - 20 minutes (led

L1

 flashing)

Speed 2 - 15 minutes (led

L2

flashing)

Speed 3 - 10 minutes (led

L3

 flashing)

Intensive Speed - 5 minutes (led

L4

 flashing)


During the timed functioning pressing key

1

 the hood turns off,

if you press key

2

or key

 4

 the hood returns to the set speed.

Grease trap Signal

After 40 hours of operation the led

L5

 turns on.

When such signal appears the installed grease trap needs to
be washed.
To reset the signal hold down key

1

 for 3”.

Carbon filter Signal

After 160 hours of operation the led

L5

 flashes.

When such signal appears the installed carbon filter must be
substituted.
To reset the signal hold down key

1

 for 3”.


In the case of both filters signalling at the same time, the led

L5

will indicate the alarms alternately remaining on for 3" and

subsequently flashing 3 times.
The reset takes place by carrying out the procedure described
above 2 times.
The first time resets the grease trap signal, the second resets
the carbon filter signal.

In the standard mode the carbon filter signal is not active.
In case one uses the hood in filter version is it necessary to
enable the carbon filter signal.


Carbon filter signal activation:

Position the hood in OFF and simultaneously hold down keys

1

 and

4

 for 3”.

The led

L1

 and

L2

 will flash for 5”.

Carbon filter signal deactivation:
Position the hood in OFF and simultaneously hold down keys

1

 and

4

 for 3”.

The led

L1

 will flash for 2”.

Temperature Alarm

The hood is equipped with a temperature sensor that activates
the motor to speed 3 in the case that the temperature in the
control panel zone becomes too elevated.
The alarm condition is indicated with the sequential flash of
the leds

L1

,

L2

,

L3

.

This condition remains until the temperature falls below the
alarm threshold.
You can get out of this mode by pressing key

1

or

2

.

Every 30” the sensor checks the environmental temperature of
the control panel zone.
