In the case of the presence of panels and/or walls and/or
lateral wall units check that there is sufficient space to install
the hood and that access to the command panel is easy.
Only for some models
An aesthetic flue can be purchased as an optional accessory.
Check with the authorized dealer whether the model in your
possession envisages this possibility.
We advise installing the hood after having purchased the flue
to check with certainty the most suitable installation.
Fig. 5-14-15-16-17


Operation

Use the high suction speed in cases of concentrated kitchen
vapours.  It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

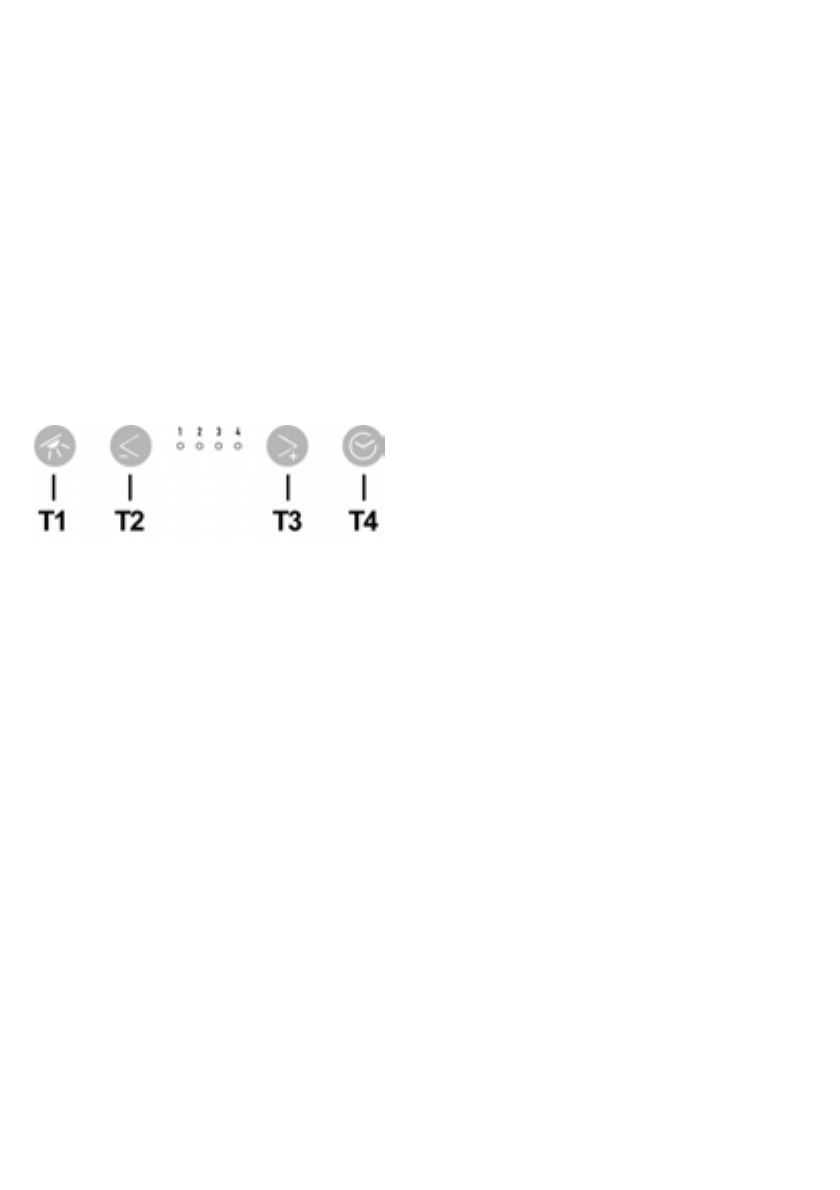

T1.  Lights ON/OFF
T2. Speed decrease
 Press

"T2" button to decrease the speed from 4

(intensive) to  1.

 Press

"T2" button during operation at speed 1, the hood

sets to OFF.

T3 Speed

increase

 Press

T3 button and the hood sets from OFF to speed 1.

Press the button (hood ON) to increase the speed of the
motor from 1 to 4 (intensive).

The respective LED goes on for each speed.

Speed 1 - LED 1

Speed 2 - LED 2

Speed 3 - LED 3

Speed 4 (Intensive) - LED 4 (flashing)

The intensive speed is timed. Standard timing is 5’, at the
end of which the hood sets to speed 2.

To deactivate the function before time is up press T2
button, the hood sets to speed 3.

T4 Speed

timing

Speed timing is activated by pressing T4  button, when
timing is up the hood switches off.

Timing is divided as follows:

Speed 1 - 20 minutes (LED 1 flashing)

Speed 2 - 15 minutes (LED 2 flashing)

Speed 3 - 10 minutes (LED 3 flashing)

Speed 4 (Intensive) - 5 minutes (LED 4 flashing)

During timed operation press T2 button and the hood quits the
timed mode and decreases the speed.
Press  T3 button and the hood quits the timed mode and
increases the speed.
Press  T4 button and the hood quits the timed mode
maintaining the set speed.

Grease filter signal
After 40 hours of operation LED 1 flashes.
When such signal appears the grease filter installed needs to
be washed.
To reset the signal, keep T4 button pressed for 5”.
The hood gives out a "BEEP" and LED 1 stops flashing.

Charcoal filter signal
After 160 hours of operation LED 2 flashes.
When such signal appears the charcoal filter installed must be
replaced.
To reset the signal, keep T4 button pressed for 5”.
The hood gives out a "BEEP" and LED 2 stops flashing.

In case of contemporaneous signalling of both filters, LEDs 1
and 2 flash alternatively.
To reset, carry out the procedure described above for 2 times.
The first time it resets the charcoal filter signal, the second
time it resets the grease filter signal.

The charcoal filter signal is not active in the standard mode.
In case the hood is used in filter version it is necessary to
enable the charcoal filter signal.

Activating charcoal filter signal:
Set the hood to OFF and press T4 button for 5”.
Once the button has been pressed, the LEDs related to the
filter signals currently active light up.
The hood gives out a "BEEP" and LED 2 flashes for 2".
LEDs  1 and 2 remain on for about 2" before the hood goes
back to OFF.
Deactivating charcoal filter signal:
Set the hood to OFF and press T4 button for 5”.
Once the button has been pressed, the LEDs related to the
filter signals currently active light up.
The hood gives out a "BEEP" and LED 2 switches off.
LED  1 remain on for about 2" before the hood goes back to
OFF.
