62

Operation

Use the high suction speed in cases of concentrated kitchen
vapours.  It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

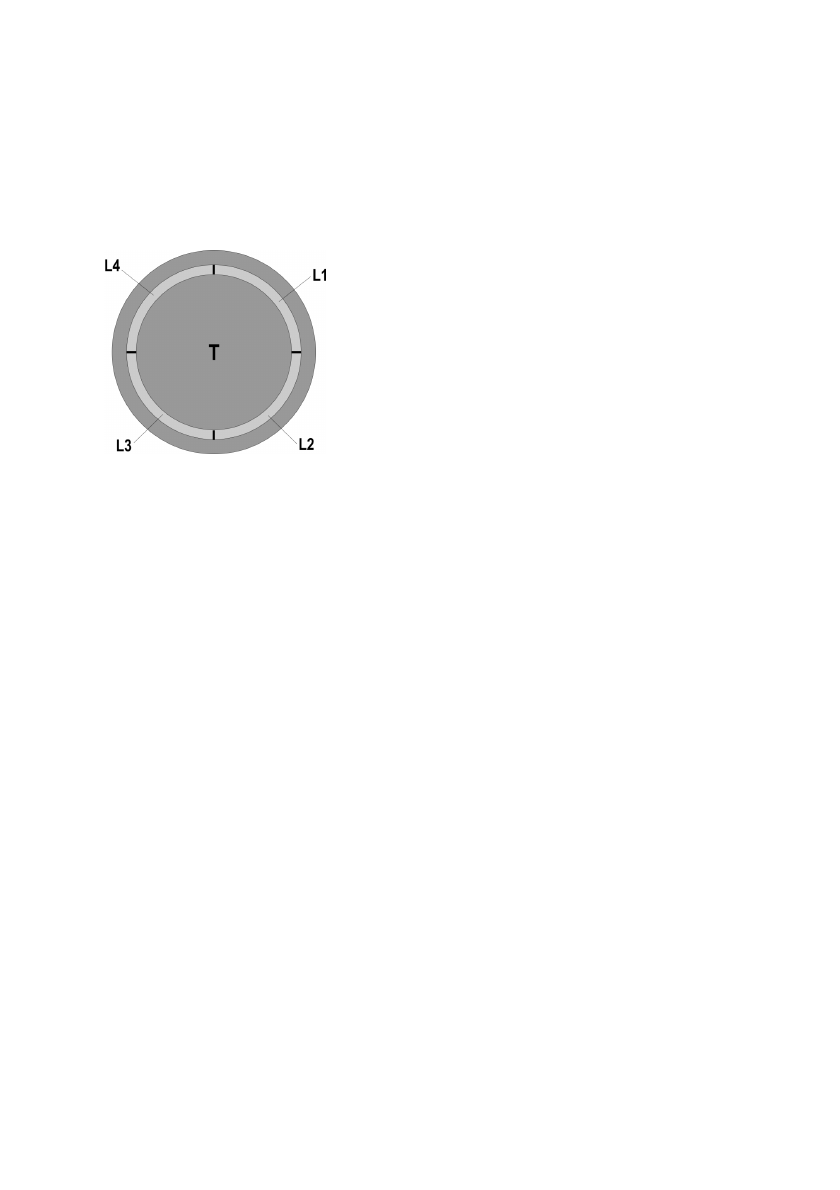

The control panel consists of a backlit rotating disk.






•To put on and off the lights:
Press on the disk (T) to put on and off the lights

• To select the available suction speeds:
Turn the disk (T) clockwise to turn on and increase the suction
speed and counter-clockwise to decrease it, and to turn off the
hood.
The crown (L) lights to indicate the selected suction speed:
• L1 lit
speed 1 (minimum).
• L1 + L2 lit
speed 2 (medium).
. • L1 + L2 + L3 lit
Speed 3 (maximum).
• L1 + L2 + L3 + L4 lit in flashing mode
Speed 4 (intensive), lasting for 5 minutes, then the hood is
placed automatically at speed 2
• L off:
Suction motor off


Filters’ Saturation Control
The hood is equipped with a device that indicates when it is
required to perform the filter maintenance
The saturation control device of the grease filter is always
active
The control device of the activated carbon filter is usually
turned off
To activate it, proceed as follows:
- Turn off the hood.
- Press the disk (T) for more than 5 seconds
The crown (L) lights completely, flashing, and a beep will be
heard: the control device of the charcoal filter is activated.
NB = to turn it off, turn off the hood, press the disk (T), L1 + L2
will be backlit, flashing; wait for the beep to confirm the
deactivation.

Grease filter saturation indicator
L1 + L2 flash when you have to perform maintenance of the
grease filter

Activated charcoal filter saturation indicator
L3 + L4 flash when you have to perform maintenance of the
activated charcoal filter

Reset of filter saturation signal
After filter maintenance, turn on the hood and press the disk
(T) for more than 5 seconds: you will hear a long tone (beep)
confirming the reset.
Note: In case of simultaneous signaling (grease filter and
activated charcoal filter saturation), you must repeat the reset
twice.

Maintenance

ATTENTION!  Before performing any maintenance operation,
isolate the hood from the electrical supply by switching off at
the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and
socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the
same frequency with which you carry out maintenance of the
fat filters) internally and externally.  Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive
products. DO NOT USE ALCOHOL!
WARNING:  Failure to carry out the basic cleaning
recommendations of the cooker hood and replacement of the
filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to
the motor or any fire damage linked to inappropriate
maintenance or failure to observe the above safety
recommendations.
