4. HDMI port
5. TFT rotating screen

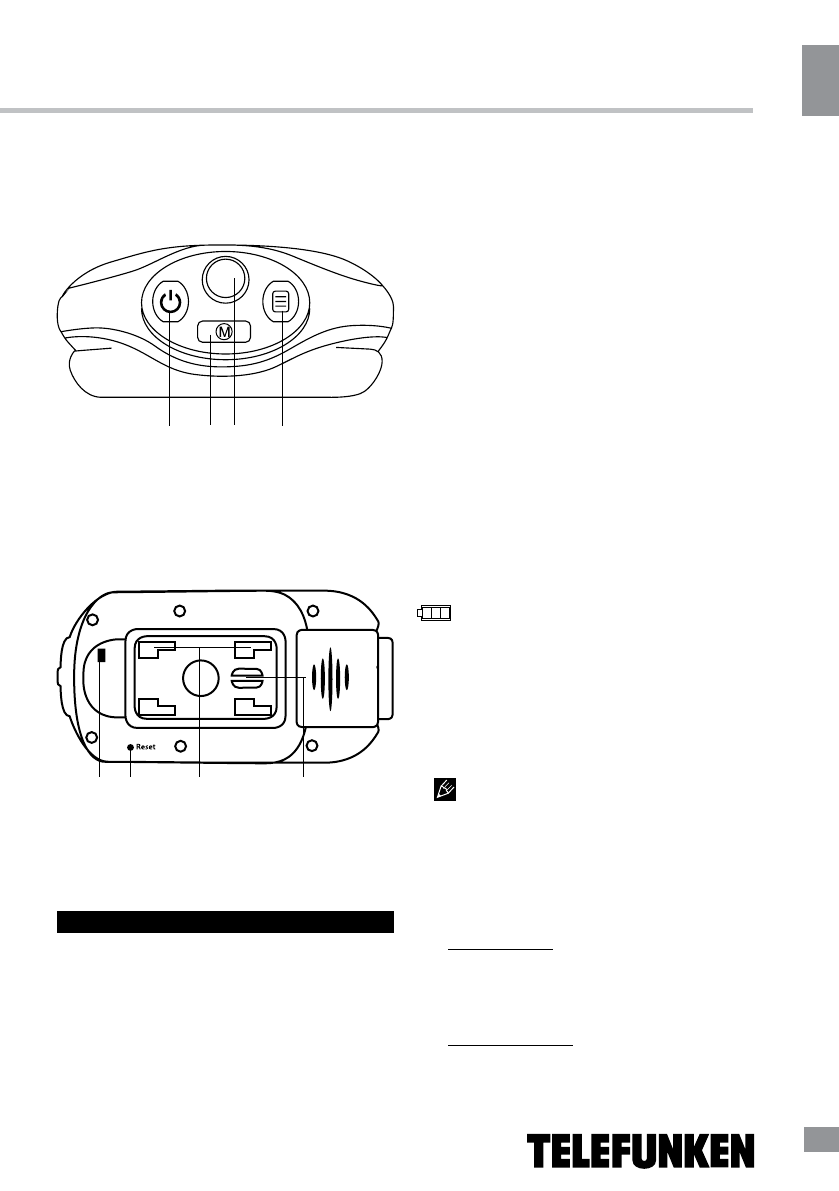

Rear panel

6

7 8

9

6. PWR button
7. M button
8. Cursor/OK button
9. MENU button

Top panel

1

10 11

12

13

10. Mic
11. RESET hole (button)
12. Stand fixing holes
13. Speaker

Operations

Mounting

•  Insert the fixing pins on the top of the

stand into the bracket holding holes in the
bottom of the unit and move the unit backward
until a click to fix it tightly to the bracket.

•  Press the suction cup to a surface in the

car, then push the pressure valve down. Make
sure the stand is fixed properly to the surface.

•  You can adjust the angle of the stand by

loosening the upper and lower washers and
bending the assembly knots.

•  To unmount the stand, lift the pressure

valve, then lift the plastic ear on the suction cap.

Rotary display

To improve the display angle for viewing it,

you can rotate the display in one plane relative to
the hinge axis 270

0

 rightwards.

Camera position

You can adjust the vertical camera position

by rotating it manually at the angle of ±85

0

 to

select the best recording view angle.

Power and charging

To charge the battery of this unit connect

its USB port to the PC with the suppled USB
cable; or connect it to a car lighter socket
with the suppled car adapter. The power icon

 on the bottom right corner of the display

indicates the remaining battery power. During
charging from PC the unit can function only as
PC camera.

Recording

•  Before you start recording, insert an SD

memory card into the memory card slot of this
unit until a click. Insert the card with correct side.

  SD capacity supported: up to 32 GB.

For correct and satisfactory operation, licensed
memory cards of famous brands should be
used with this unit. Avoid using memory cards
of unknown brands. The performance class of
the card should be 6 or above, otherwise the
video quality may be low resulting in uneven
video playback.

•  Auto recording: After you connect this unit

to car power source, recording will be started
automatically. After you disconnect the power
source, the unit will stop recording and save
the recorded information.

•  Manual recording: Press PWR button

to switch on the unit (press and hold it again
if you want to switch off the unit). Select
recording mode by pressing repeatedly MODE
