To perform these operations the qualified installer will follow the indications

given in the "Adaptation to the various types of gas" section.

For safety operation make sure that the supply pressure respects the values

given in the "Table of burner and injector characteristics”.

If the appliance is supplied with liquid cylinder gas, make sure that the cylin-
der pressure regulator conforms to the local regulations in force.

The appliance must be connected to the gas system by a rigid metal pipe

(copper or steel) or continuous wall stainless steel flexible hose in such a

way that the appliance is not stressed in

any way.

The appliance gas inlet tube has an end

nut to which is connected the elbow union

(supplied; 1/2 thread  male gas). It can be

turned depending on installation needs.

The rigid or flexible metal supply pipe (l

max = 2mt) is connected to the part oppo-

site the elbow union. Remember to put the

gaskets supplied at the two ends of the

elbow union.

When these parts are disassembled and

reassembled, always replace the gaskets

with new ones.

Once the appliance is installed, check that the gas pipe is not pinched or

damaged by mobile parts.

Important

: when installation is complete, check that all the gaskets are

leaktight using a soap-based solution, never a flame.

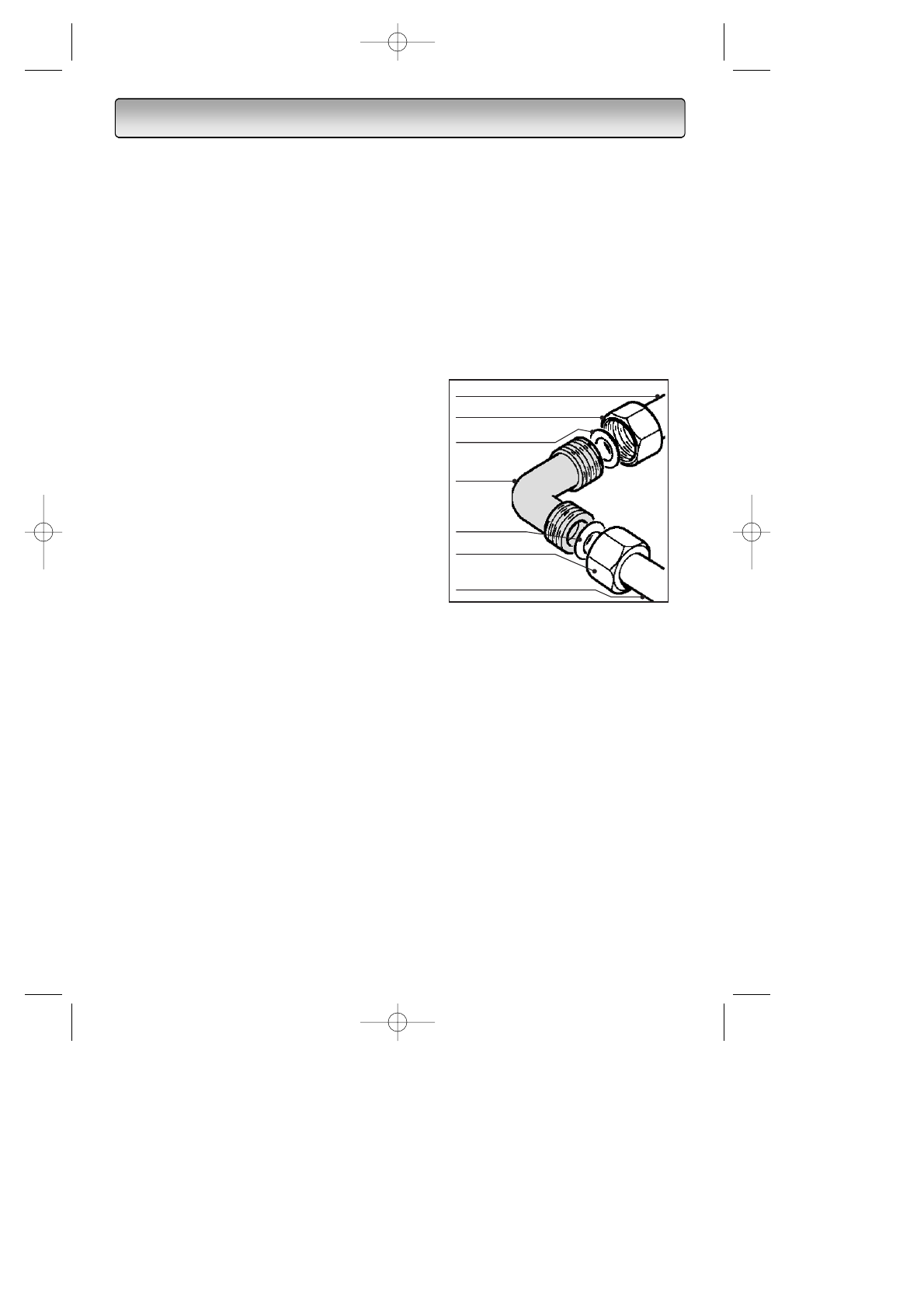

Pipe ramp

Nut

Gasket

Elbow union

Gasket

Nut

Rigid or flexible metal
supply pipe
