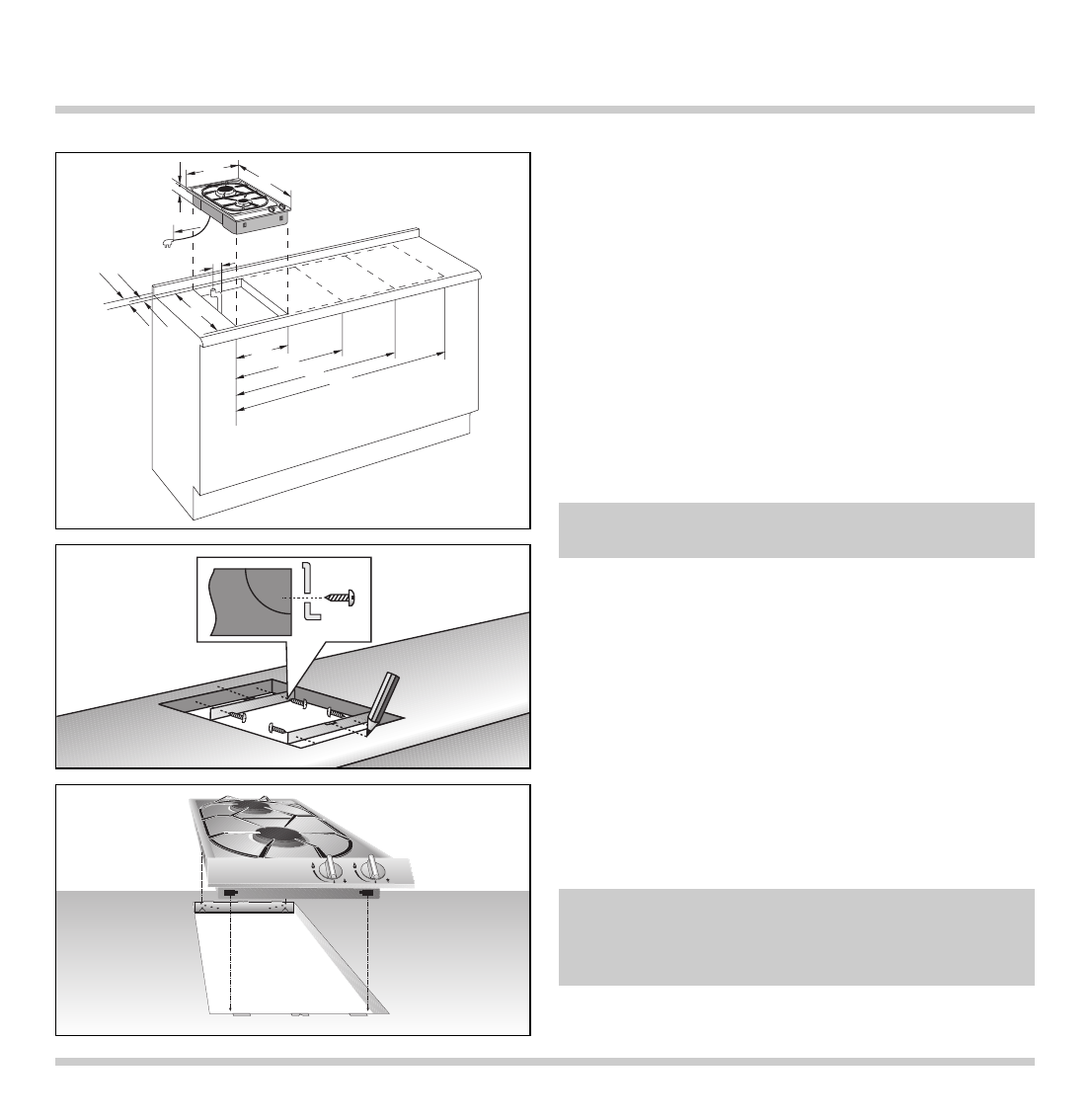

7.4 Installing the appliance

Produce the recess for one or several Vario
appliance(s) in your worktop.

Proceed as

indicated on the installation sketch and the
dimension table. The dimension table contains
details of the space requirement for the trim
between the appliances.

Important:

the angle between the cut surface

and the worktop must amount to 90° (Fig. 10).

Mark the centre of the recess exactly.

Secure the securing rails on the front and rear
edges of the recess. Make sure that the lugs of
the securing rails lie on the worktop and that the
centre marking of the securing rails is precisely
flush with the centre marking on the worktop
(Fig. 11).

Lower the appliance into the worktop.

Make

sure that the engaging lugs on the appliance
lie exactly on the clamping springs. Press the
appliance firmly into the worktop. The engaging
lugs on the appliance “snap" into the clamping
springs (Fig. 12).

Note:

When installing the appliance in granite

or marble worktops, have the holes produced by
a specialist or stick on the securing rails with a
temperature-resistant 2-component adhesive (metal
on stone).

Secure the cover on the appliance

before instal-

lation

. See assembly instructions VD 201-010.

Note:

Several appliances can also be installed in indi-
vidual recesses, as long as a minimum clearance
of 40 mm is kept to between the appliances.

1,4 m

55

8,5

288

510

490

1147

854

561

268

min. 35

min. 50

42,5

Fig. 10

Fig. 12

Fig. 11
