6.3 Installation

–

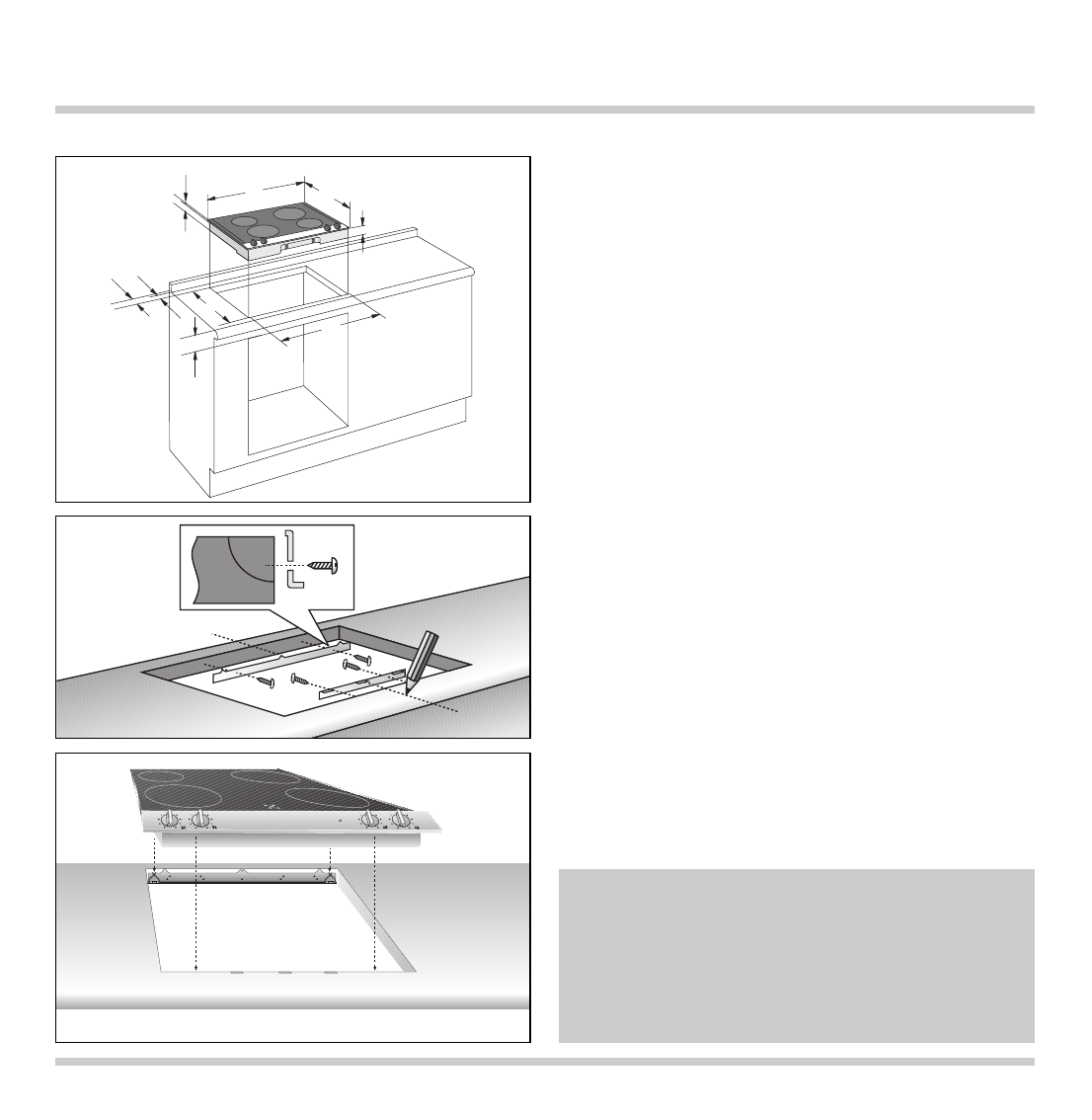

Produce the recess

for one or several Vario

appliance(s) in your worktop. Proceed as
indicated on the installation sketch and the
dimension table. The dimension table contains
details of the space requirement for the trim
between the appliances.

Important:

the angle between the cut surface

and the worktop must amount to 90° (Fig. 7).

–

Mark the centre

of the recess

exactly.

Secure

the longer securing rail on the rear edge and the
shorter securing rail on the front edge of the
recess. Make sure that the lugs of the securing
rail lie on the worktop and that the centre
marking of the securing rail is precisely flush
with the centre marking on the worktop (Fig. 8).

–

Lower the appliance into the worktop.

Make

sure that the engaging lugs on the appliance
lie exactly on the clamping springs. Press the
appliance firmly into the worktop. The engaging
lugs on the appliance “snap" into the clamping
springs (Fig. 9).

Note:

When installing the appliance in granite

or marble worktops, have the holes produced by
a specialist or stick on the securing rails with a
temperature-resistant 2-component adhesive (metal
on stone).
Several appliances can also be installed in indi-
vidual recesses, as long as a minimum clearance of
40 mm is kept to between the appliances.

Note:

Please note that a distance of 10 mm from the
base cabinet must be observed for safety reasons.

When an intermediate shelf is installed, the
distance from the bottom edge of the housing
trough and the shelf or the next combustible
item of furnishing must be at least 50 mm.

580

510

55

8,5

58

560

490

min. 3

5

min. 5

0

min. 6

0

Fig. 7

Fig. 8

Fig. 9
