12

GB

Installation

All the operations concerned with the installation
(electrical and gas connections, adaptation to type of
gas, necessary adjustments, etc.) must be carried out
by qualified technicians, in terms with the standards
in force. For specific instructions, kindly read the part
reserved for the installation technician.

Use

Use Gas burners (Fig. 1-3)

The ignition of the gas burner is carried out by putting
a small flame to the upper part holes of the burner,
pressing and rotating the corresponding knob in an
anti-clockwise manner, until the maximum position has
coincided with the marker. When the gas burner has
been turned on, adjust the flame according to need.
The minimum position is found at the end of the anti-
clockwise rotation direction.
For models with automatic/ simultaneous (with one
hand) ignition, it is sufficient to proceed as described
above using the corresponding knob. The electric spark
between the ignition plug and the burner provides the
ignition of the burner itself. After ignition, immediately
release the push-button and adjust the flame according
to need. For models with a thermoelectric safety system,
the burner is ignited as in the various cases described
above, keeping the knob fully pressed on the maximum
position for approximately 3/5 seconds. After releasing
the knob, make sure the burner is actually lit.
N.B.

- We recommend the use of pots and pans with a

diameter matching that of the burner, thus preventing
the flame from escaping from the bottom part and
surrounding the pot;

-  do not leave any empty pots or pans on the fire;
-  do not use any tools for grill-cooking on Crystal hobs.

When cooking is finished, it is also a good norm to close
the main gas pipe tap and/or cylinder.

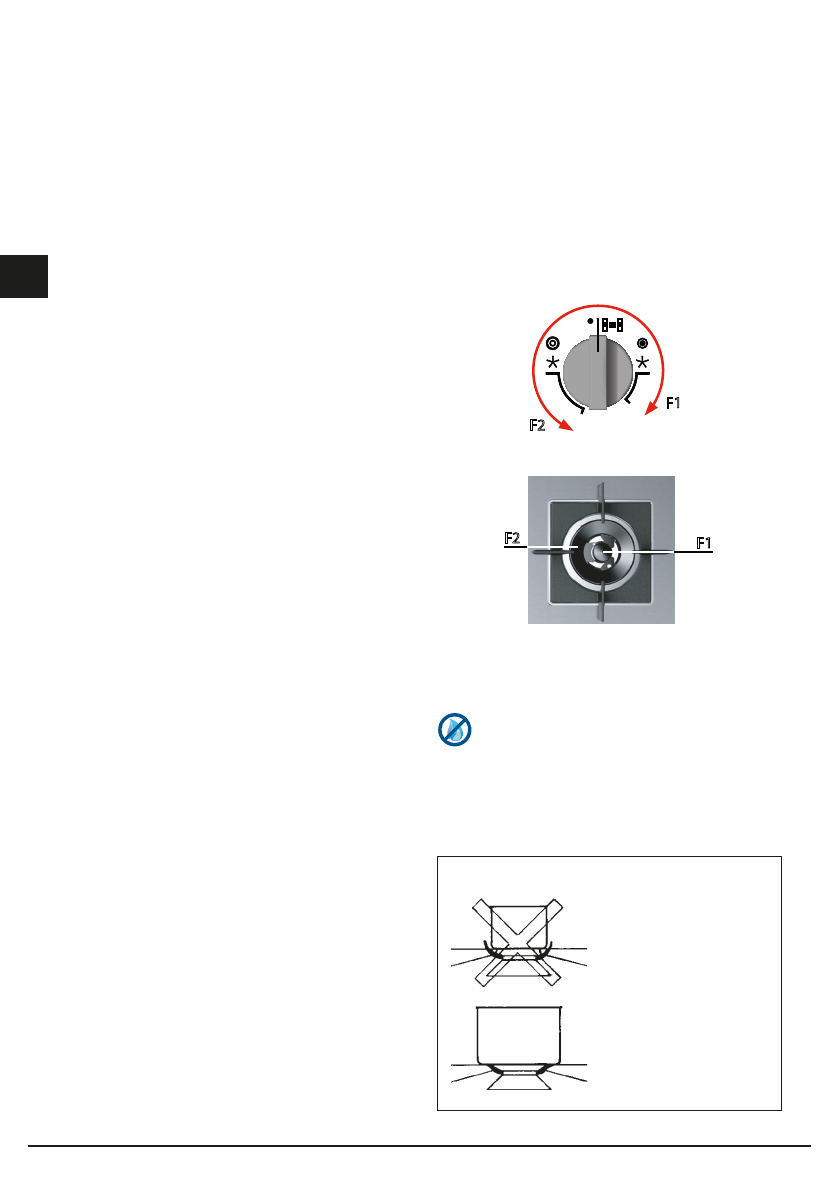

DWK models
Models SH 775 G DWK, SH 905 G DWK and SH 1124
G 2DWK have a Dual Wok burner. The centre flame (F1)
can be lit by pressing the knob and turning it clockwise
or the entire burner (F2) can be lit as shown in the figure
below.

Important

GAS PROTEKT

On floors with thermoelectric protection (Gas Protekt)
do not keep the ignite button pushed for more than 15
seconds. If the burner has not ignited after 15 seconds,
open the door of the room and wait at least one minute
before making a further attempt.

wok

Ø 20-32

fast

Ø 20-26

semifast

Ø 14-20

auxiliary*

Ø 10-14

*with reduction grid

GAS

Fig. 1

Instructions for use

F1

F2

F1

F2

F1

F2

F1

F2
