Instructions for the installer

24

2.

POSITIONING OF HOB

The following operation requires building and/or carpentry work so must

be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry,
metal, solid wood or plastic laminated wood as long as they are heat

resistant (T 90°C).
Never use silicone or other insulating products when installing the

appliance; use only the rubber gasket provided.

2.1.1

Attachment to support structure

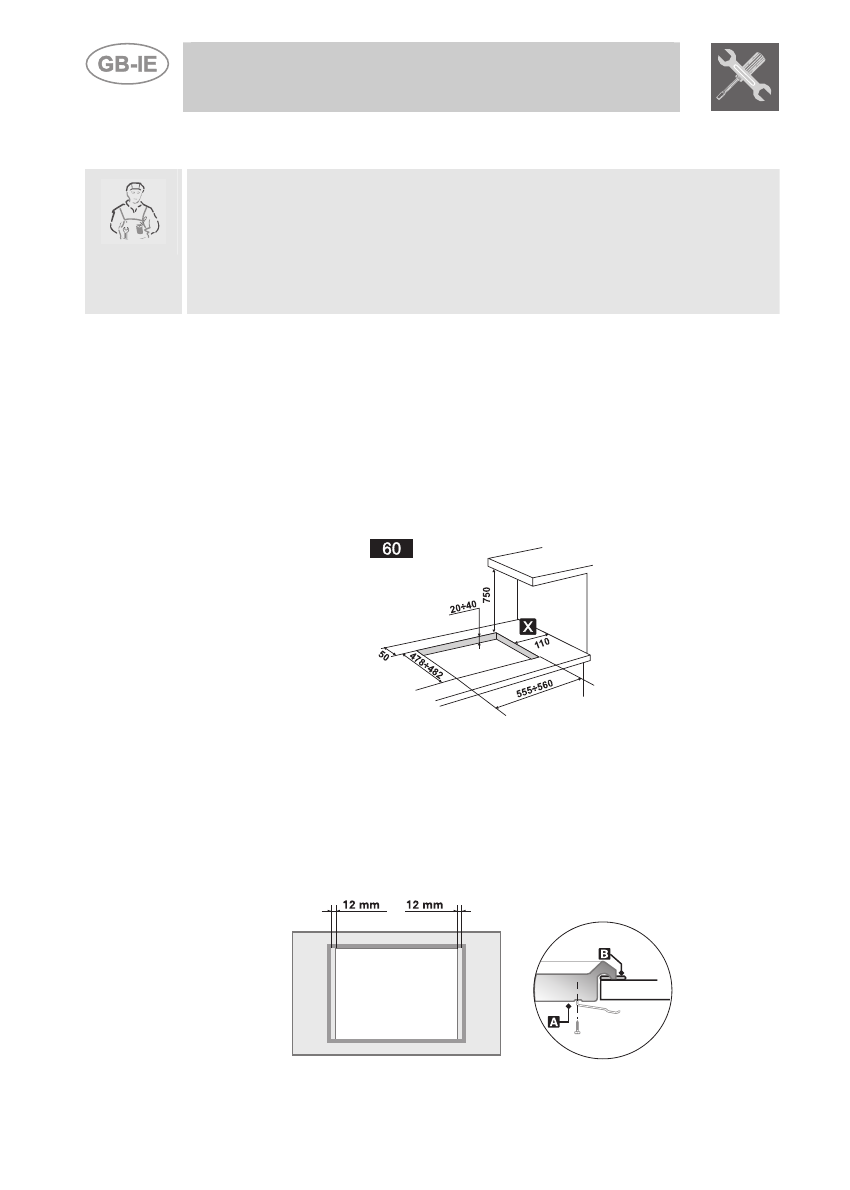

Create an opening with the dimensions shown in the figure in the top
surface of the counter, keeping a minimum distance of 50 mm from the
rear border.
This appliance can therefore be mounted against walls higher than the
work surface on condition that a certain distance “X” be kept between the
appliance and the wall as shown in the figure so as to avoid damage from
overheating.
Make sure there is a minimum of 750 mm between the hot plate flames
and any shelf that may be installed directly above them.

Accurately position the gasket provided all around the outer edge of the
hole in the top surface as shown in the figures below, pressing it down so
as to make it adhere properly. For measurements, refer to the figure
depending on the hob model to be installed, bearing in mind that in both
models the front and rear sides must skim the hole. Secure the hob to the
counter with brackets A (supplied). Carefully trim any excess from border
B of the gasket. The distances in the following drawing refer to the hole
on the inner side of the gasket.
