TECHNICAL PASSPORT

ENGLISH

Gas hob

without allowing any overlapping
before the installation.

Place the hob on the counter hole to

center the installation hole.

Secure the unit on the counter by

using the installation sheet and screws.

Please  review  the  following  figures

carefully so that the hob will be
installed properly.

6.2.  I N S TA L L I N G  T H E

A P P L I A N C E

Check that the appliance is in a good

condition after having removed the out-
er packaging and internal wrappings
from around the various loose parts.

In case of doubt, do not use the ap-

pliance and contact qualified personnel.

Never leave the packaging materi-

als (cardboard, bags, polystyrene foam,
nails, etc.) within children’s reach since
they could become potential sources of
danger.

The measurements of the opening

made in the top of the modular cabinet
and into which the hot plate will be in-

stalled are indicated in either (fig. 1.)

Always comply with the measure-

ments given for the hole into which the
appliance will be recessed.

The hot plate has a special seal

which  prevents  liquid  from  infiltrating

into the cabinet.Strictly comply with the
following instructions in order to cor-
rectly apply this seal:

Â

Take off all the movable parts of

the hob.

Â

Cut the seal in 4 parts of the nec-

essary lenght to positionning it on the 4

edges of the crystal.

Â

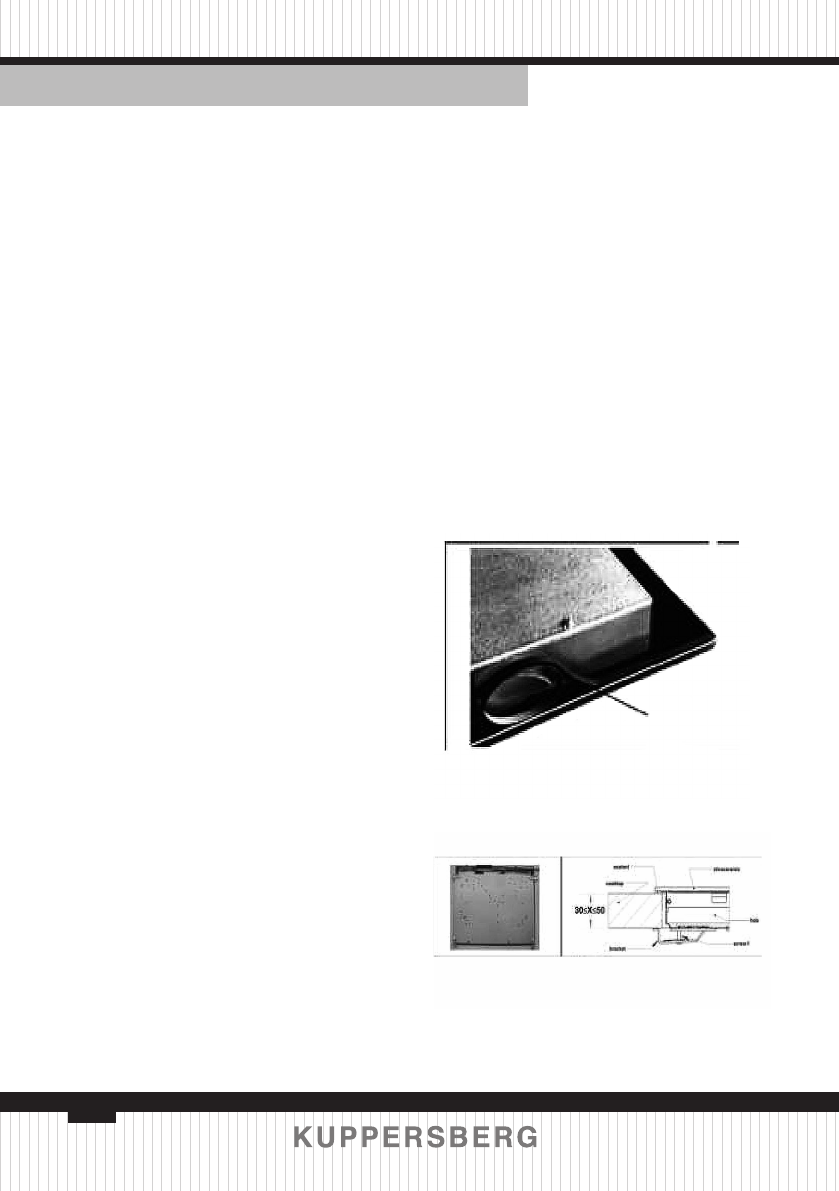

Overturn the hot plate and cor-

rectly  position  seal  «E»  (fig.  2)  under

the edge of the hob itself, so that the

outer side of the seal perfectly matches

the outer perimetral edge of the hob.

The ends of the strips must fit together

without overlapping.

Â

Evenly  and  securely  fix  the  seal

to the hob

Â

Fit the hot plate into the hole in

the cabinet and lock it in place with the

relative screws of the fixing hooks (see

fig.3 )

E

Fig.2

Fig.3
