Building In

These hobs can be inserted in a

built-in kitchen unit whose depth is
between 550 and 600 mm. The hobs

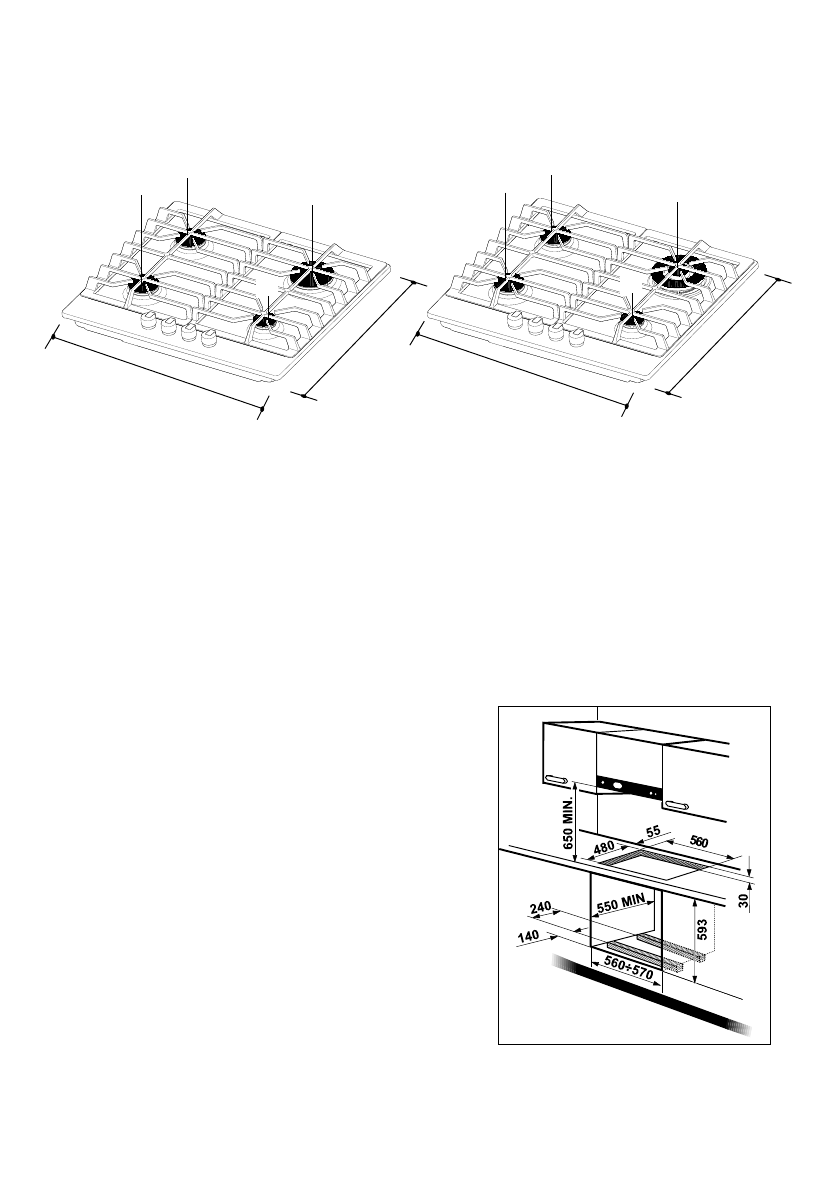

dimensions are shown in Fig. 4.

The edge of the cut out must have a

minimum distance from the rear wall of
55 mm.

If there are side walls, or sides of the

furniture unit near the hob, the cut out
edges must have a minimum distance of
150 mm.

Hanging forniture units or hoods

must be placed at 650 mm. minimum
from the hob.

Fitting the hob to the worktop

Carry out the building in of the hob

as follows:
1. Place the seals supplied with the hob

on the front edge of the cut out.
Then, place them at 11 mm from the
side edges and at 10 mm from the
rear edge, as shown in the diagram,

A

= Auxiliary burner

SR

= Semi-rapid burner

R

= Rapid burner

TC

= Triple Crown burner

Fig. 5

D i m e n s i o n s   a r e   g i v e n   i n
millimeters

R

SR

A

SR

510

594

TC

SR

A

SR

510

594

EHG 6415

EHG 6833-6835-6815

Fig. 4
