The appliance is designed to be

connected to 230 V monophase
electricity supply.

The connection must be carried out

in compliance with the laws and
regulations in force.

Before the appliance is connected:
1) check that the main fuse and the

domestic installation can support the
load (see the rating label);

2) check that the power supply is

properly earthed in compliance with the
current rules;

3) check the socket or the double

pole switch used for the electrical
connection can be easily reached with
the appliance built in the forniture unit.

The appliance is supplied with a

connection cable. This has to be
provided with a proper plug, able to
support the load marked on the
identification plate.  To connect the plug
to the cable, follow the recommendation
given in Fig. 3a. The plug has to be fitted
in a proper socket.

If connecting the appliance directly

to the electric system, it is necessary
that you install a double pole switch
between the appliance and the
electricity supply, with a minimum gap
of 3 mm. between the switch contacts
and of a type suitable for the required
load in compliance with the current
rules.

The connection cable has to be

placed in order that, in each part, it
cannot reach a temperature 50°C
higher than room temperature.

The brown coloured phase cable

(fitted in the terminal block contact
marked with "L") must always be
connected to the network phase.

Electrical Connection

Remplacement of the voltage
cable

The connection of the voltage cable

to the appliance's terminal block is of
type "Y". This means that its
replacement requires the specific
equipment of a technician. In this case,
only cable type H05V2V2-F T90 must
be used. The cable section must be
suitable to the voltage and the working
temperature. The yellow/green earth
wire must be approximately 2 cm.

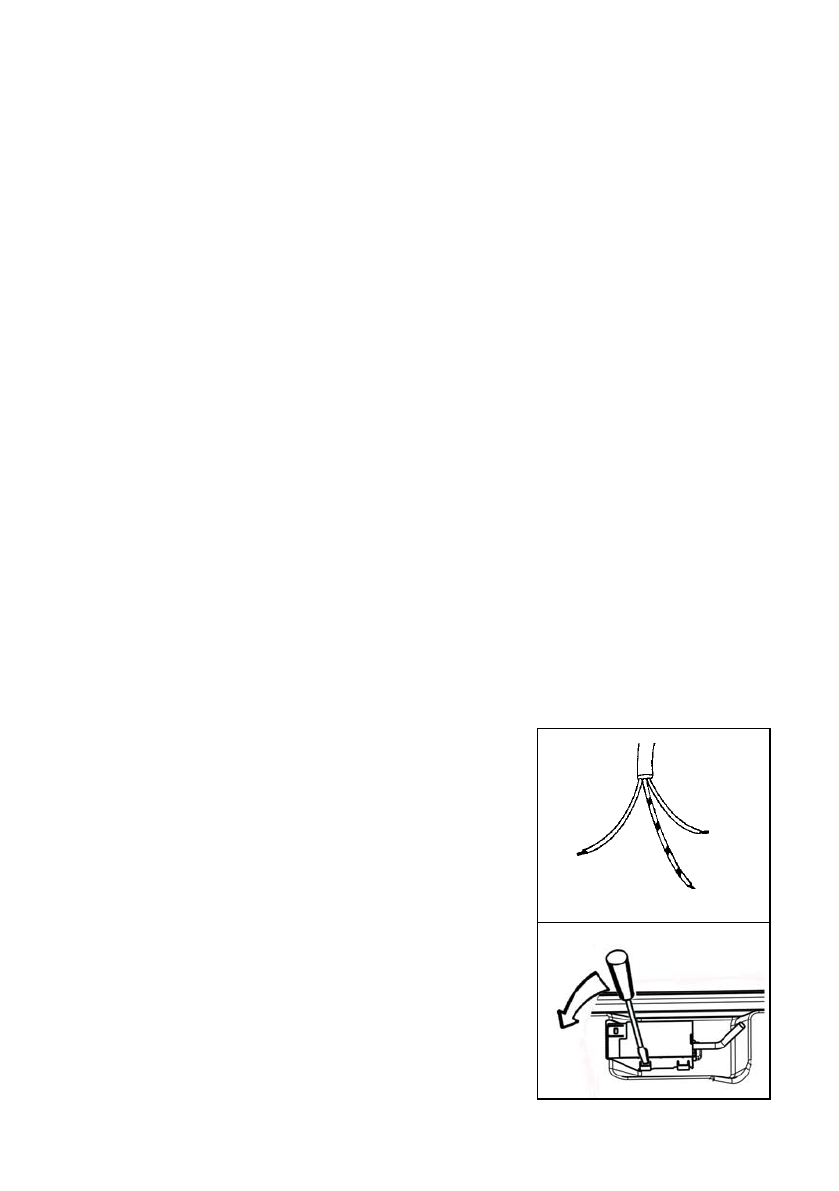

longer than the phase wires (Fig. 3-a).

To open the terminal block and reach

the terminals, proceed as follows:

z

insert the point of a screwdriver into
the visible protrunding part of the
terminal block;

z

exert a light pressure and lift (Fig. 3-b)

Fig. 3-b

Earth

(yellow/green))

Neutral

Fig. 3-a
