Insert the hex wrench through the hole in the gear case and rotate the receiver

–

washer (4) until it is locked with the hex wrench.

Loosen the nut (1) (left-hand thread) with the socket wrench and remove the nut

–

(1), cup (2), and clamp washer (3).

Turn the machine upside down, and you can replace the cutter blade or nylon

cutting head easily.

Mounting of cutterblade

With the hex wrench still in place.

Mount the cutter blade onto the shaft so that the guide of the receiver washer (4)

–

fits in the arbor hole in the cutter blade. Install the clamp washer (3), cup (2), and

secure the cutter blade with the nut (1).

[Tightening torque: 20 - 30 N·m]

NOTE:  Always wear gloves when handling the cutter blade.

NOTE:  The cutter blade-fastening nut (with spring washer) is a consumable part.

If there appears any wear or deformation on the spring washer, replace the

nut.

Hex wrench

Hex wrench

Mounting of nylon cutting head

The clamp washer (3), cup (2), and nut (1) are not necessary for mounting the

–

nylon cutting head. The nylon cutting head should go on top of the receiver

washer (4).
Insert the hex wrench through the hole in the gear case and rotate the receiver

–

washer (4) until it is locked with the hex wrench.
Then screw the nylon cutting head onto the shaft by turning it counterclockwise.

–

Remove the hex wrench.

–

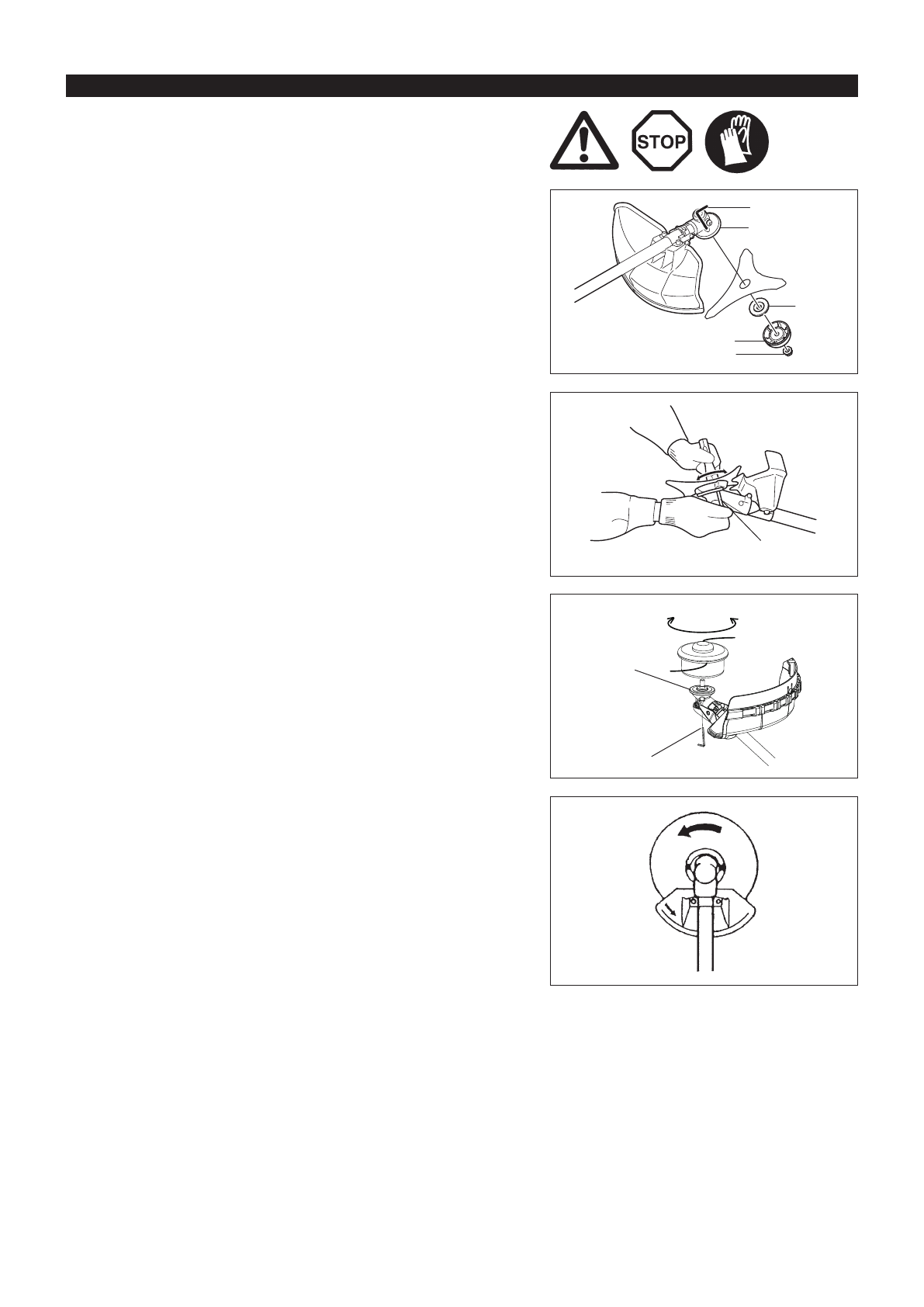

MOUNTING OF CUTTER BLADE OR NYLON CUTTING HEAD

12

Rotation

Make sure that the blade is the left way up.

–

Loosen

Tighten

Hex wrench
