11

personal injury.

Fig.8

Mount the guard by fitting it on to the motor housing so
that the Nylon cord is not pinched between the guard
and the motor housing, and then secure it with two
screws. Before starting the trimmer, take away the cutter
cover from the cord cutter.

Installing or removing the Nylon cutting head

WARNING:

•

Before installing or removing the Nylon cutting
head (both spool cover and spool, and
hereafter called this way), make sure that the
tool is switched off and the battery cartridge is
removed from the tool.

 Failure to switch off the

tool and remove the battery cartridge may cause a
personal injury.

CAUTION:

•

While installing or removing the Nylon cutting
head, be careful not to contact the nylon cord
cutter provided on the guard.

 Contact with the

cutter could result in personal injury.

Fig.9

Fig.10

To remove the Nylon cutting head (spool and spool
cover) from the string trimmer, press in the latches
forcefully on both sides of the spool cover and raise it.

Fig.11
NOTICE:

•

Make sure that the spring is installed inside the
spool holder.

To install a cord-newly-wound Nylon cutting head (spool
and spool cover) on the string trimmer, align the Nylon
cord eyehole with the notch of the Nylon cutting head
installation port on the trimmer and then press in it until a
click is heard.

Winding a new Nylon cord on the spool

Fig.12

Remove the spool from the spool cover and take off the
remaining used Nylon cord from the spool.

Fig.13

Insert a Nylon cord to the retainer shown in the figure.

Fig.14

Wind it tightly flat around the spool in the direction of
arrow on the spool so that the wound Nylon cord surface
appears uniform over the winding area.

Fig.15

Temporarily fix a Nylon cord at the notch shown in the
figure.

Fig.16

Bring the Nylon cord through the Nylon cord eyehole in
the spool cover.

Fig.17

After installing the Nylon cutting head, make sure that
the Nylon cord comes out by pressing the spool and
pulling the Nylon cord.

OPERATION

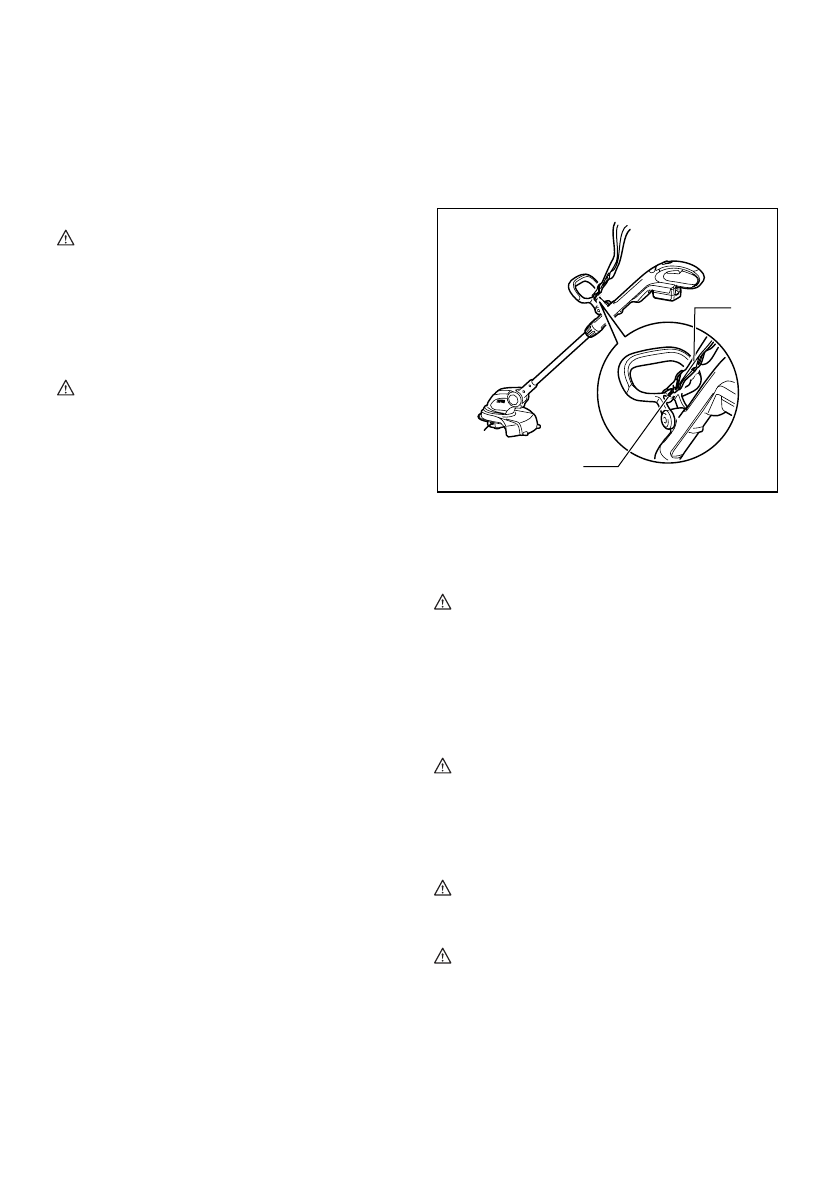

Attachment of shoulder strap

1

2

012395

Hook the shoulder strap in a hole in the front grip.

OPERATION

CAUTION:

•

Do not cut high grass at a time.

 Cutting high

grass at a time near the root may cause the
trimmer motor spindle to be entangled by grass
which leads to the motor under overload, resulting
in damage to the trimmer.

Fig.18

Fig.19

CAUTION:

•

Use the trimmer without getting the spool into a
contact with the ground surface.

 Using the spool

contacting the ground surface may cause the motor
under overload resulting in damage to the trimmer.

Fig.20

CAUTION:

•

Do not force the trimmer in densely growing grass.

Fig.21

CAUTION:

•

Do not use the trimmer as if you dig out the ground
with it

1. Shoulder strap
2. Hook
