4. Using your Blood Pressure Monitor

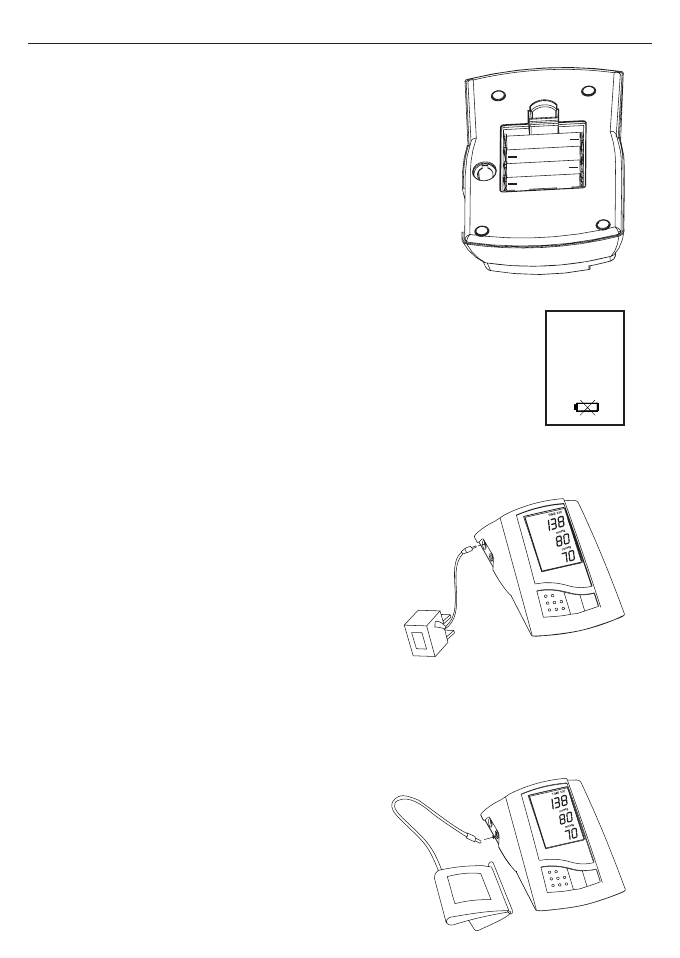

4.1. Inserting the batteries

Insert batteries immediately after unpacking the device. The
battery compartment is located on the bottom of the device
(see illustration).

a)  Remove cover as illustrated

b)  Insert the batteries (4 x size AA 1,5V), thereby

observing the indicated polarity.

c)  If the battery warning appears in the display, the

batteries are empty and must be replaced.

Attention!

• After the battery warning appears, the device is blocked until

the batteries have been replaced.

• Please use «AA» Long-Life or Alkaline 1.5 V Batteries. The use

of 1.2 V Accumulators is not recommended.

• If the blood pressure monitor is left unused for long periods,

please remove the batteries from the device.

4.2. Using a mains adapter (special accessory)

This blood pressure monitor can be operated with the Microlife mains adapter (output 6 V DC / 600 mA,
DIN plug).

a) Plug the plug into the socket at the back of the

instrument.

b) Plug the mains adapter into a 230 V or 110 V power

socket. Test that power is available by pressing the
O/I button.

Note:

• No power is taken from the batteries while the mains adapter is connected to the instrument.
• If the mains voltage is interrupted during the measurement (e.g. by accidental removal of the mains

adapter from the mains socket), the instrument must be reset by removing the plug from its socket and
re-inserting the connections.

• Please consult a specialist dealer if you have questions relating to the mains adaptor.

4.3. Cuff connection

Insert the cuff tube into the opening provided on the left
side of the instrument, as shown in the diagram.

+

+

+

+
