Before you start

5

5

Before you start

Connection

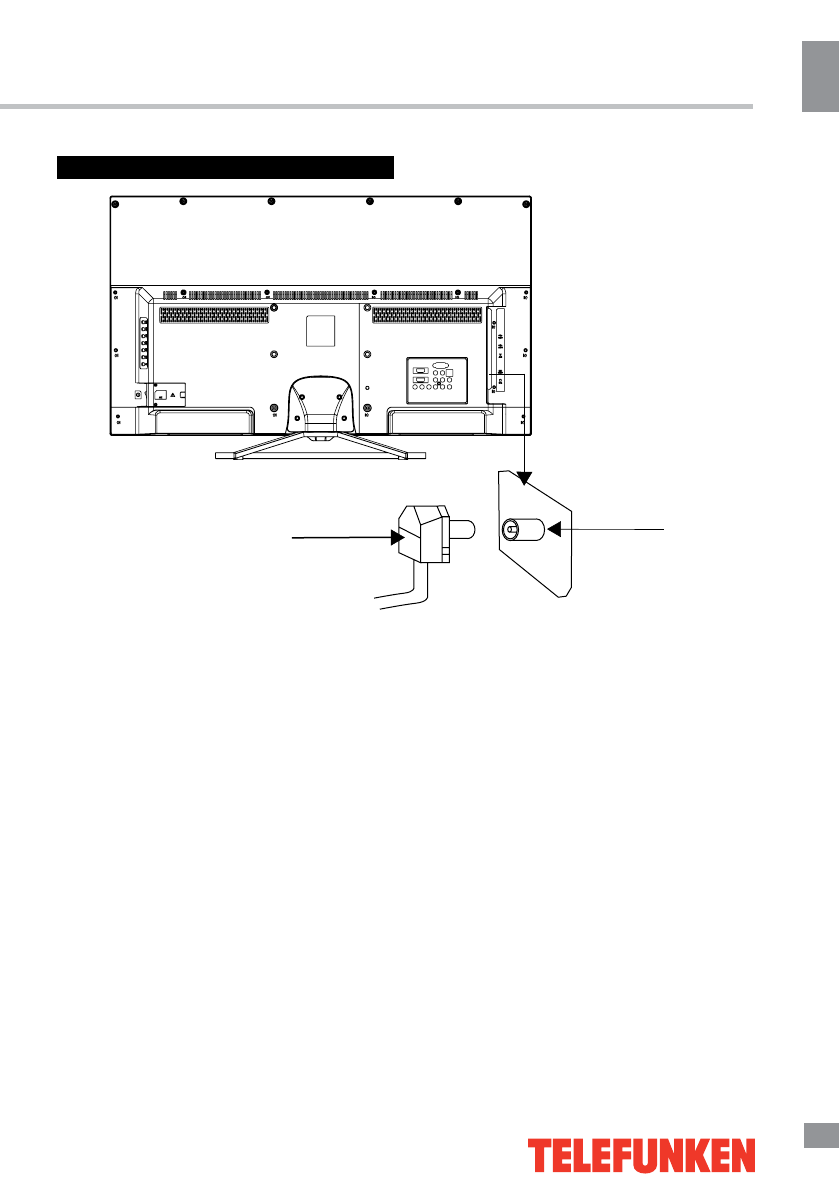

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

•  Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks ‘L’ and ‘R’.

•  Connect the video source to the

Composite video jack by RCA cable (it is
shared with “Y” component jack).

•  Composite output is intended for

connecting external devices with AV input
interface (e.g. monitors, other TVs, etc.).

•  Component input YPbPr/YCbCr is

intended to receive component video signal
from the external device. Connection is made
with the help of a special component cable. To
receive audio signal for component video, please
use Left and Right audio inputs of this unit

•  Plug the power cable in the electric outlet,

making sure the current voltage is supported.

•  When using the LED as a computer

screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).

•  If the video source has a HDMI output

jack, you can connect the signal to the
monitor by the HDMI cable (not included).
Use the HDMI-1(MHL) input to connect your
smartphone via a special cable to see the
digital content on the TV screen.

•  Coaxial output is intended for transmitting

multi-channel sound to an external decoder
(e.g. in 5.1-CH format). Coaxial cable should
be used for connection.

•  PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

•  Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector
