Before you start

5

5

Before you start

Connection

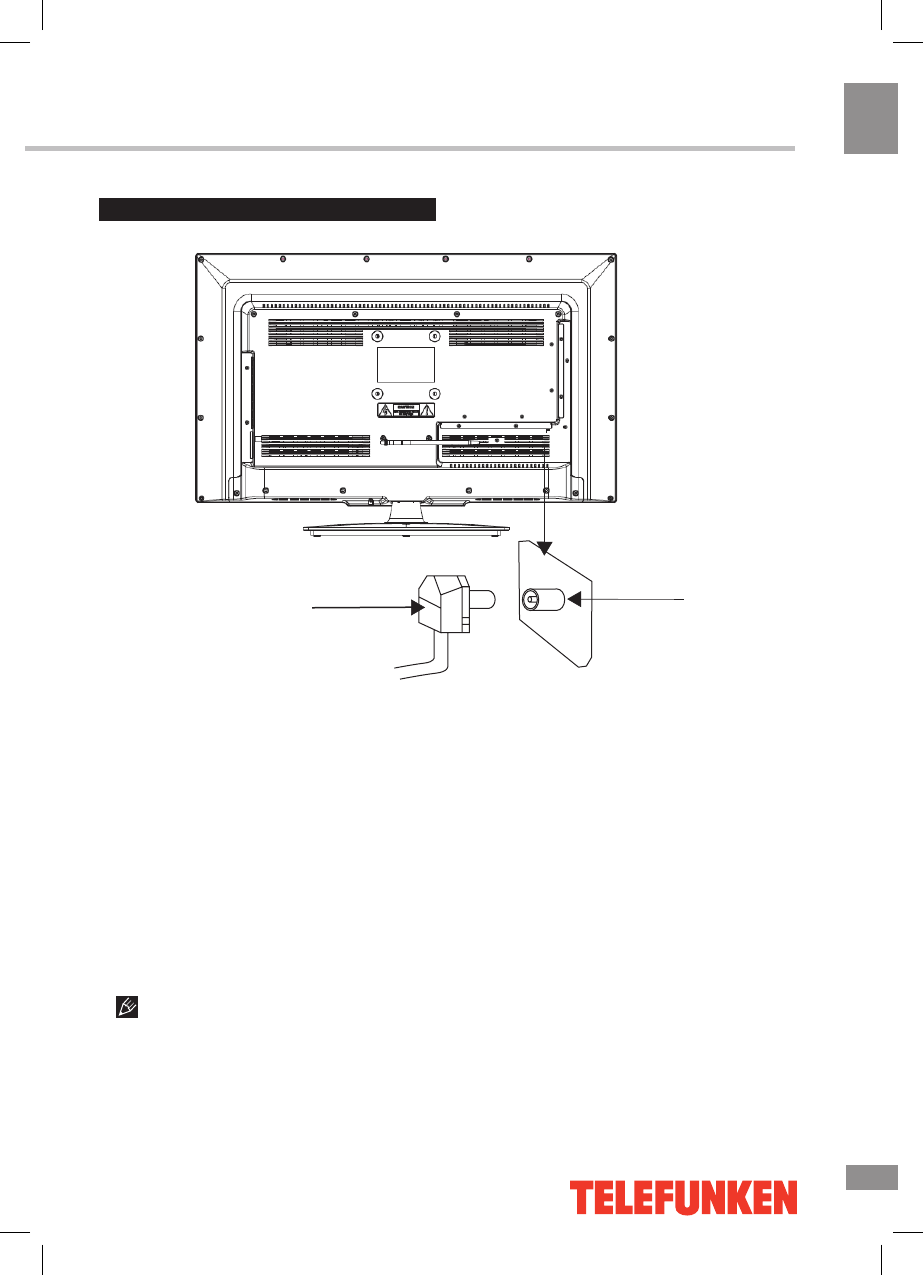

Outdoor Antenna Connection

Use 75

Ω

coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

•  Connect the audio and video sources

(Including DVD, VCDR, CAMCORDER and
etc.) to the AV input using the AV cable.

•  Component input YPbPr is intended to

receive component video signal from the
external device. Connection is made with the
help of a special component cable. To receive
audio signal for component video, please use
the AV input.

  Component and AV inputs cannot be

used at the same time as they share one audio
channel.

•  Plug the power cable in the electric outlet,

making sure the current voltage is supported.

•  When using the LED as a computer

screen, connect the PC to the VGA jack
from the monitor using the proper cable (not
included).

•  This unit has PC audio in jack. Connect

this jack to PC main unit with a proper audio
cable in PC mode and adjust the volume to
what you want.

•  If the video source has a HDMI output

jack, you can connect the signal to the monitor
by the HDMI cable (not included).

•  Connect an external device (e.g., VCR-/

DVD-recorder) to the proper Audio/Video
output jacks of this unit with AV RCA cable.

•  Digital audio output is intended for

transmitting multi-channel sound to an external
decoder (e.g. in 5.1-CH format). Coaxial cable
should be used for connection.

•  PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector
