Installation

5

5

Installation

Connection

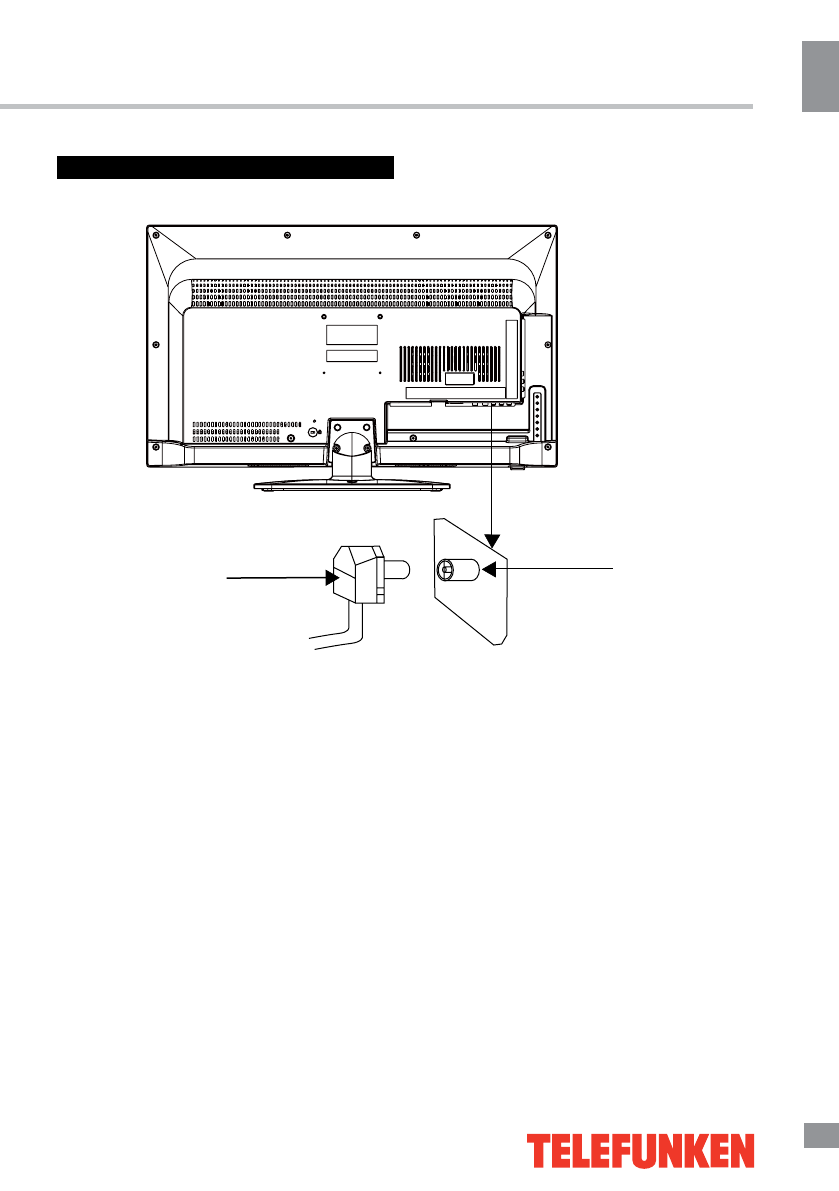

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the unit casing.

Other connections

•  Connect audio and video sources

(Including DVD, VCDR, CAMCORDER and
PC) to the AV input using the included AV
cable.

•  Plug the power cable in the electric outlet,

making sure the current voltage is supported.

•  When using the LED as a computer

screen, connect the PC to the VGA jack from
the monitor using the VGA cable (not included).

•  This unit has PC audio in jack. Connect

this jack to PC main unit with related audio
cable in PC mode and adjust the volume to
what you want.

•  If the video source has a HDMI output

jack, you can connect the signal to the TV by
the HDMI cable (not included). Use the HDMI-
1(MHL) input to connect your smartphone via
a special cable to see the digital content on the
TV screen. Support of all devices with the MHL
function is not guaranteed.

•  S/PDIF coaxial output is intended for

transmitting multi-channel digital sound to
an external decoder (e.g. in 5.1-CH format).
Coaxial cable should be used for connection
(not included).

•  Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

•  PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector
