Before you start

5

5

Before you start

Connection

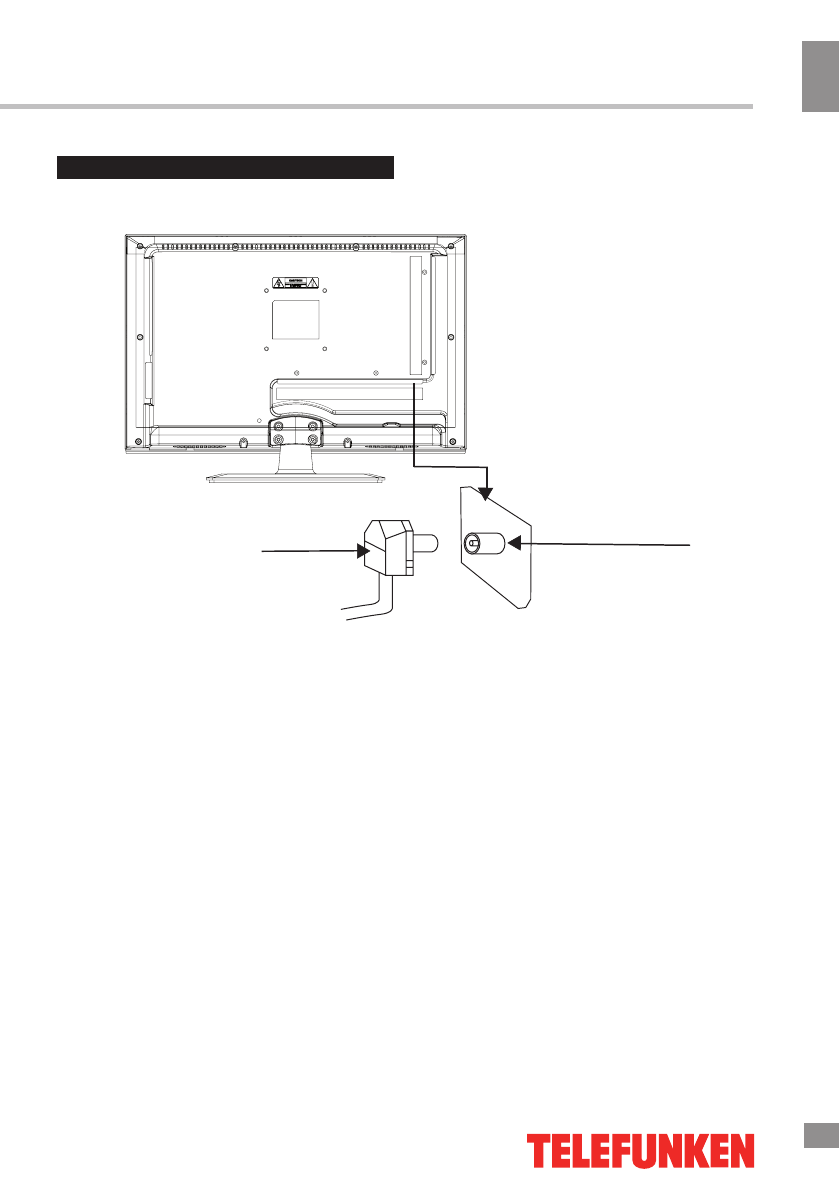

Outdoor Antenna Connection

Use 75

Ω

coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

•  Connect a TV or CATV antenna to the

antenna jack.

•  Connect a video source to the Composite

video input jack with RCA cable.

•  Connect an audio source to the proper

Audio input jacks (left and right).

•  When using the unit as a computer screen,

connect the PC to the PC jack of the unit by
the relevant cable.

•  Connect PC audio input to PC main unit

with related audio cable in PC mode.

•  If the video source has a HDMI output

jack, you can connect the signal to the unit by
HDMI cable (not included).

•  Component input YPbPr is intended to re-

ceive component video signal from the external
device. Connection is made with the help of
a special component cable (not included). To
receive audio signal for component video, please
use Left and Right audio inputs of this unit.

•  Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

Antenna cable connector

75 Ohm co-axis cable

TVRF antenna jack
