Before you start

5

5

Before you start

Connection

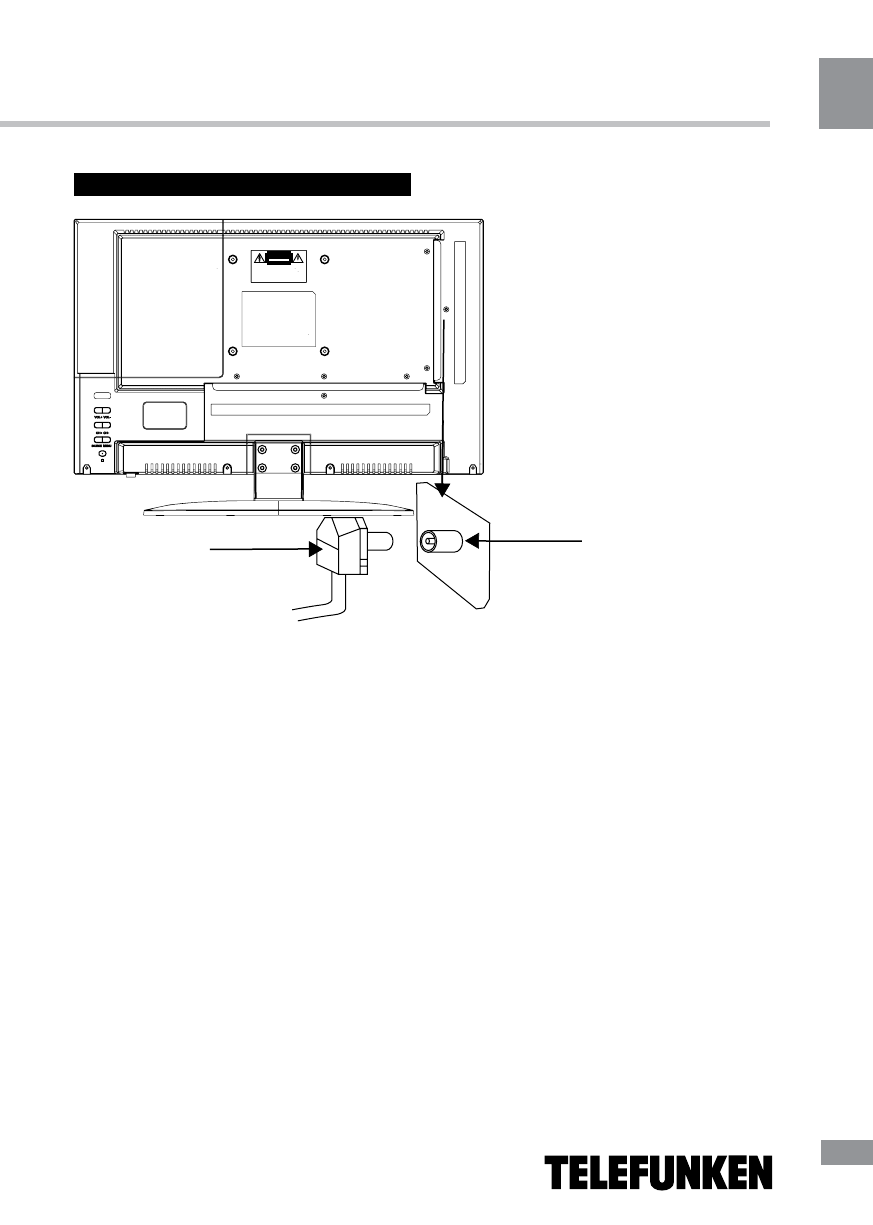

Outdoor Antenna Connection

Use 75

Ω

coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

•  Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks ‘L’ and ‘R’.

•  Connect the video source to the

Composite video jack by RCA cable.

•  If the video source has a SCART terminal

jack, you can connect the signal to the monitor
by the SCART cable (not included). SCART
can be used as both input and output.

•  Component input Y/Pb/Pr is intended

to receive component video signal from the
external device.

•  Connect the power cord to the DC

adaptor, then connect the adapter to the DC

power jack of this unit.

•  When using the LED as a computer

screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).

•  This unit has PC audio in jack. Connect

this jack to PC main unit with related audio
cable in PC mode and adjust the volume to
what you want.

•  If the video source has a HDMI output

jack, you can connect the signal to the monitor
by the HDMI cable (not included).

•  Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

•  Coaxial output is intended for transmitting

multi-channel sound to an external decoder
(e.g. in 5.1-CH format).

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

CAUTION:

TO PREVENT ELECTRICAL SHOCK.

DO NOT REMOVE THIS COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

DO NOT OPEN.

RISK OF ELECTRIC SHOCK.

CAUTION!
