English - 8

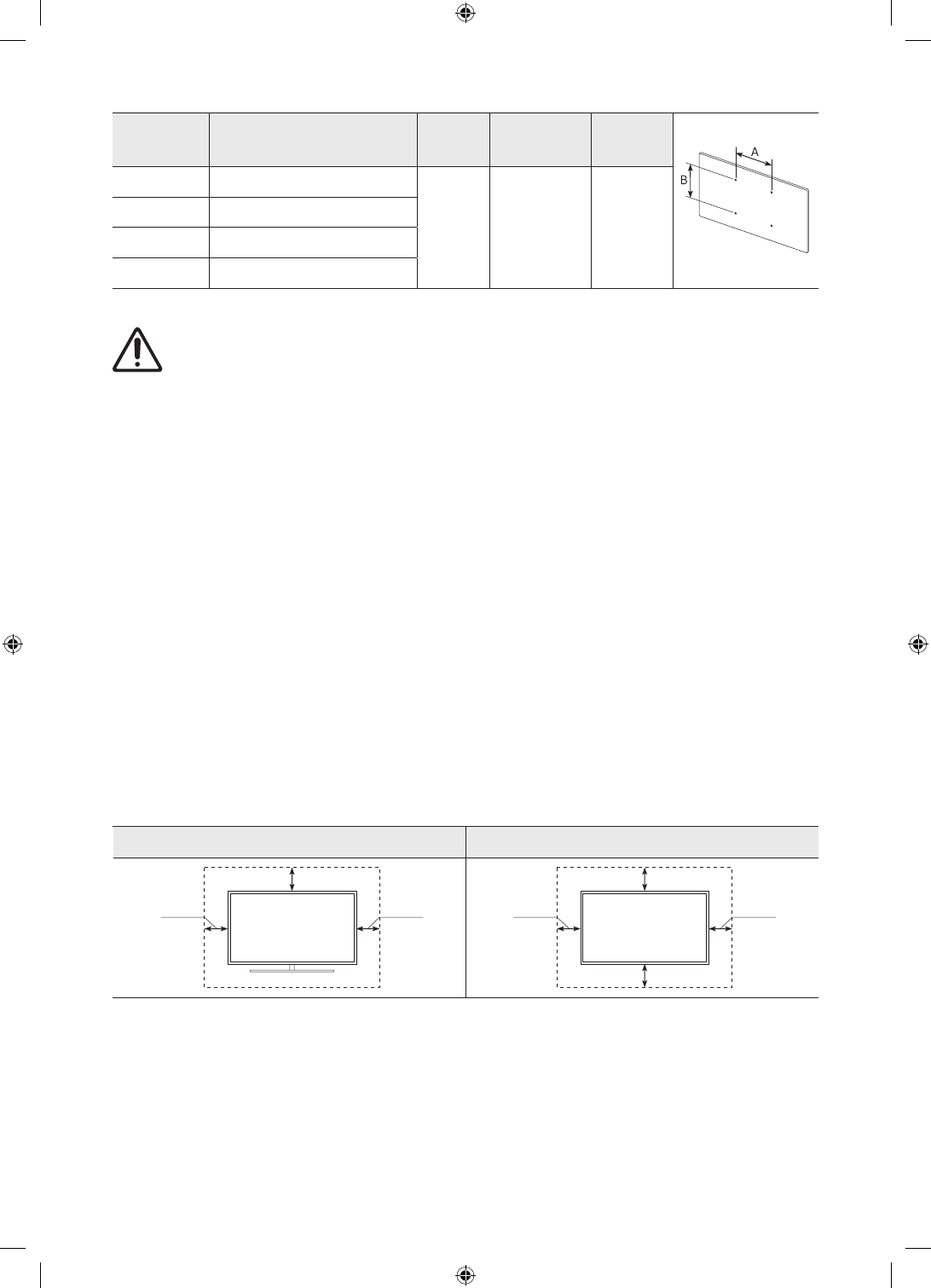

TV size in

inches

VESA screw hole specs (A * B)

in millimetres

C (mm)

Standard

Screw

Quantity

43-55

200 x 200

20-22

*39-41

M8

4

65

400 x 300

75

400 x 400

82

600 x 400

*: These specifications are supported by TU8500, TU8510, TU8570.

Do not install your wall mount kit while your TV is turned on. This may result in personal injury from
electric shock.

• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard

screw specifications. Screws that are too long may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws

may differ depending on the wall mount specifications.

• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to

personal injury. Samsung is not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount

is used or when the consumer fails to follow the product installation instructions.

• Do not mount the TV at more than a 15 degree tilt.

• Always have two people mount the TV onto a wall.

–

For 82 inch or larger models, have four people mount the TV onto a wall.

Providing proper ventilation for your TV

When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet
sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem
with the product caused by an increase in its internal temperature.

• When you install your TV with a stand or a wall mount, we strongly recommend you use parts provided by

Samsung Electronics only. Using parts provided by another manufacturer may cause difficulties with the
product or result in injury caused by the product falling.

Installation with a stand

Installation with a wall mount

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm
