Co n n e ct i n g  Op t i o n a l  Eq u i p m e n t

Using the following instruction, you can connect a wide range of optional equipment to

your TV set. (Connecting cables are not supplied).

To avoid picture distorsion, do not connect external equipment to connectors

A

 and

C

 at

the same time.

Connect ing a VCR:

To connect a VCR, please refer to the section “Connecting the aerial and VCR” of this instruction
manual. We recommend you connect your VCR using a scart lead. If you do not have a scart
lead, tune in the VCR test signal to the TV programme number “0” by using the “Manual
Programme Preset” option. (for details of how to manually programme these presets, see page
13, step a).
Refer to your VCR instruction manual to find out how to find the output channel of your VCR.

Connect ing a VCR t hat  support s Smart link:

Smartlink is a direct link between the TV set and the VCR. For more information on
Smartlink, please refer to the instruction manual of your VCR.
If you use a VCR that supports Smartlink, please connect the VCR by using a Scart lead to
the Scart

:

2/

q

F

.

If  you have connect ed a decoder t o t he Scart

:

2/

q

 or t hrough a VCR

connect ed t o t his Scart :

Select the “Manual Programme Preset” option in the “Set Up” menu and after entering in the
“Decoder**” option, select “On” (by using

or

). Repeat this option for each scrambling

signal.

**This option is only available depending on the country you have selected in the
   “Language/Country” menu.

Addit ional Inf ormat ion

continued...

1

2

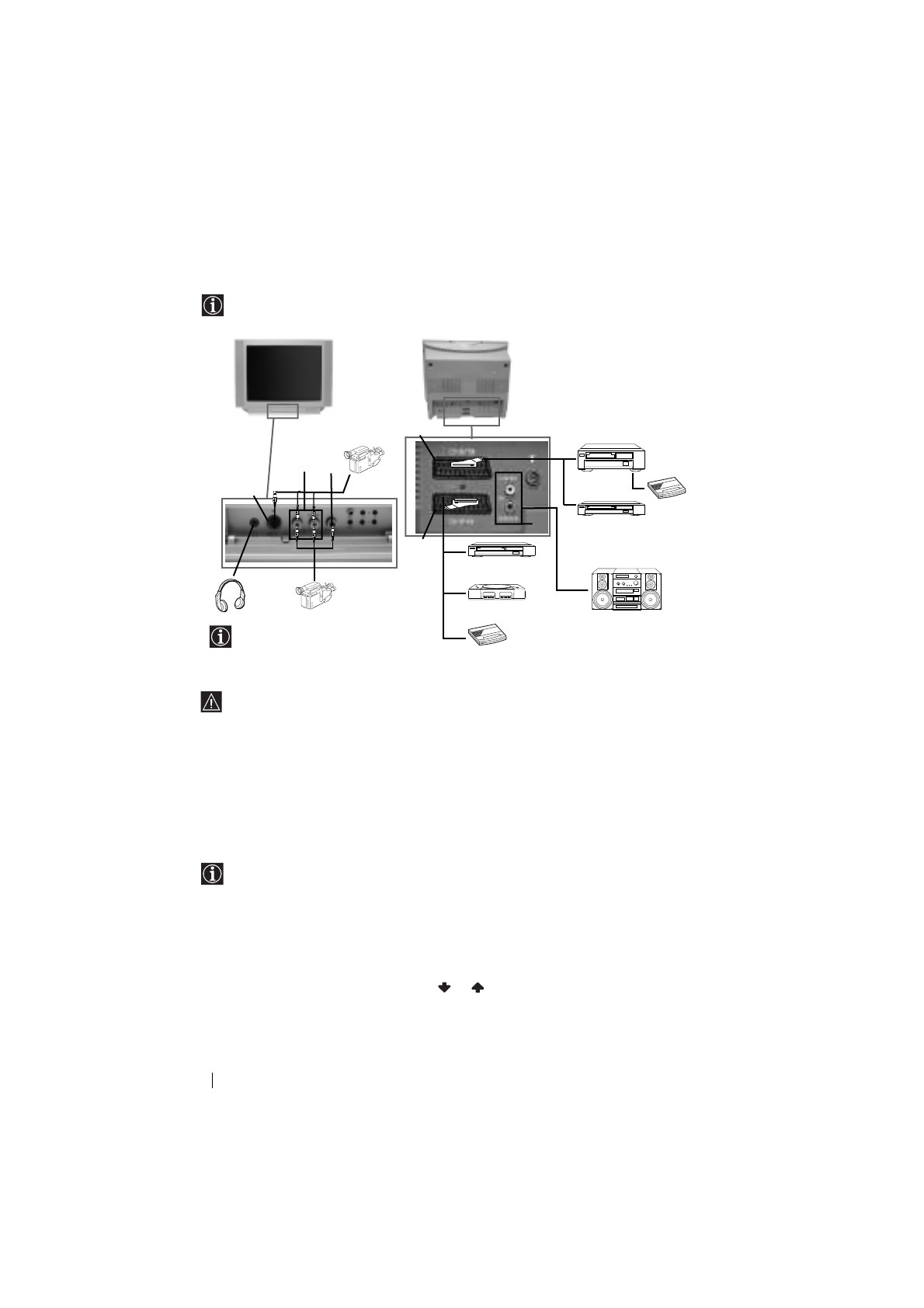

“PlayStation”*

Hi-fi

VCR

DVD

VCR

DVD

C

B

A

F

D

E

VCR

Decoder

S VHS/Hi8/

DVC

camcorder

8mm/Hi8/

DVC

camcorder

* “PlayStation”

is a product of Sony

Computer Entertainment, Inc.

*

“PlayStation

” is a trademark of Sony

Computer Entertainment, Inc.

Decoder

When you connect the headphones,
the TV speakers will automatically
be muted
