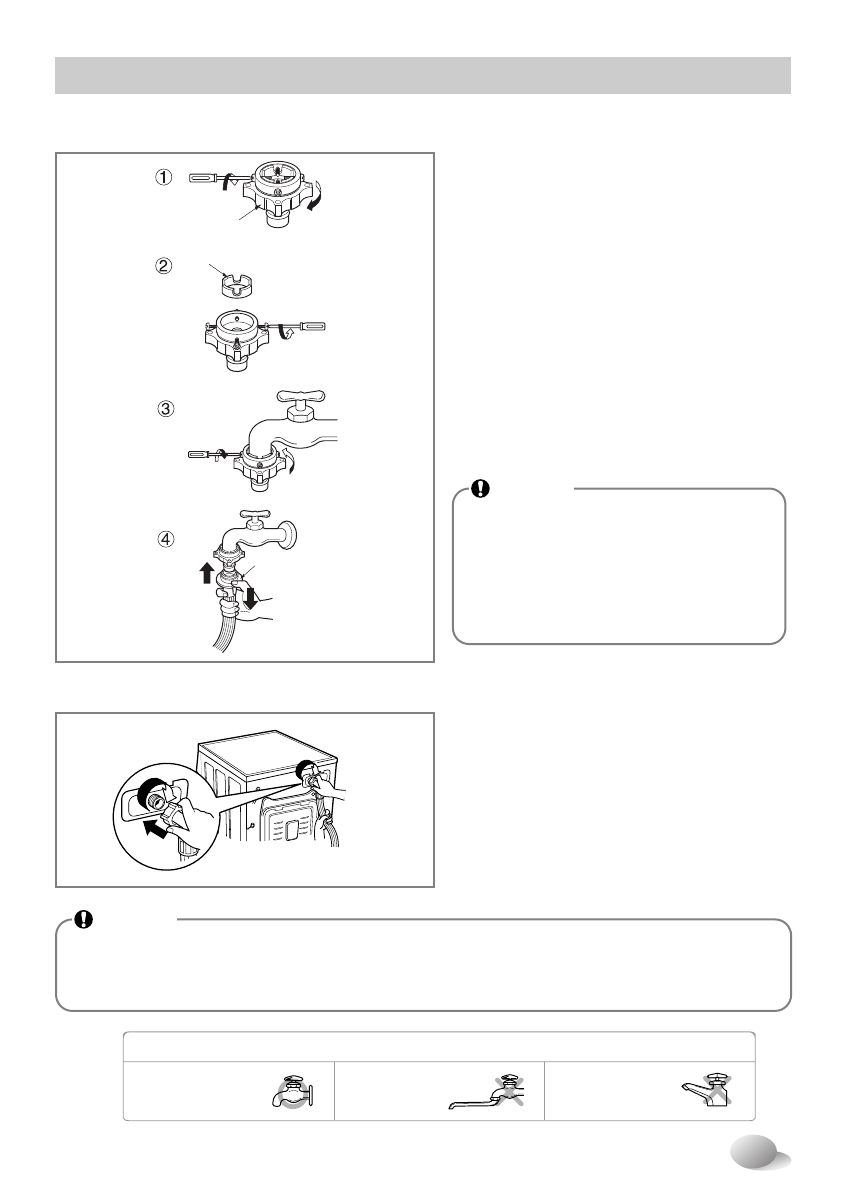

. Unscrew the adapter ring plate and

the 4 adapter retaining screws.

2

. Remove the guide plate if the tap is

too large to fit the adapter.

3

. Push the adapter onto the end of

the tap so that the rubber seal forms
a watertight connection.
Tighten the adapter ring plate and
the 4 screws.

4

. Pull the connector latch plate down,

push the inlet hose onto the adapter,
and release the connector latch plate.
Make sure the adapter locks into place.

Please use the horizontal tap

Horizontal tap

Extension tap

Square tap

Ring plate

Guide plate

Latch plate

Type-C : Connecting one touch type hose to tap without thread

❿☎

Step3: Connect hose to washer

• Make sure that there are no kinks in the

hose and that they are not crushed.

❿☎

When your washer has two valves.

• The Inlet hose which has red connector is

for the hot water tap.

• If the washer has two valves, the energy is

saved by using hot valve.

Installation

NOTE

• After completing connection, if water leaks from the hose, repeat the same steps.

Use the most conventional type of faucet for water supply. In case the faucet is square or
too big, remove the spacing ring before inserting the faucet into the adaptor.

NOTE

• After connecting inlet hose to water

tap, turn on the water tap to flush
out foreign substances (dirt, sand or
sawdust) in the water lines. Let
water drain into a bucket, and
check the water temperature.
