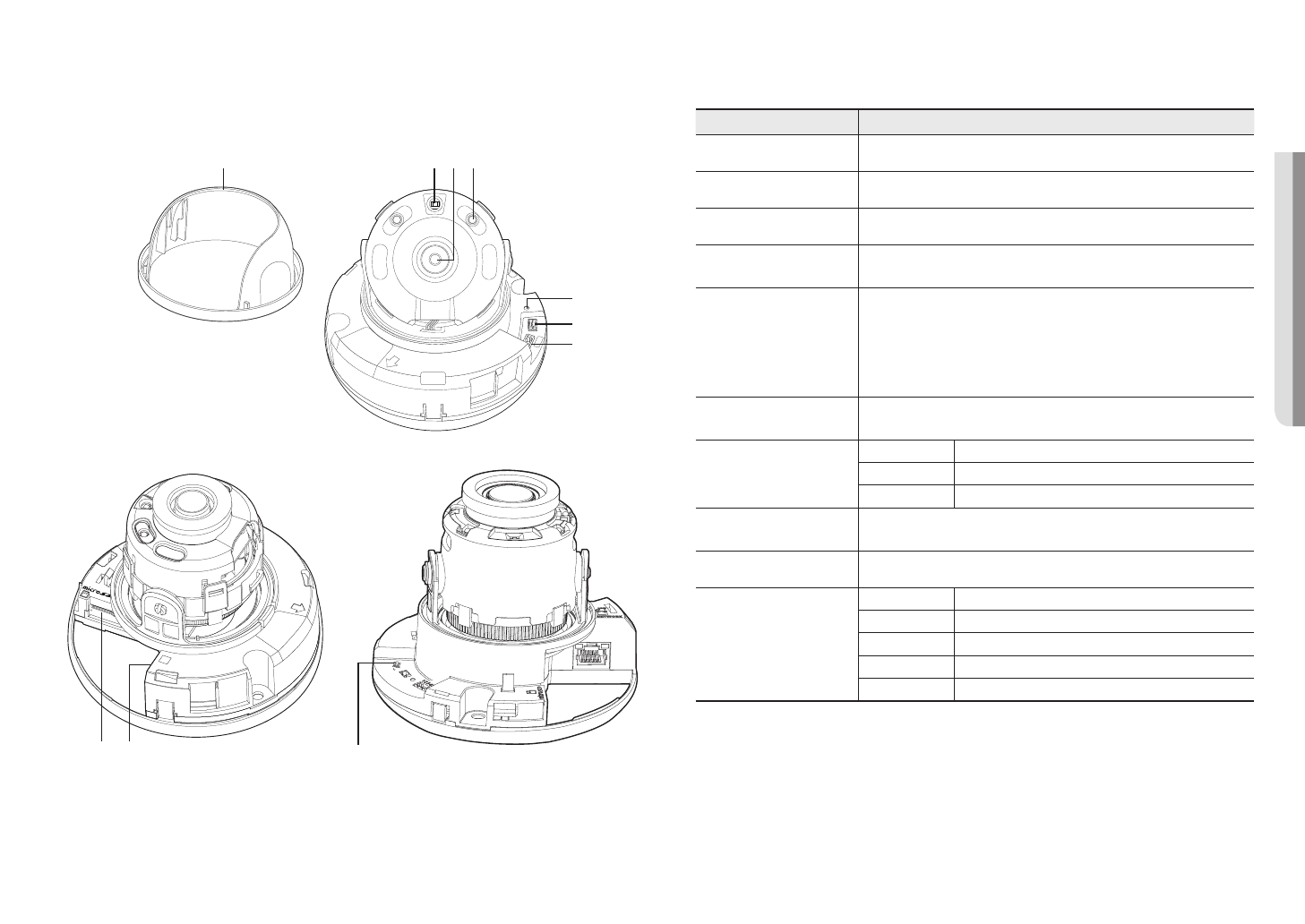

English _9

OVER

VIEW

Components

Item

Description

a

Inside cover

Protective cover for the main body.

b

Illumination Sensor

Detects incoming light to control the IR LED.

c

Lens

Lens for the camera.

d

IR LED

These infrared LED’s are controlled by the illumination sensor.

(The number of LED bulbs may vary depending on the model.)

e

Reset Button

The button restores all camera settings to the factory default.

Press and hold for about 5 seconds to reboot the system.

J



If you reset the camera, the network settings will be adjusted so that DHCP can be

enabled. If there is no DHCP server in the network, you must run the IP Installer

program to change the basic network settings such as IP address, Subnet mask,

Gateway, etc., before you can connect to the network.

f

Test Monitor Out

Output port for test monitoring the video output. Use the test monitor cable to connect to a

mobile display and check the test video.

g

Alarm I/O Port

ARM OUT

Used to connect the alarm output signal.

ARM IN

Used to connect the alarm input sensor or external day/night sensor.

GND

These are common ports to connect alarm input/output signals.

h

Micro SD Memory Card

Compartment

Compartment for the Micro SD memory card.

i

PoE Connector

Connects to the network and supplies power through an Ethernet cable.

j

Zoom/Focus Control Button

T

Zoom in (Tele)

W

Zoom out (Wide)

N

Focusing on a near object (Near)

F

Focusing on a far object (Far)

Focus Control

Press this button for automatic focus control.

NETWORK

ACT  LINK

FRONT

i

h

NETW

ORK

ACT  LINK

FR

ONT

RESET

2.

 ALM IN

1.

ALM OUT

1 2  3

    GND

VIDEO

e

g

f

cd

b

a

j

1,ALARMIN/OUT

2ALAIN

RESET

VIDEO

T

W

AF

N

F

<QND-8080R>
