English _15
●
●
INST
ALLA
TION & CONNECTION

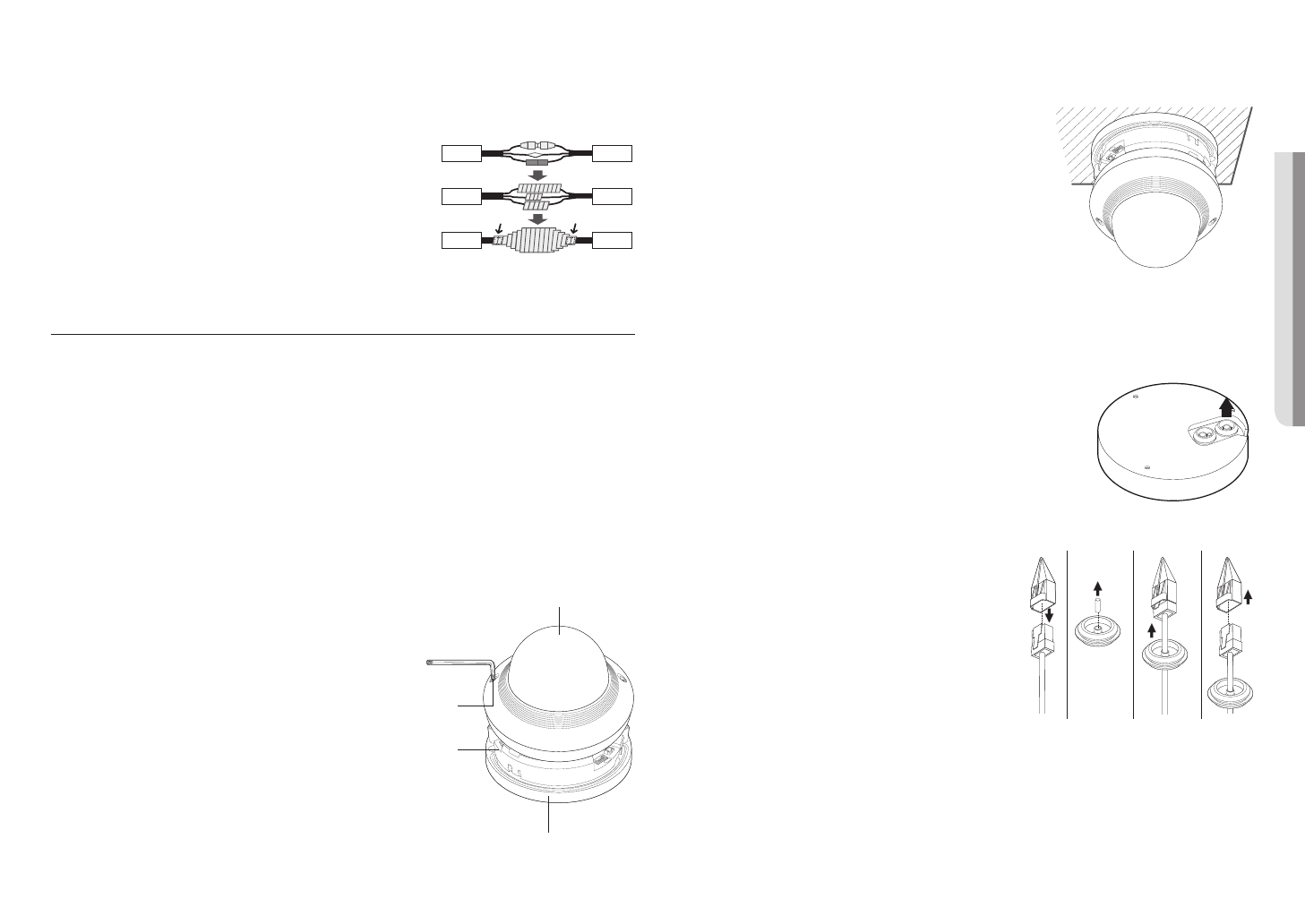

Installation
1.
Using the template provided as an accessory, drill the screw
installation hole(diameter of 6mm, minimal depth of 55mm) and
firmly insert the plastic anchor provided as an accessory to the
end.
2.
Fit the bottom hole to the anchor hole and insert and fix the taping
screw (M4.5xL50).
3.
Connect and arrange the necessary cables lest that they should
be damaged or twisted while installing the camera.
4.
Adjust the lens in a desired direction by referring to the “
Adjusting
the monitoring direction for the camera
” section. (Page 17)
5.
Close the dome cover.
`
Securely fasten the fastening bolt using an L wrench to prevent water from leaking.
Connecting the LAN cable
1.
Remove the dome cover and the case.
2.
Pull out the cable bush on the bottom as shown in the figure.
J
`
Use an appropriate cable bush for the LAN cable to be connected.
-
Basic camera : Use the cable with a diameter of Ø5~6.5.
3.
Pull off the extruded part of the 1-hole bush provided.
4.
Use the cap installer to pass through the LAN cable.
Outdoor installation
When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be
purchased in stores) so that water does not leak from the gap of the cable connected to the outside.
1.
Connect the PoE cable.
2.
Wrap the black cable jacket (Area A) and the cable connection
area with waterproof (butyl rubber) tape so that more than half of
the butyl rubber tape is overlapped.
J
`
If the cable jacket is not waterproofed properly, then it can directly cause
leakage. Make sure to protect the cable with a dense layer of taping.
`
Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.
INSTALLATION (QNV-8010R/8020R/8030R/8080R)
J
`
This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are
recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•
It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera
including the installation bracket.
•
Stuck-in or peeled-off cables can cause damage to the product or a fire.
•
For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
Disassembling
1.
Using the L wrench provided, turn the 2 fastening bolts
on the dome cover counter clockwise to remove the
cover.
Camera
Camera
Camera
System
System
System
A
A
DC12V
.ALM IN
VIDEO
1 2
3
GND
RESET
Dome cover
Camera Case
Bolts
Camera Body
DC12V
2.ALM OUT
.ALM IN
VIDEO
1 2
3
GND
RESET
