ENGLISH

en

12

Use suitable accessories for special work. In this

way, fewer particles enter the environment in an

uncontrolled manner.
Use a suitable extraction unit.
Reduce dust exposure with the following measures:

- do not direct the escaping particles and the

exhaust air stream at yourself or nearby persons

or on dust deposits,

- use an extraction unit and/or air purifiers,

- ensure good ventilation of the workplace and keep

clean using a vacuum cleaner. Sweeping or

blowing stirs up dust.

- Vacuum or wash the protective clothing. Do not

blow, beat or brush.

Transport of li-ion battery packs:

The shipping of li-ion battery pack is subject to laws

related to the carriage of hazardous goods (UN

3480 and UN 3481). Inform yourself of the currently

valid specifications when shipping li-ion battery

packs. If necessary, consult your freight forwarder.

Certified packaging is available from Metabo.
Only send the battery pack if the housing is intact

and no fluid is leaking. Remove the battery pack

from the machine for sending. Prevent the contacts

from short-circuiting (e.g. by protecting them with

adhesive tape).

Illustrations are provided at the beginning of the

operating instructions.

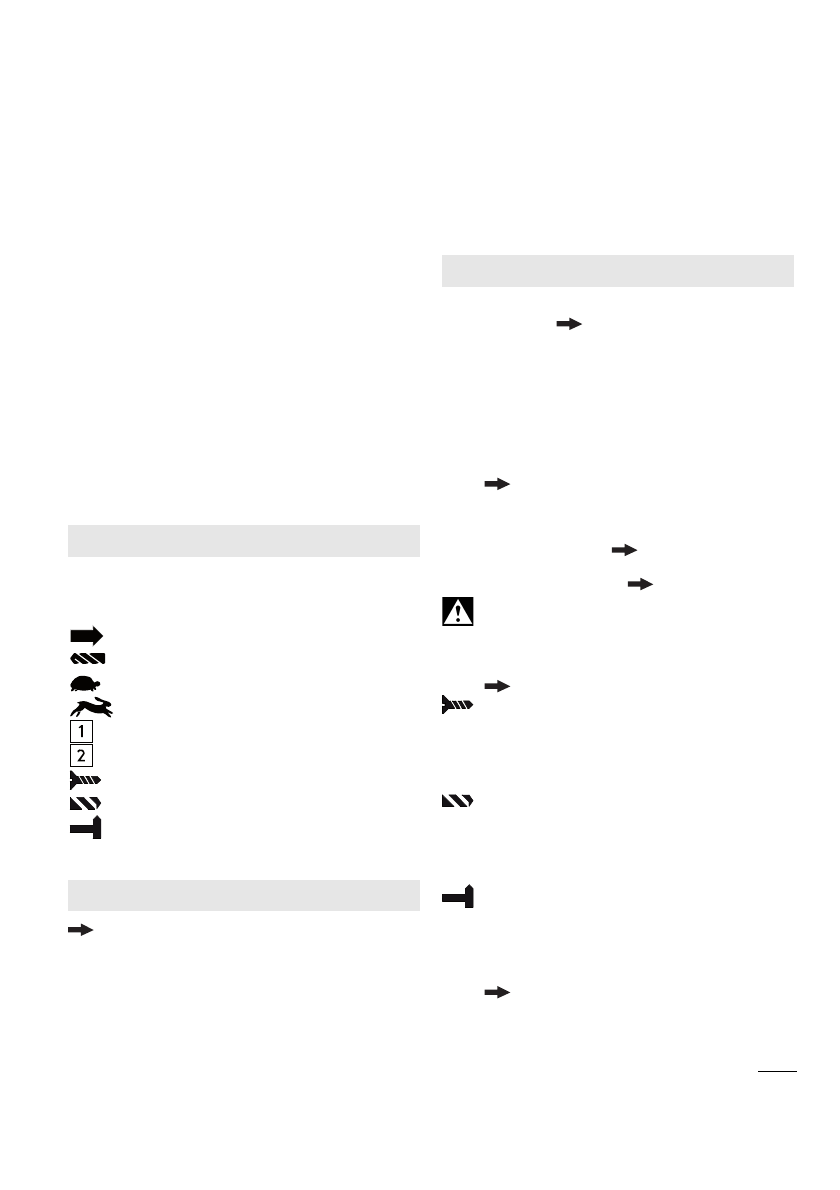

Symbol explanation:

Movement direction
Drill bit
Slow
Fast
First gear
Second gear
Screwdriving / torque limitation
Drilling / max. torque
Impact drilling
Torque

Fig. A

1 Keyless  chuck

2 Adjusting  sleeve

(Torque limitation)

3 Adjusting  sleeve

- Screwdriving / torque limitation

- Drilling / max. torque

- Impact drilling

4 Switch (1st / 2nd gear)

5 Rotation selector switch (rotation setting,

transport lock) - both sides of the machine

6 Bit  depot  *

7 Belt  hook  *

8 Battery pack release button

9 Capacity indicator button

10 Capacity and signal indicator

11 Battery pack

12 LED light

13 Trigger switch

*equipment-specific

7.1 Battery pack, capacity and signal

indicator

Fig. B

Charge the battery pack before use.
Recharge the battery pack if performance dimin-

ishes.
The ideal storage temperature is between 10°C and

30°C.

7.2 Removing and inserting the battery pack

Fig. C

7.3 Setting the direction of rotation,

engaging the transporting safety device

(switch-on lock)

Fig. D

7.4 Selecting the gear

Fig. E

Do not set the switch (4) unless the motor has

stopped completely!

7.5 Setting the torque limitation,

screwdriving, drilling and impact drilling

Fig. F

= Set

screwdriving

 by turning the sleeve

(3)

AND

set the

torque

 (with torque limitation) by

turning the sleeve (2) - intermediate

settings are also possible.

= Set

drilling

 by turning the sleeve (3) (max.

torque, without torque limitation)

To avoid overloading the motor, do not

jam the spindle.

Machines with the designation SB...:

= Set

impact drilling

 by turning the sleeve

(3) (max. torque, without torque limitation)

To avoid overloading the motor, do not

jam the spindle.

7.6 Switching On/Off, setting the speed

Fig. A

Switching on, speed:

 press the trigger switch (13).

Press in the trigger switch to increase the

rotational speed.

Switching off:

 release the trigger switch (13). Note:

the noise that the machine makes when it

switches off is due to the design (quick stop)

and has no influence on the function or the

service life of the machine.

5. Figures

6. Overview

Nm

7. Use
