Residual risks

In spite of the compliance with relevant security means instructions and use of safety devices, some residual risks
cannot be completely eliminated. They are:
– Injuries caused by touching hot or rotating instrument parts or work piece;
– Risk of pinching fingers when changing working tool;
– Damage to health due to vibration appearing at work;

HANDLING INSTRUCTIONS

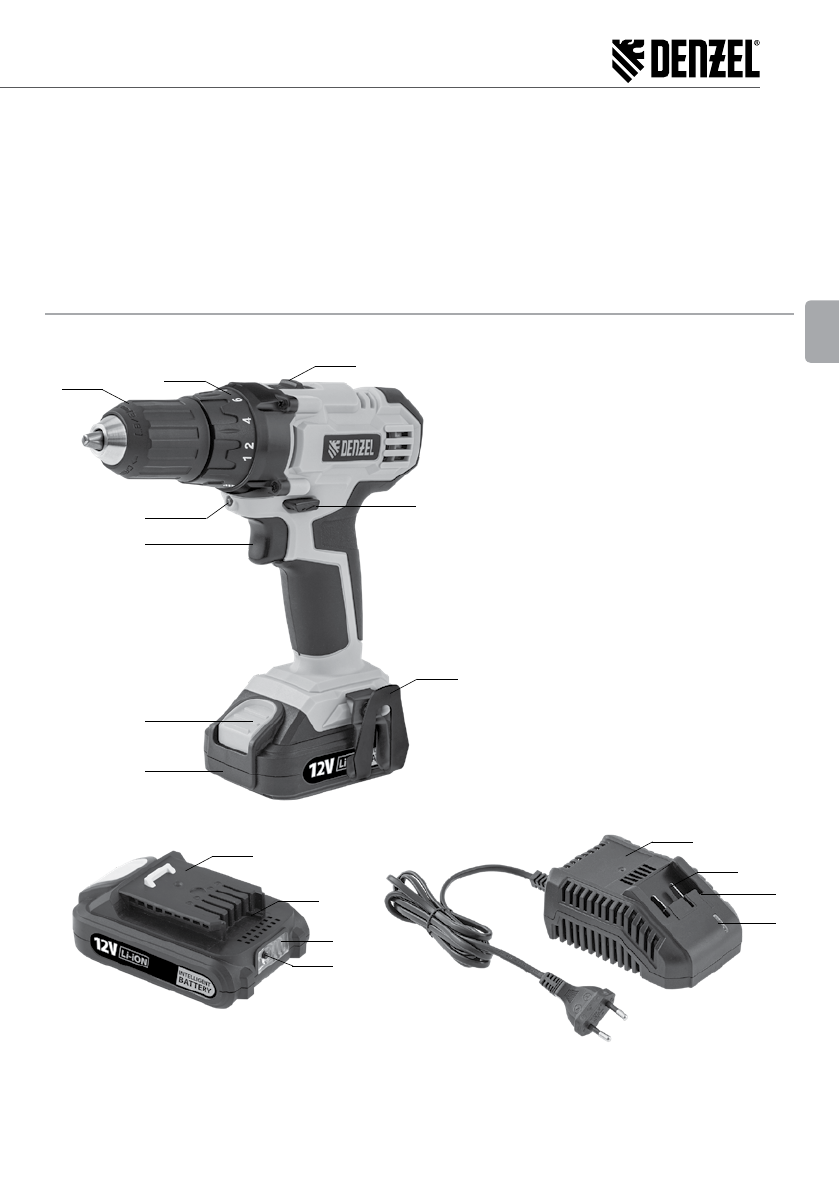

General view of the tool is shown on picture 1.

1. Quick chuck
2. Torque adjustment ring
3. Rotation switch (mode switch)
4. Rotation direction switch
5. Belt hook
6. Rechargeable battery
7. Fixing button of battery
8. Switch
9.  LED working light

(for model CDL-18-02 it is located
at the bottom of the handle)

10. Battery lock key
11. Battery charge indicator button
12. Battery charge indicator
13. Charger
14. Charger contacts
15. Charger lock key
16. Charger indicator

1

9
8

7

6

2

3

5

4

6

10

11

12

13

14

15

16

Pic. 1
