Main Body

Metal Tube

Electric Floor

Head

2-in-1

Upholstery Tool

2-in-1

Upholstery Tool

2-in-1 Crevice

Tool

Charging Base

Handheld

Vacuum

Conductive

Needle

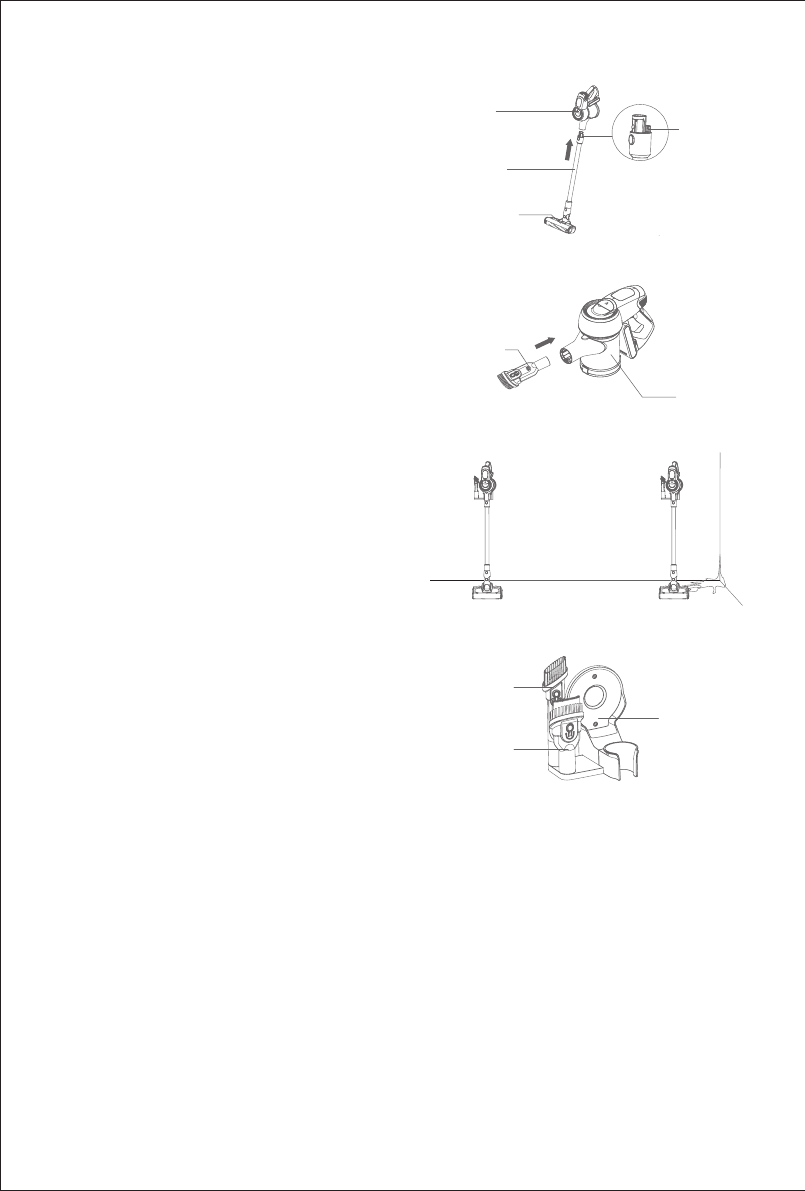

Assemble the electric head floor,

metal tube and handheld vacuum

cleaner

First, assemble the floor head and conductive
metal tube based on the assembling method of
electric floor head and conductive metal tube.
Secondly, align the conductive needle of the
conductive metal tube with the suction mouth
conductive pipe, push upwards until a “click”
sound is heard.(Picture4)

Accessories Assembly

For ease of use, this product is specially
equipped with accessories for the hand-held
vacuum cleaner. The handheld can connect to
different tools for different cleaning purpose.

Connect handheld vacuum cleaner

with 2-in-1 upholstery tool

Insert 2-in-1 upholstery tool connector into
the handheld air inlet until it is tightly fitted.
(Picture5)

Attention:The handheld vacuum cleaner can also connect

the accessories such as: 2-in-1 crevice tool, soft brush

and electric mattress head, the connecting method is the

same as 2-in-1 upholstery tool.

Connecting accessories with charging

base

Please fix the charging base on a clean wall, do
not fix on the wet wall like in the kitchen. After
the task has been competed, place them on the
charging base.(Picture6&7)

4

5

6

（√）

Clean Wall

（

×

）

Wet Wall

7
