Congratulations on your purchase of the Bosch Rely y`y
vacuum cleaner.
This instruction manual describes various Rely y`y mo -
dels, meaning that some of the equipment features
and functions described may not be available on your
model. You should only use original Bosch accessories,
which have been specially developed for your vacuum
cleaner, in order to achieve the best possible vacu-
uming results.

Please keep this instruction manual for future refe -
rence. When passing the vacuum cleaner on to a third
par ty, also pass on this instruction manual.

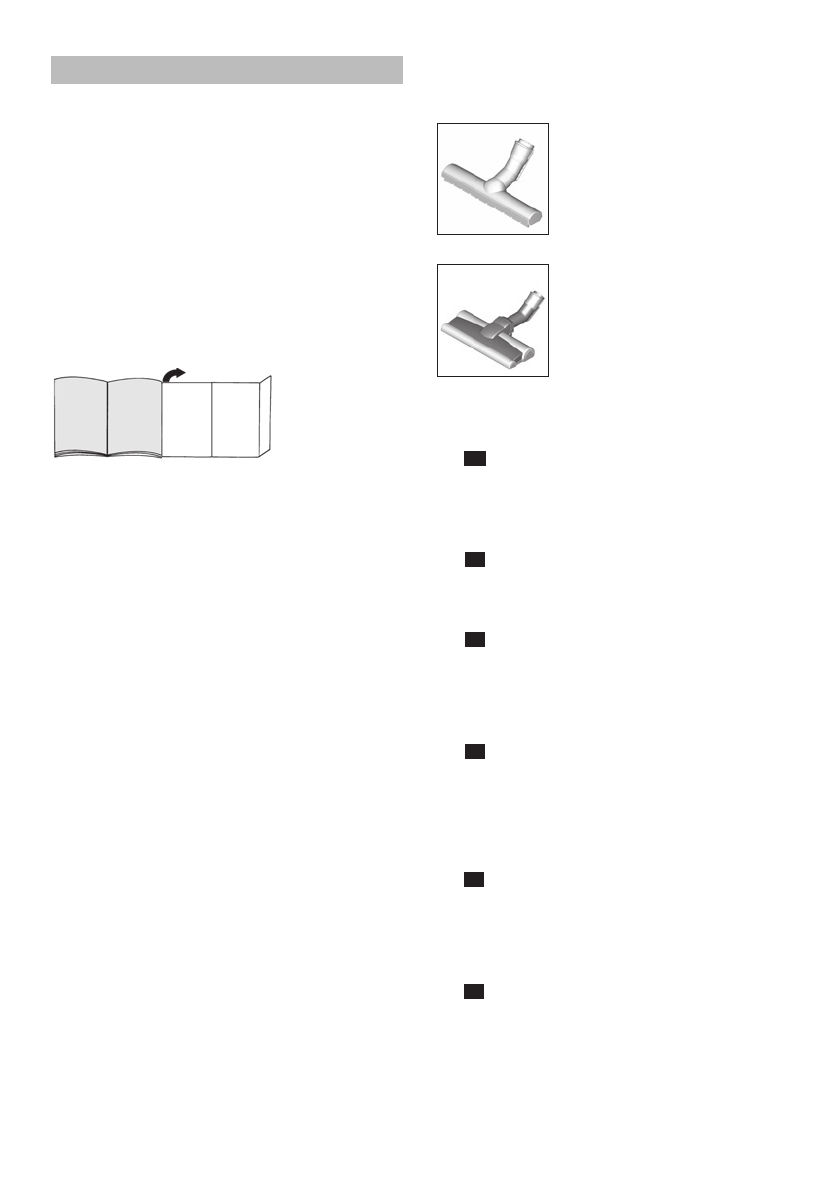

Fold out the picture pages.

Your vacuum cleaner

1  Adjustable floor tool* (For the same functions, the

appearance of the nozzle may differ from the picture)

2  Telescopic tube with sliding switch but without acces-

sory connection*

3  Telescopic tube with adjusting sleeve and accessory

connection*

4 Flexible

hose

5 Handle

6 Foam

filter

7  Parking aid on the back of the appliance

8  Exhaust filter lid

9 Power

cord

10

Appliance lid

11

Foam filter lid

12

On/off button with electronic suction regulator

13  Filter control display (Sensor Control)

14

Dust container with carrying handle

15

Storage aid on the underside of the appliance

16

Fluff filter cover

17

Professional upholstery nozzle*

18

Professional crevice nozzle*

19

Accessories holder*

20 Upholstery nozzle

21

Crevice nozzle

22

Brush ring (for fitting on the upholstery nozzle)*

23

Drill dust nozzle*

24

Hard-floor nozzle*

25

Hard-floor nozzle*

* Dependent on model

Replacement parts and special accesso-

ries

A  Hard-floor nozzle BBZ123HD

For vacuuming hard floors
(parquet, tiles, terracotta, etc.)

B  Hard-floor nozzle BBZ124HD

With 2 rotating brush rollers

For caring for expensive hard floors
and for the improved collection of
coarse dir t.

Before using your appliance for the first
time

Fig.

1

‡

 Push the handle onto the flexible hose and lock it in
place.

Initial use

Fig.

2

‡

 Push the flexible hose adapter into the air intake
opening on the appliance and lock it in place. You
will hear an audible 'click'.

Fig.

3*

a)

 Telescopic tube without accessor y connection:

Push the handle into the telescopic tube.

b)

 Telescopic tube with accessor y connection:

 Push the handle into the telescopic tube until it
locks into place.

Fig.

4*

a)

 Nozzle without accessor y connection:

 Push the telescopic tube into the connecting piece
of the floor nozzle.

b)

 Nozzle with accessor y connection:

 Push the telescopic tube into the connecting piece
of the floor nozzle until it locks in place.

Fig.

5*

‡

 Unlock the telescopic tube by moving the sliding
switch or adjusting sleeve in the direction of the ar-
row, and adjust it to the desired length. The slide
resistance  on  carpet  is  at  its  lowest  when  the  tele-
scopic tube has been completely pulled out.

Fig.

6*

a)

 Place the accessories holder in the required positi-
on on the telescopic tube.

b)

 Use some pressure to inser t the upholster y nozzle
with brush ring and the crevice nozzle into the ac-
cessories holder from above or below.
