12
En
CONNECTIONS
■
Composite video jack <A>
Connect
VIDEO OUT (VIDEO)
jack of this unit to the
video input jack of your AV receiver, and then to that of
your TV using the supplied video pin cable.
■
S-video jack <B>
S-video connections achieve a clearer picture than
composite video connections by transmitting video signals
on separate wires for luminance (Y) and chrominance (C).
Connect
VIDEO OUT (S VIDEO)
jack of this unit to
S-video input jack of your AV receiver, and then to that of
your TV using a commercially available S-video cable.
■
Component video jacks <C>
Component video connections achieve higher fidelity
color reproduction than S-video connections by
transmitting video signals on separate wires for luminance
(Y: green) and chrominance (P
B
: blue, P
R
: red). Connect
VIDEO OUT (COMPONENT)
jacks of this unit to the
component input jacks of your AV receiver, and then to
those of your TV using a commercially available
component cable. Observe the color of each jack when
you make connections.
If your receiver does not have component output jacks,
you can achieve a better video image by connecting the
component output jacks of this unit directly to the
component input jacks of your TV.
■
SCART terminal <D>
(U.K., Europe, and Russia models only)
If your TV has only a terminal for video input, you can
connect the TV directly to this unit.
Connect
AV
terminal of this unit to SCART input terminal
of your TV using a commercially available SCART cable.
• Ensure that the “TV” indication on SCART cable is connected
to the TV set and “DVD” indication on SCART cable is
connected to this unit.
• S-video signal is not output at
AV
terminal. See page 36 for
SCART video setting.

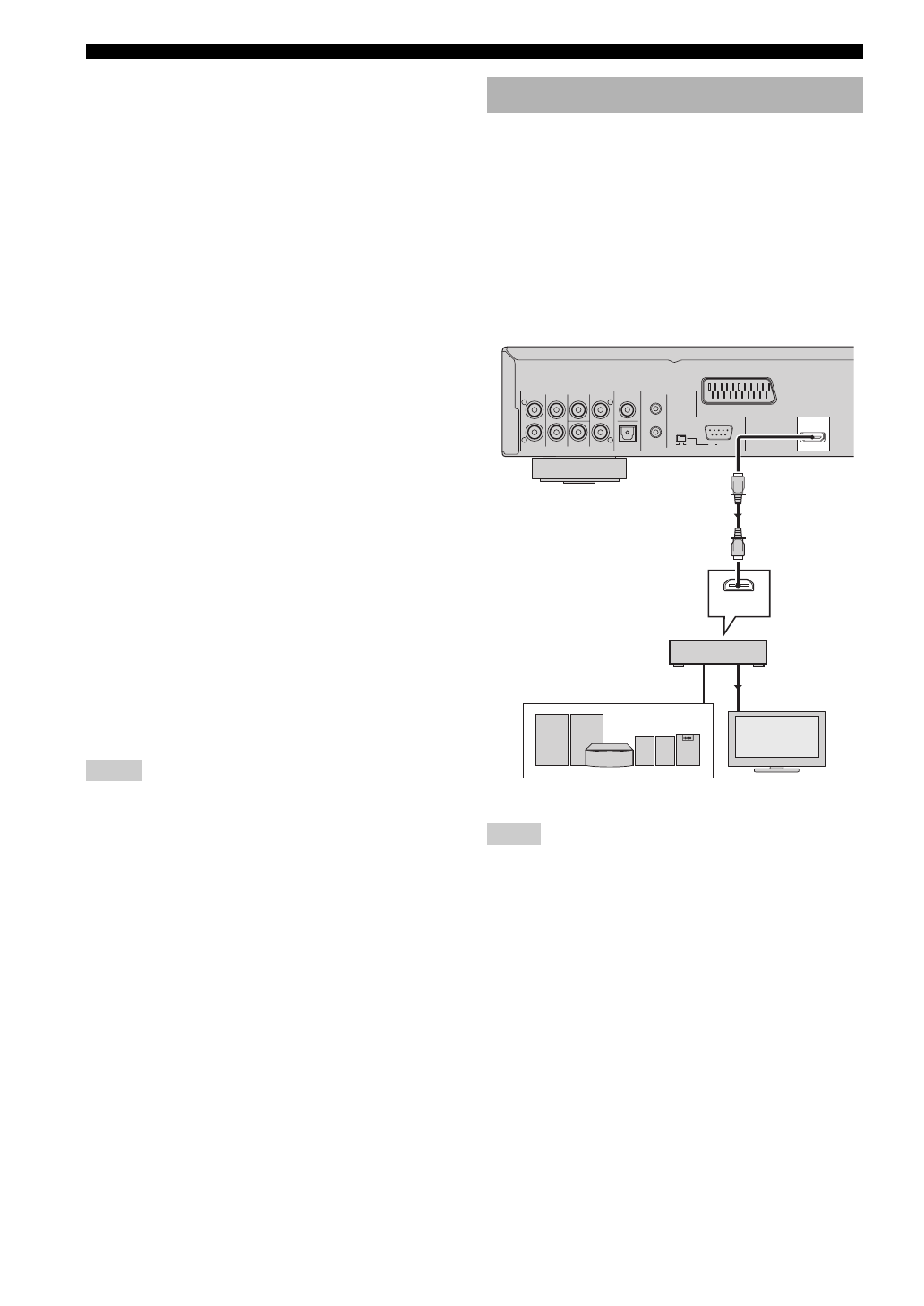

HDMI (High-Definition Multimedia Interface) provides
high quality digital audio and video on a single
connection.
Connect the
HDMI
jack of this unit to an HDMI input jack
of your AV receiver, and then to that of your TV using a
commercially available HDMI cable.
If your receiver does not have an HDMI input jack, you
can achieve a better video image by connecting the
HDMI
jack of this unit directly to the HDMI input jack of your
TV.
• You need to make appropriate audio connections if the
connected component does not input audio signals (see
page 10).
• This unit is not compatible with HDCP-incompatible HDMI or
DVI components.
• You need a commercially available HDMI/DVI conversion
cable when you connect this unit to other DVI components. In
this case, you need to use another audio connection to this
connection because the HDMI jack of this unit does not output
any audio signals.
• Do not disconnect or turn off the power of the HDMI/DVI
component connected to the HDMI jack of this unit while data
is being transferred. Doing so may disrupt playback or cause
noise.
y
When connecting an HDMI component, refer to the manual
supplied with your component.
Notes
HDMI connection
Notes
MIXED 2CH
REMOTE CONTROL
RS 232C
IN
OUT
ON
OFF
AUDIO OUT
FRONT
SUBWOOFER
CENTER
SURROUND
DIGITAL
COAXIAL
OPTICAL
L
R
L
R
AV
HDMI
HDMI
IN
This unit (U.K., Europe, and
Russia models)
AV receiver
Speakers
HDMI OUT
HDMI IN
TV
