4

 En

■

To connect this unit to your amplifier, choose one of the ways listed below.

Caution

  Do not plug in this unit to a wall outlet until all connections are complete.

When the DIGITAL OUT (OPTICAL) terminal
of this unit is used  (

2

)

●

Make the connection from this terminal to the optical
input terminal of an amplifier by using a commercially
available optical cable.
*

Use a reliable optical cable.

●

This terminal can also be connected to the optical input
terminal of an MD recorder etc. to record CD onto MD
directly.

When the DIGITAL OUT (COAXIAL) terminal
of this unit is used  (

3

  )

 (CDX-497 only)

Make the connection from this terminal to the digital input
terminal of an amplifier by using a coaxial cable.

(CDX-497 only)

●

The level of signals output from any of these terminals
into an amplifier can be adjusted by the

OUTPUT LEVEL +/–

 buttons.

●

When using the DIGITAL OUT (OPTICAL or COAXIAL)
terminal, set the level of signals output into an amplifier
to max. by using the

 OUTPUT LEVEL +/–

buttons.

LINE OUT

OPTICAL

COAXIAL

DIGITAL OUT

L

R

CD

DIGITAL  IN

OPTICAL

COAXIAL

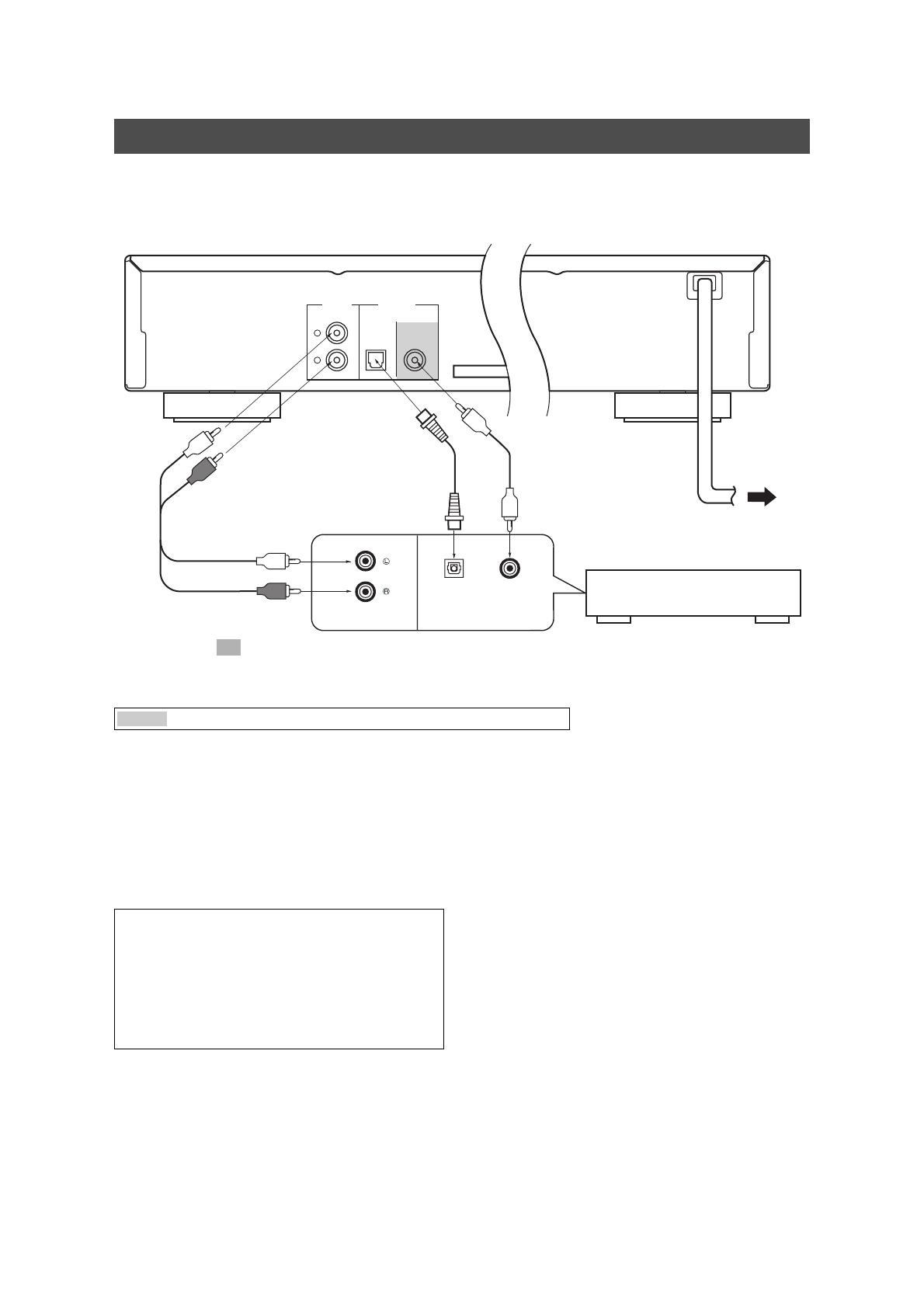

CONNECTIONS

●

Before making any connection, switch OFF the power to
the unit and the amplifier or other component.

●

Connections should be made to the correct input
terminals of the amplifier or another component.

●

If the placement of this unit causes noise to another
equipment, such as a tuner, separate them from each
other.

Amplifier

To AC outlet

The shaded part (         ) is provided for CDX-497 only.

1

Audio pin cable

(included)

Europe and U.K models

When the LINE OUT (analog) terminals of
this unit are used  (

1

)

Connect these terminals to the “CD” (or “AUX”) terminals of
the amplifier.  For details concerning these connections,
refer to the operation instructions of the amplifier being
used.
*

Be sure that the left (“L”) and right (“R”) of these terminals are
connected to the corresponding (left and right) terminals of the
amplifier or another component.

2

Optical cable

(not included)

3

Coaxial cable

(not included)

■

To connect this unit to the AC outlet

After you made all connections, connect the power cable of this unit to the AC outlet.
