Setting up the Player

The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. If this occurs,
position the player away from the TV, VCR, or radio, or
turn off the unit after removing the disc.

DVD Player Connections

Depending on your TV and other equipment there are
various ways you can connect the player. Please refer
to the manuals of your TV, stereo system or other
devices as necessary for additional connection
information.

Video and Audio Connections to Your TV

Make sure the DVD player is connected directly to the
TV and not to a VCR, otherwise the DVD image could
be distorted by the copy protection system.

Video

: Connect the VIDEO OUT jack on the DVD

player to the video in jack on the TV using the
video cable (V).

SCART connection

: Connect the TO TV scart jack

on the DVD Player to the corresponding in jacks on
the TV using the scart cable

(T)

.

Component Video (Color Stream

®

)

: Connect the

COMPONENT VIDEO  OUT/PROGRESSIVE
SCAN jacks on the DVD Player to the
corresponding in jacks on the TV using an Y Pb Pr
cable (C).

Progressive Scan (ColorStream

®

pro)

:

• If your television is a high-definition or
“digital ready” television, you may take
advantage of the DVD Player’s progressive
scan output for the highest video resolution
possible.
• If your TV does not accept the Progressive

Scan format, the picture will appear

scrambled if you try Progressive Scan on

the DVD Player.

Notes:

•

Set the Progressive to “On” on the setup menu for
progressive signal, see page 13.

• Set the progressive to “Off ” by removeing any disc

from the unit and close the disc tray. see that “no
disc” is displayed on the display window. Then press
STOP and hold it for five seconds before releasing it.

• Progressive scan does not work with the analog

video connections (yellow VIDEO OUT jack).

Audio Connection to Your TV:

Connect the left and right AUDIO OUT jacks of the
DVD Player to the audio left and right IN jacks on the
TV (A) using the audio cables. Do not connect the
DVD Player’s AUDIO OUT jack to the phono in jack
(record deck) of your audio system.

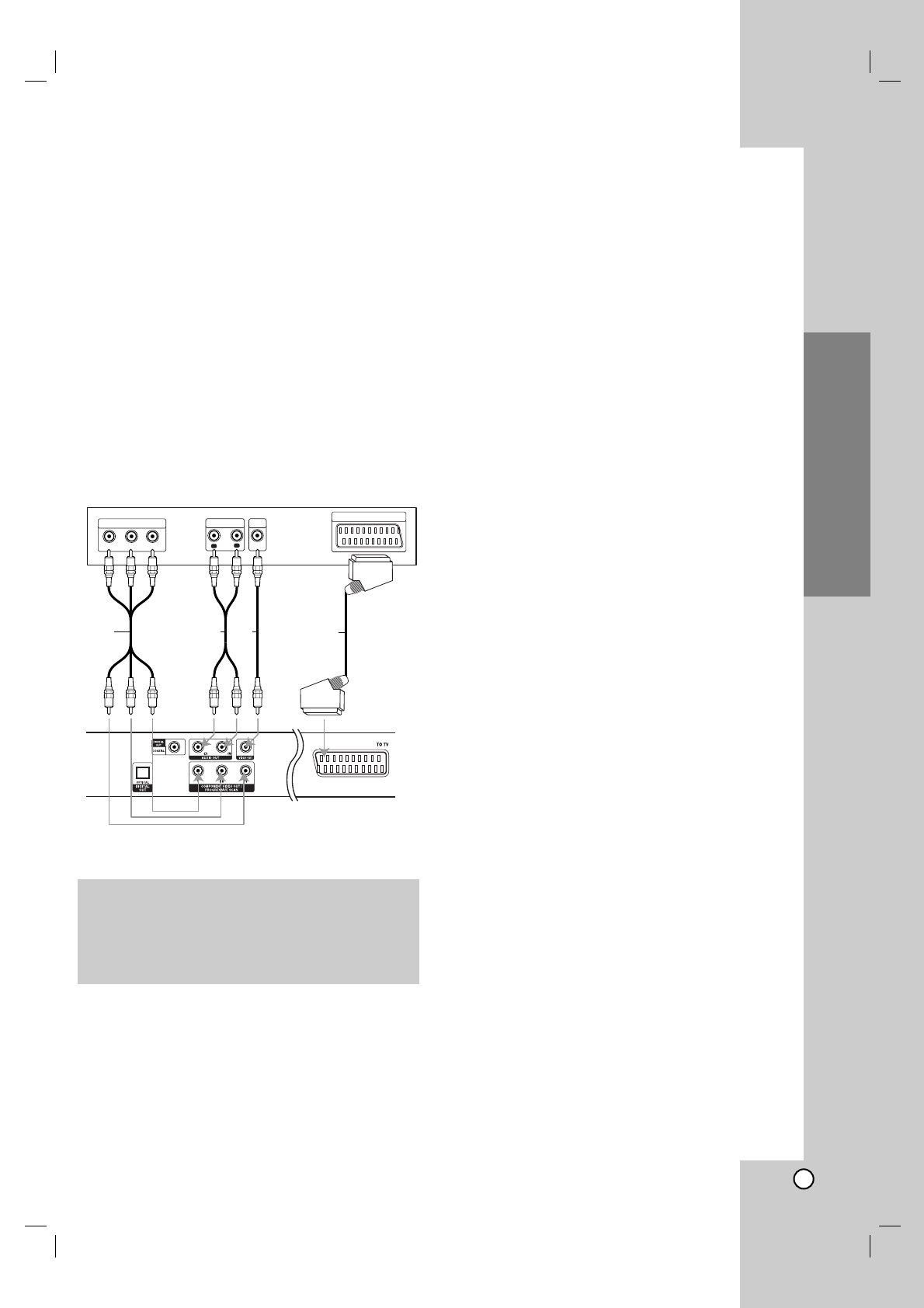

R

L

AUDIO INPUT

VIDEO
INPUT

Y

Pb

Pr

COMPONENT VIDEO /

PROGRESSIVE SCAN INPUT

Rear of TV

Rear of DVD player

A

V

C

SCART INPUT

T

Installation and Setup

Installation and Setup

Caution:

You must set the TV Output Select option to use
COMPONENT VIDEO OUT/PROGRESSIVE SCAN
and SCART jacks.
(See “TV Output Select” on page 13.)
